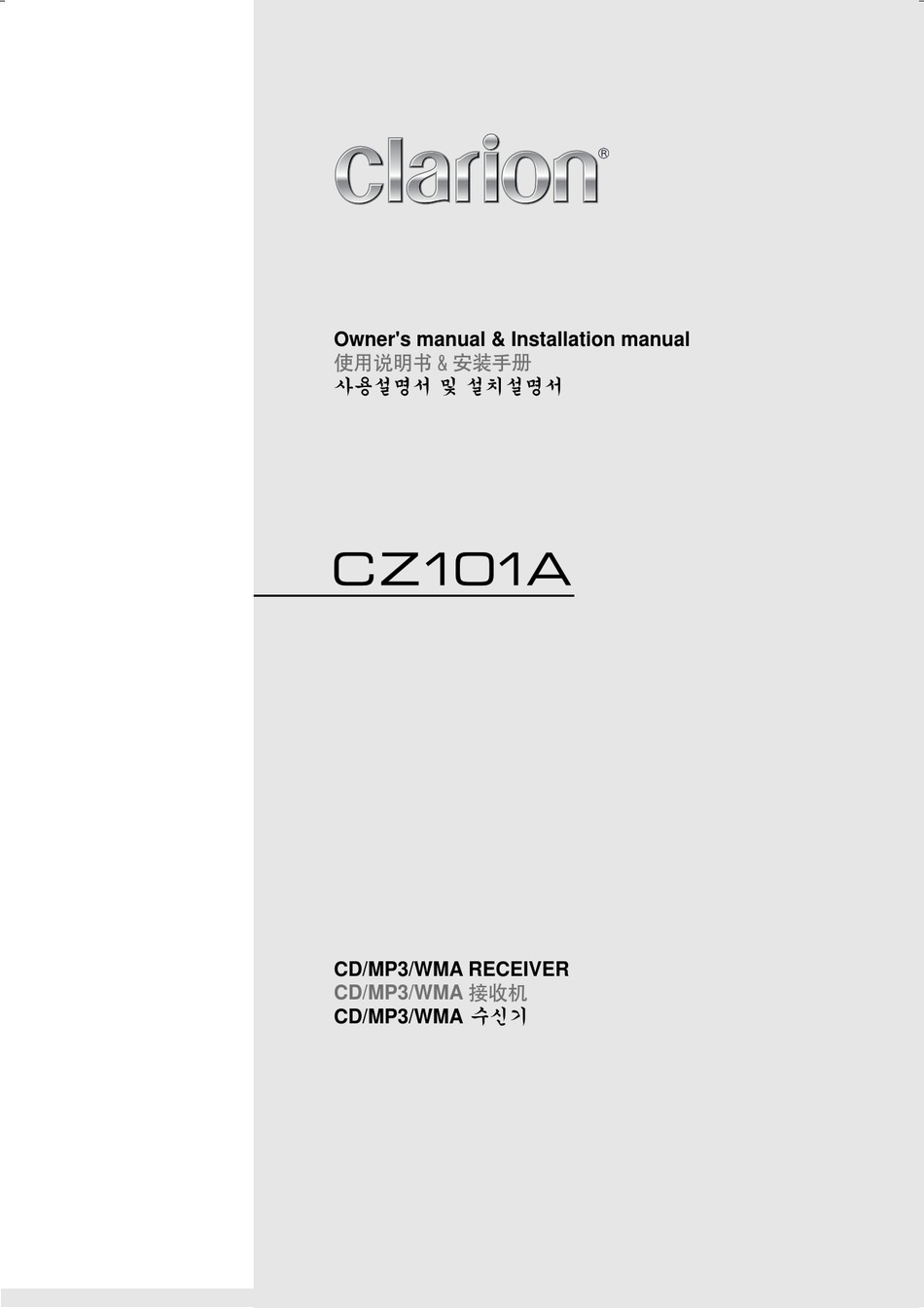

- Page 1 Owner's manual & Installation manual 使用说明书 & 安装手册 사용설명서 및 설치설명서 CD/MP3/WMA RECEIVER CD/MP3/WMA 接收机 CD/MP3/WMA 수신기...
-
Page 2: Table Of Contents
Contents Thank you for purchasing this Clarion product. • Please fully read this owner’s manual before operating this equipment. 1. FEATURES ........................2 2. PRECAUTIONS ......................... 3 Front Panel / Generalities ....................3 Remove the DCP ......................4 Attach the DCP ........................4 3. -
Page 3: Features
1. FEATURES Front Panel 3.5mm Auxiliary Input 2ch/2V RCA Output "BEAT-EQ" with 3 Band Parametric Equalizer & "MAGNA BASS EX" dynamic bass enhancement Expanding Systems Expanding audio features 2 Channel Amplifier Portable Player (Connect by AUX IN Jack) Note: The items listed outside of the frames are the commercial products generally sold. -
Page 4: Precautions
2. PRECAUTIONS WARNING For your safety, the driver should not operate the controls while driving. Also, while driving, keep the volume to a level at which external sounds can be heard. 1. When the inside of the car is very cold and Front Panel / Generalities the player is used soon after switching on the heater, moisture may form on the... -
Page 5: Remove The Dcp
Remove the DCP The control panel can be detached to prevent theft. When detaching the control panel, keep it in the safety place and prevent scratches. W e r e c o m m e n d t a k i n g t h e D C P (DETACHABLE CONTROL PANEL) with you when leaving the car. -
Page 6: Controls
3. CONTROLS Operational Panel [MENU] [PS/AS] Disc Slot [OPEN] [BAND] [VOLUME] [1~6] AUX Jack [SOUND] [ISR] [SRC/ Names of Buttons [SRC / ] Button [VOLUME] Knob • Power / Toggle the audio source • Adjust volume level / Confirm (press) [BAND] Button [ISR] Button •... -
Page 7: Remote Control (Sold By Separately)
Remote Control (Sold by separately) [SRC / ] Button [RPT] Button • Toggle the audio source • Repeat play • Power on / Power off (long press) [MUTE] Button • Mute the volume ] Buttons • Preset station up/down • Previous/next track •... -
Page 8: Handling Discs
4. CAUTIONS ON HANDLING Handling Discs Handling Storage • New discs may have some roughness • Do not expose discs to direct sunlight or around the edges. If such discs are used, any heat source. the player may not work or the sound may •... -
Page 9: Operations
5. OPERATIONS Basic Operations Note: Volume adjustment • Refer to the diagrams in “3. CONTROLS” Turn the [VOLUME] knob on the front panel when reading this chapter. or press the [ ] buttons on the remote control. CAUTION The adjustable range of volume is 0 to 40. When the unit is turned on, starting and stopping the engine with its volume CAUTION... -
Page 10: System Setup
System Setup At all mode, press and hold [D] button to TAG information by press [BAND] button. enter system setup. Press [ ] buttons to select options, rotate the [VOLUME] knob DIMMER: ON/OFF to adjust. Rotate the [VOLUME] knob to choose DIMMER ON or OFF. -
Page 11: Radio Operations
FM3 and AM. FM3 and AM can store During manual tuning, the frequency will be by AS function. Each bands can store 6 changed in steps. stations, CZ101A can store 24 stations in Press the [ ] / [ ] buttons on the total. -
Page 12: Cd/Mp3/Wma Operations
CD/MP3/WMA Operations This unit can play back MP3/WMA byte alphabetical letters and numerals files (including an extension). 3. Do not affix a name to a file inside a folder Notes: having the same name. • If you play a WMA file with active DRM (Digital Rights Management), no audio is Folder structure output. -
Page 13: Pausing Play
CD/MP3/WMA Operations • Discs without the Fast-forward/Fast-reverse mark and TEXT Fast-forward CD-ROMs cannot be played by this unit. • Some CD-R/CD-RW discs may not be Press and hold the [ ] button. Fast-reverse usable. Press and hold the [ ] button. * For MP3/WMA discs, it takes some time until the start of searching and between Pausing play... -
Page 14: Aux Operations
CD/MP3/WMA Operations 3. Press [ 2 ] button repeatedly until “RPT 2. Press [ 2 ] button repeatedly until “RPT OFF” appears on the display to cancel OFF” appears on the LCD to cancel repeat repeat playback, and “RPT” segment goes playback. -
Page 15: Trouble Shooting
6. TROUBLE SHOOTING GENERAL Problem Cause Measure Unit fuse blown. Replace with new fuse of correct rating. Unit can not power on Car battery fuse blown. Replace with new fuse of correct rating. Turn off the power and remove the DCP. Press the [RESET] button with a thin rod. -
Page 16: Error Displays
DISC Player Problem Cause Measure Eject the disc before loading the new Another disc is already loaded. one. Disc cannot be loaded. There is an object install inside Remove the object inside the unit. the unit. Clean the compact disc with a soft cloth. Compact disc is dirty. -
Page 17: Specifications
8. SPECIFICATIONS Dimensions of the Main Unit: FM Tuner 188mm Width × 58mm Height × 190mm Depth Frequency range: 87.5-108.0MHz Weight of the Main Unit: 1.30kg Usable sensitivity: 8dBμ Frequency response: 30Hz-15kHz Stereo separation: 30dB(1kHz) Signal/noise ratio: >55dB AM Tuner Frequency range: 531-1629kHz Usable sensitivity (S/N=20dB): 30dBμ... -
Page 18: Installation / Wire Connection Guide
For tough dirt, drop anything into the unit during apply a little cold or warm water to a installation, consult your dealer or an authorized soft cloth and wipe off the dirt gently. service center. Clarion... -
Page 19: Cautions On Installation
Notes: 1. Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2. Fasten the front stopper securely to prevent the source unit from coming loose. • Console opening dimensions (182 mm) -
Page 20: Unit Installation
Notes of installation positive pole first and then the negative pole. 1. Before installation, please make sure 7. DO NOT block the cooling fan exit to proper connections are conducted and ensure sufficient heating dissipation of this the unit operates normally. Improper unit, or it may result in damage to this unit. -
Page 21: Removing The Source Unit
6) Removing the Source Unit Method B Disassemble trim ring 1. Push the trim ring to right and pull out the right part. M5x6 2. Push the trim ring to left and pull out the left part. Dashboard Mounting Frame 1. -
Page 22: Wiring And Connections
7) Wiring and Connections White Black Rear audio output (Left) / Subwoofer output 1 Black Rear audio output (Right) / Subwoofer output 2 2 Channel Amplifier Fuse 15A Antenna (Black) Refer to next page... -
Page 23: Connecting The Accessories
16-Pin Connector Extension Lead (attached to the source unit) Gray Front Right Brown wire (Phone mute lead) Gray/Black Connect to cellular phone mute lead. White Front Left White/Black Yellow wire (Memory back-up lead) Purple Connect directly to battery Rear Right Purple/Black Green Red wire (Power lead) - Page 24 Clarion Co., Ltd. All Rights Reserved. Copyright © 2010: Clarion Co., Ltd. Printed in China PN: 127075002855...
