Cradlepoint IBR600 Product Manual page 77

IBR600| USER MANUAL Firmware ver. 4.0.2
CRADLEPOINT

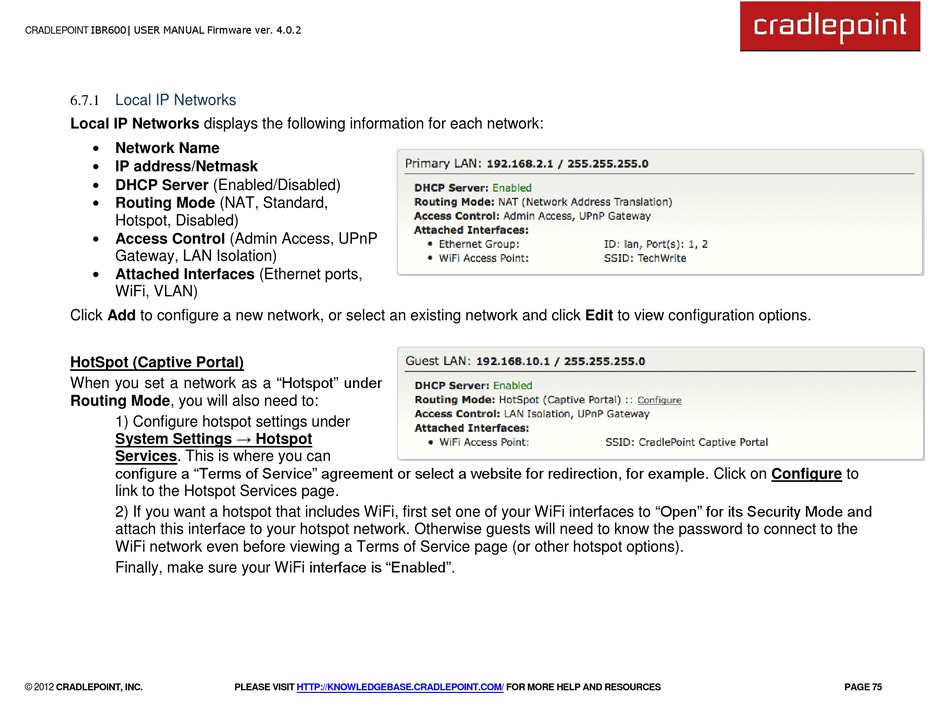

Local IP Networks
6.7.1
Local IP Networks displays the following information for each network:
 Network Name
 IP address/Netmask
 DHCP Server (Enabled/Disabled)
 Routing Mode (NAT, Standard,
Hotspot, Disabled)
 Access Control (Admin Access, UPnP
Gateway, LAN Isolation)
 Attached Interfaces (Ethernet ports,
WiFi, VLAN)
Click Add to configure a new network, or select an existing network and click Edit to view configuration options.
HotSpot (Captive Portal)
When you set a network as a "Hotspot" under
Routing Mode, you will also need to:
1) Configure hotspot settings under
System Settings → Hotspot
Services. This is where you can
configure a "Terms of Service" agreement or select a website for redirection, for example. Click on Configure to
link to the Hotspot Services page.
2) If you want a hotspot that includes WiFi, first set one of your WiFi interfaces to "Open" for its Security Mode and
attach this interface to your hotspot network. Otherwise guests will need to know the password to connect to the
WiFi network even before viewing a Terms of Service page (or other hotspot options).
Finally, make sure your WiFi interface is "Enabled".
© 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 75
