Cradlepoint CBR400 Quick Start Manual

QUICK START GUIDE

CBR400

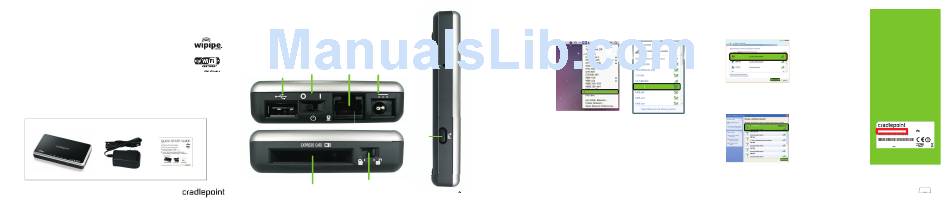

SETTING UP THE ROUTER
1 ) Plug the power supply into an electrical outlet.
2 ) Connect the power supply to the CBR400.
Ensure power is switched on. o = OFF | = ON
3 )
Connect a: USB or ExpressCard Wireless Broadband Data Modem
with Active Subscription, or a Cable, DSL, Satellite, T1, T3, Ethernet Modem .
What's In The Box
AC Power Supply Quick Start Guide

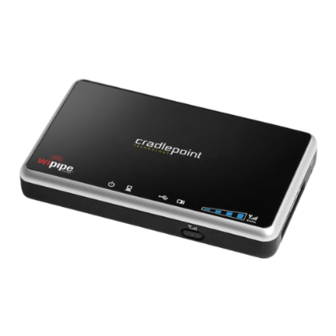

Compact Broadband Router
www.cradlepoint.com/cbr400
for more information about your product, visit:
PORTS & SWITCHES
ETHERNET CONNECTION
COMPUTERS
or LOCAL DEVICES
( LAN )
default
CABLE/DSL
RESET
3G/4G
MODEM
POWER
MODEM SLOT POWER 12 VDC
OFF/ON ( WAN )
(USB)
MODEM
SIGNAL
STRENGTH
EXPRESS CARD
EXPRESS CARD LOCK
CONNECTING YOUR COMPUTER
MAC OSX WINDOWS 7
After you connect your modem
to the router, you're now ready
to connect to the CradlePoint
CBR400 WiFi.
Internal 802.11n antennas
provide up to 500 feet of range
from the CradlePoint router to
your connected computers or
CBR400-xxx
CBR400-xxx
WiFi-enabled devices.
Find your operating system and
follow the connection steps.
1) Open your wireless connection list 1) Click the NETWORK CONNECTION
Find your default password
by clicking the AIRPORT wireless
on the bottom of your router icon on your menu bar
( last 8 characters of your
You'll see a list of available wireless You'll see a list of available wireless
MAC Address ). networks
networks
2) Click on the CBR400-xxx
2) Click CBR400-xxx
NOTE: If you are asked for an
3) Enter Default Password
3) Click CONNECT
"8-digit PIN", click CONNECT
USING A SECURITY KEY and
4) Enter Default Password
enter your eight character
5) Click OK
default password found on
the bottom of your router.
2
WINDOWS VISTA
1) Click START
2) Hover over CONNECT TO
3) Click WIRELESS NETWORK
CBR400-xxx
CONNECTION
You'll see a list of available
wireless networks
4) Click CBR400-xxx
NOTE: If you are asked for an "8-digit PIN", 5) Enter Default Password
see note on page 3.
6) Click CONNECT
WINDOWS XP
1) Click START
2) Hover over CONNECT TO
icon in the lower right hand corner
CBR400-xxx
3) Click WIRELESS NETWORK
taskbar.
CONNECTION
You'll see a list of available
wireless networks
4) Click CBR400-xxx
5) Enter Default Password
6) Click CONNECT
www.cradlepoint.com/cbr400
For additional information, visit:
© 2011 CradlePoint, Inc. All rights reserved. CradlePoint is not responsible for omissions or errors in typography or photography. CradlePoint, WiPipe™,
3
and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are property of their respective owners.
FINDING
YOUR
PASSWORD
Your unique default password
is shown on the product label
on the bottom of your router.
It's the last eight characters
of the MAC Address .
You will be asked for this
password when you connect a
new device to the WiFi network
or log into the administration
pages.
The default password provides
WiFi security out-of-the-box.
Part No.: CBR400
H/W ver.: 1.0
www.cradlepoint.com
MAC Address : 0030440aec87
FCC ID: UXX-CTR550
IC: 6921A-CTR550
Model: CTR550
Serial #: MM100096300005
SSID: CBR400-c87
MFG DATE: JAN 2011 RoHS
Made in Taiwan 12V 1.5A
dual-stream n
find this label on the bottom of your router
4
170537-001-revB
