Manual Wireless Connection Setup - D-Link DIR-605L User Manual

Section 3 - Configuration

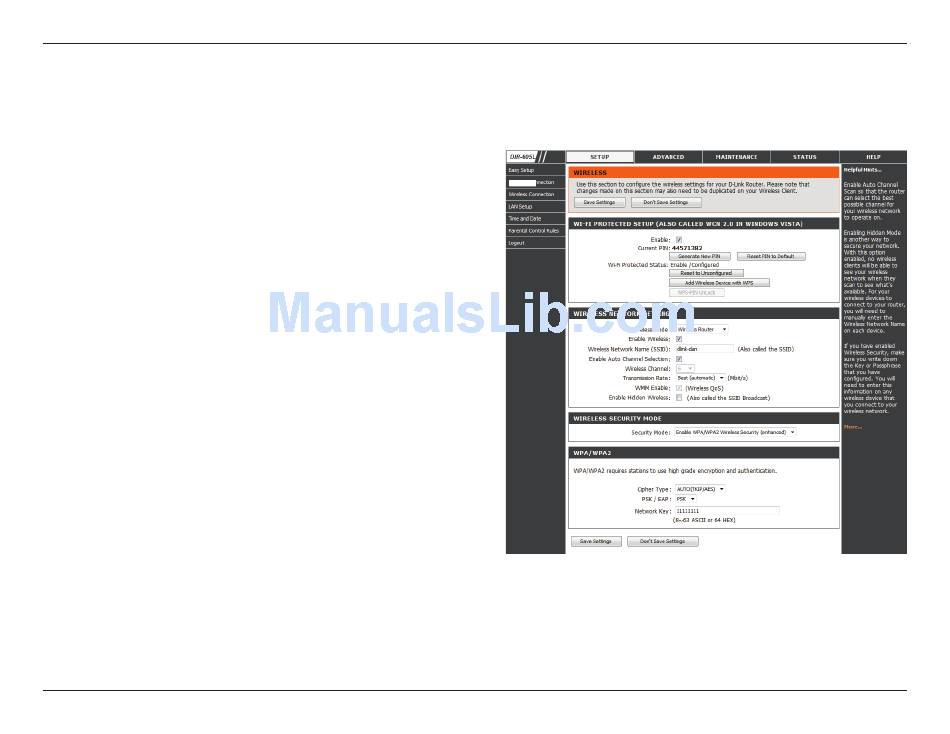

You can configure your specific wireless network settings in this section. Click Save.Settings.to apply them.
Wi-Fi Protected To implement WPS, tick the Enable checkbox. Click either
Generate.New.PIN or Reset.PIN.to.Default, then configure
Setup:
the Wi-Fi settings below. Click Add.Wireless.Device.with.
WPS to connect a WPS-enabled device.
Select between Wireless.Router,.Access.Point,.WDS.Only,.
Wireless Mode:
WDS.+AP,.WDS.+AP.+Router modes.
Enable Wireless:
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all the
wireless functions.
Wireless Network Service Set Identifier (SSID) is the name of your wireless
Name: network. Create a name using up to 32 characters. The SSID
is case-sensitive.
Enable Auto This setting can be selected to allow the DIR-605L to choose
Channel Selection: the channel with the least amount of interference.
Wireless Channel:
Indicates the channel setting for the DIR-605L. By default
the channel is set to 6. The channel can be changed to fit
the channel setting for an existing wireless network or to
customize the wireless network.
Transmission Rate: Use the drop-down menu to select the appropriate
Transmission Rate in Mbits per second. Many users will want
to use the default setting, Best (automatic).
WMM Enable: Enable Wi-Fi Multimedia to enjoy basic quality of service
features. WMM prioritizes traffic according to four access
categories: voice, video, best effort, and background.
D-Link DIR-605L User Manual

Manual Wireless Connection Setup

DIR-605L
26
