D-Link DIR-605L Quick Install Manual

Wireless N300
Cloud Router
DIR-605L
Package Contents

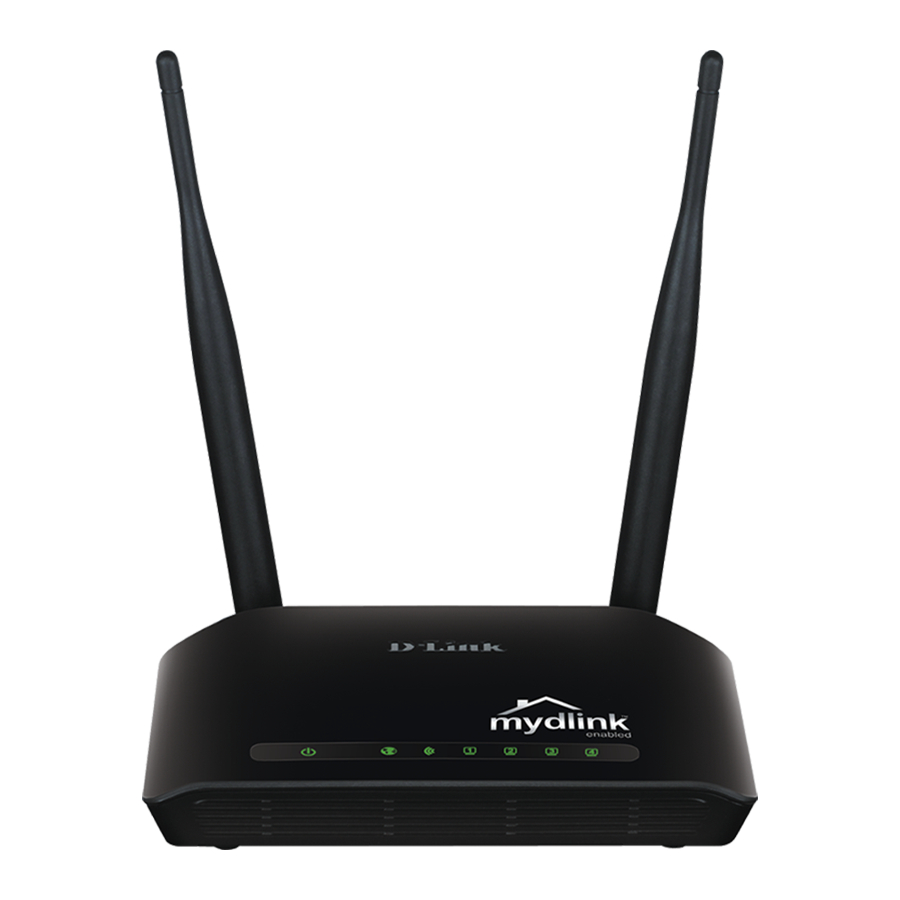

DIR-605L Wireless N300 Cloud Router
Power Adapter
Ethernet Cable
Quick Install Guide
If any of the above items are missing, please contact your reseller.
Hardware Overview
6
7 8 9 10
1 3 5
2 4
A solid green light indicates a proper connection to the
1
Power LED
power supply.
A solid green light indicates a proper connection to
2 Internet LED your broadband modem. The light will blink during data
transmission.
3 WPS LED The light will blink during the WPS process.
A solid green light indicates that the wireless segment is
4 Wireless LED
ready. The light will blink during data transmission.
A solid green light indicates a connection to an Ethernet
5 LAN LEDs (1-4)
device. The LED will blink during data transmission.
6 WPS Button Press to start the WPS process. The WPS LED will start to blink.
Connect Ethernet devices such as computers, switches,
7 LAN Ports (1-4)
and game consoles.
Connect your broadband modem to this port using an
8 Internet Port
Ethernet cable.
9 Power Port Connect the supplied power adapter.
Press and hold the reset button with a paper clip for six
10 Reset Button
seconds to reset the router to the factory default settings.
Minimum Requirements
Network Requirements:
• An Ethernet-based broadband modem
Web-based Configuration Requirements:
Computer with the following:
• Windows® or Mac OS® X operating system
• An installed Ethernet adapter or wireless adapter
Supported Browsers:
• Internet Explorer 7 or higher
• Safari 4 or higher
• Chrome
• Firefox
mydlink Requirements:
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Web Browser Requirements:
• Internet Explorer 7 or higher
• Safari 5 or higher
• Chrome
• Firefox
Note: To learn more about mydlink, visit http://www.mydlink.com.
If you experience issues registering this Router with your mydlink account, try
performing a hard reset by using an unfolded paperclip to press and hold the reset
button for 10 seconds while the Router is powered on. This may be necessary if you
have purchased an open box or resold unit.
Before you Start
• Users with DSL providers - If you are using a PPPoE connection, you will need
your PPPoE user name and password. If you do not have this information, contact
your Internet provider. Do not proceed until you have this information.
• Users with Cable providers - Make sure you unplug the power to your modem.
In some cases, you may need to turn it off for up to 5 minutes.
• Advanced Users - If your ISP provided you with a modem/router combo, you will
need to set it to "bridge" mode so the DIR-605L router can work properly. Please
contact your ISP or refer to the user manual for your modem/router device.
Connect your Router
1
Unplug the power to your DSL or Cable modem.
Modem
Connect an Ethernet cable from the Internet port of the router to the
2
Ethernet port on your DSL or Cable modem.
Ethernet Cable
Ethernet Port
DIR-605L
4
T Internet Port
R RESET
4 3 LAN 2 1 INTERNET 5V 1A
Modem
Connect another Ethernet cable from the Ethernet port on your computer
3
to one of the LAN ports on the router.
Computer
Ethernet Cable
RESET
4 3 LAN 2 1 INTERNET 5V 1A
DIR-605L
Plug the power back into your DSL or cable modem. Please wait about one
4
minute before continuing.
Computer
RESET
4 3 LAN 2 1 INTERNET 5V 1A
DIR-605L
Modem
5 Plug the power adapter into your router and connect to an available power
outlet or surge protector.
Computer
RESET
4 3 LAN 2 1 INTERNET 5V 1A
DIR-605L
Modem
After the router has powered up, verify that the Power and Internet LEDs are
6
both lit then continue with the Configuration section on the other side.
