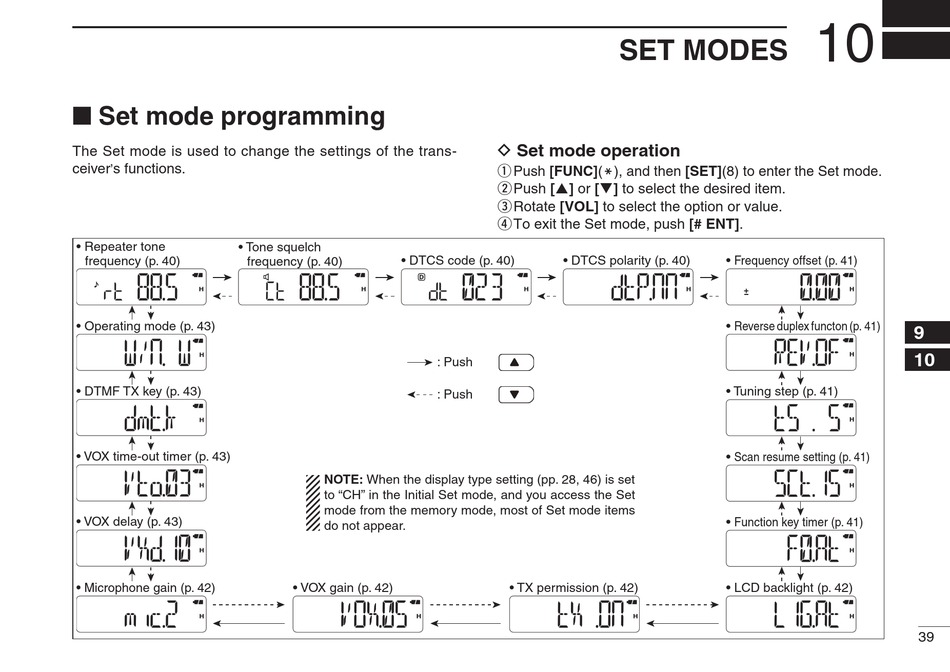

■ Set mode programming

The Set mode is used to change the settings of the trans-
ceiver s functions.
'
• Repeater tone • Tone squelch
frequency (p. 40)
frequency (p. 40)
• Operating mode (p. 43)
• DTMF TX key (p. 43)
• VOX time-out timer (p. 43)
• VOX delay (p. 43)
• Microphone gain (p. 42)
• DTCS code (p. 40)
: Push
: Push
NOTE: When the display type setting (pp. 28, 46) is set
to "CH" in the Initial Set mode, and you access the Set
mode from the memory mode, most of Set mode items
do not appear.
• VOX gain (p. 42)

SET MODES

D Set mode operation
q Push [FUNC](M), and then [SET](8) to enter the Set mode.
w Push [p] or [q] to select the desired item.
e Rotate [VOL] to select the option or value.
r To exit the Set mode, push [# ENT].
• DTCS polarity (p. 40)
• TX permission (p. 42)
10
• Frequency offset (p. 41)
• Reverse duplex functon (p. 41)
• Tuning step (p. 41)
• Scan resume setting (p. 41)
• Function key timer (p. 41)
• LCD backlight (p. 42)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
39
