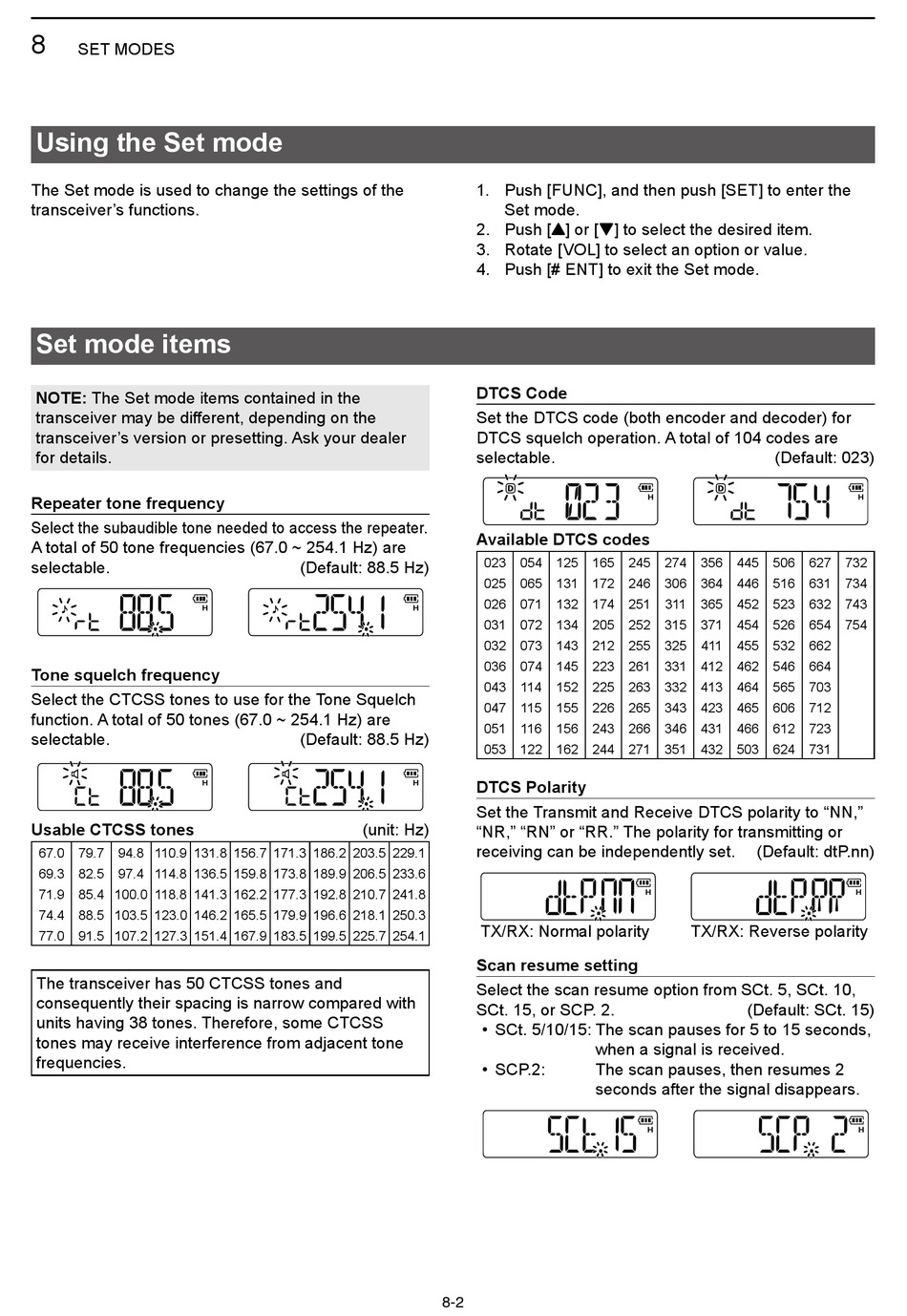

SET MODES

Using the Set mode

The Set mode is used to change the settings of the
transceiver's functions.

Set mode items

NOTE: The Set mode items contained in the
transceiver may be different, depending on the
transceiver's version or presetting. Ask your dealer
for details.

Repeater tone frequency

Select the subaudible tone needed to access the repeater.
A total of 50 tone frequencies (67.0 ~ 254.1 Hz) are
selectable.

Tone squelch frequency

Select the CTCSS tones to use for the Tone Squelch
function. A total of 50 tones (67.0 ~ 254.1 Hz) are
selectable.
Usable CTCSS tones
67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1
69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6
71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8
74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3
77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1
The transceiver has 50 CTCSS tones and
consequently their spacing is narrow compared with
units having 38 tones. Therefore, some CTCSS
tones may receive interference from adjacent tone
frequencies.
(Default: 88.5 Hz)
(Default: 88.5 Hz)
(unit: Hz)
8-2
1. Push [FUNC], and then push [SET] to enter the
Set mode.
2. Push [Y] or [Z] to select the desired item.
3. Rotate [VOL] to select an option or value.
4. Push [# ENT] to exit the Set mode.
DTCS Code
Set the DTCS code (both encoder and decoder) for
DTCS squelch operation. A total of 104 codes are
selectable.
Available DTCS codes
023 054 125 165 245
025 065 131 172 246
026 071 132 174 251
031 072 134 205 252
032 073 143 212 255
036 074 145 223 261
043 114 152 225 263
047 115 155 226 265
051 116 156 243 266
053 122 162 244 271
DTCS Polarity
Set the Transmit and Receive DTCS polarity to "NN,"
"NR," "RN" or "RR." The polarity for transmitting or
receiving can be independently set.
TX/RX: Normal polarity
Scan resume setting
Select the scan resume option from SCt. 5, SCt. 10,
SCt. 15, or SCP. 2.
• SCt. 5/10/15: The scan pauses for 5 to 15 seconds,
when a signal is received.
• SCP.2: The scan pauses, then resumes 2
seconds after the signal disappears.
(Default: 023)
274 356 445 506 627
306 364 446 516 631
311 365 452 523 632
315 371 454 526 654
325 411 455 532 662
331 412 462 546 664
332 413 464 565 703
343 423 465 606 712
346 431 466 612 723
351 432 503 624 731
(Default: dtP.nn)
TX/RX: Reverse polarity
(Default: SCt. 15)
732
734
743
754
