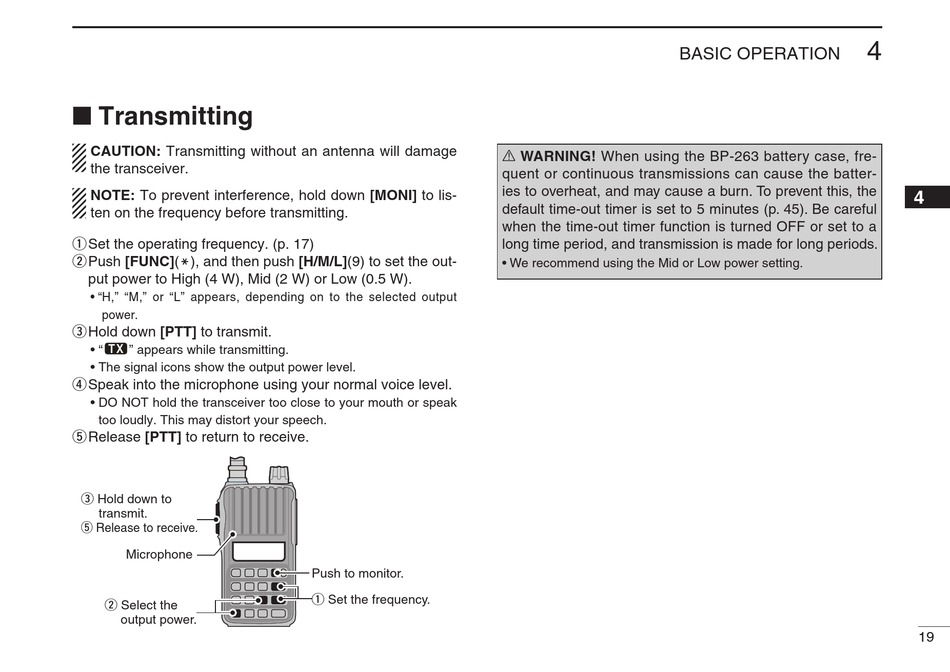

■ Transmitting

CAUTION: Transmitting without an antenna will damage
the transceiver.
NOTE: To prevent interference, hold down [MONI] to lis-
ten on the frequency before transmitting.
q Set the operating frequency. (p. 17)
w Push [FUNC](M), and then push [H/M/L](9) to set the out-
put power to High (4 W), Mid (2 W) or Low (0.5 W).
• " H," "M," or "L" appears, depending on to the selected output
power.
e Hold down [PTT] to transmit.
• " " appears while transmitting.
• The signal icons show the output power level.
r Speak into the microphone using your normal voice level.
• DO NOT hold the transceiver too close to your mouth or speak
too loudly. This may distort your speech.
t Release [PTT] to return to receive.
e Hold down to
transmit.
t Release to receive.
Microphone
w Select the
output power.
Push to monitor.
q Set the frequency.
BASIC OPERATION
R WARNING! When using the BP-263 battery case, fre-
quent or continuous transmissions can cause the batter-
ies to overheat, and may cause a burn. To prevent this, the
default time-out timer is set to 5 minutes (p. 45). Be careful
when the time-out timer function is turned OFF or set to a
long time period, and transmission is made for long periods.
• We recommend using the Mid or Low power setting.
