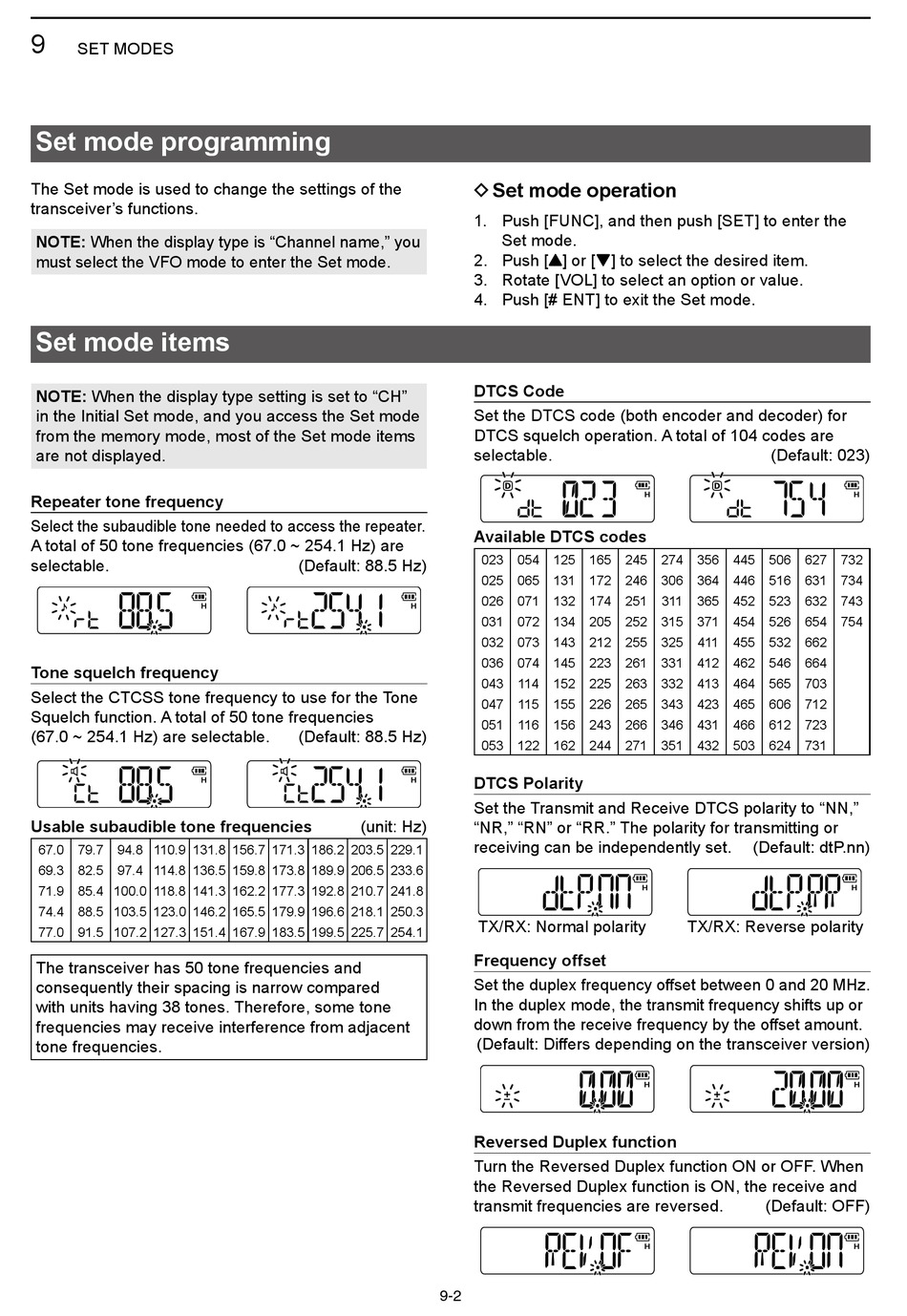

SET MODES

Set mode programming

The Set mode is used to change the settings of the
transceiver's functions.
NOTE: When the display type is "Channel name," you
must select the VFO mode to enter the Set mode.

Set mode items

NOTE: When the display type setting is set to "CH"
in the Initial Set mode, and you access the Set mode
from the memory mode, most of the Set mode items
are not displayed.
Repeater tone frequency
Select the subaudible tone needed to access the repeater.
A total of 50 tone frequencies (67.0 ~ 254.1 Hz) are
selectable.
Tone squelch frequency
Select the CTCSS tone frequency to use for the Tone
Squelch function. A total of 50 tone frequencies
(67.0 ~ 254.1 Hz) are selectable.
Usable subaudible tone frequencies
67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1
69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6
71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8
74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3
77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1
The transceiver has 50 tone frequencies and
consequently their spacing is narrow compared
with units having 38 tones. Therefore, some tone
frequencies may receive interference from adjacent
tone frequencies.
(Default: 88.5 Hz)
(Default: 88.5 Hz)
(unit: Hz)
9-2

D Set mode operation

1. Push [FUNC], and then push [SET] to enter the
Set mode.
2. Push [Y] or [Z] to select the desired item.
3. Rotate [VOL] to select an option or value.
4. Push [# ENT] to exit the Set mode.

DTCS Code

Set the DTCS code (both encoder and decoder) for
DTCS squelch operation. A total of 104 codes are
selectable.
Available DTCS codes
023 054 125 165 245
025 065 131 172 246
026 071 132 174 251
031 072 134 205 252
032 073 143 212 255
036 074 145 223 261
043 114 152 225 263
047 115 155 226 265
051 116 156 243 266
053 122 162 244 271
DTCS Polarity
Set the Transmit and Receive DTCS polarity to "NN,"
"NR," "RN" or "RR." The polarity for transmitting or
receiving can be independently set.
TX/RX: Normal polarity
Frequency offset
Set the duplex frequency offset between 0 and 20 MHz.
In the duplex mode, the transmit frequency shifts up or
down from the receive frequency by the offset amount.
(Default: Differs depending on the transceiver version)
Reversed Duplex function
Turn the Reversed Duplex function ON or OFF. When
the Reversed Duplex function is ON, the receive and
transmit frequencies are reversed.
(Default: 023)
274 356 445 506 627
306 364 446 516 631
311 365 452 523 632
315 371 454 526 654
325 411 455 532 662
331 412 462 546 664
332 413 464 565 703
343 423 465 606 712
346 431 466 612 723
351 432 503 624 731
(Default: dtP.nn)
TX/RX: Reverse polarity
(Default: OFF)
732
734
743
754
