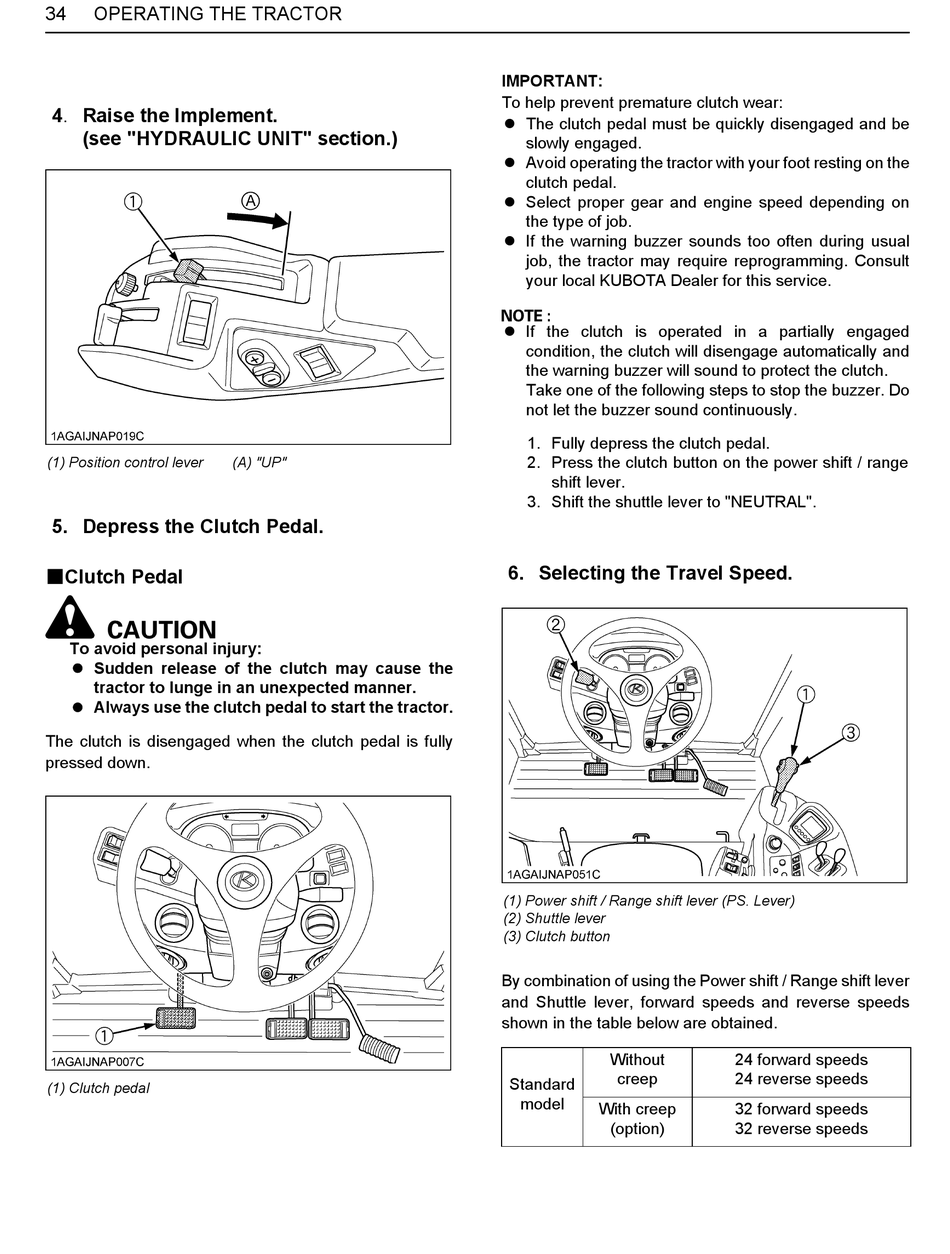

34 OPERATING THE TRACTOR
4. Raise the Implement.
(see "HYDRAULIC UNIT" section.)
(1) Position control lever
5. Depress the Clutch Pedal.
BClutch Pedal
To avoid personal injury:
A Sudden release of the clutch may cause the
tractor to lunge in an unexpected manner.
A Always use the clutch pedal to start the tractor.
The clutch is disengaged when the clutch pedal is fully
pressed down.

(1) Clutch pedal

(A) "UP"
IMPORTANT:
To help prevent premature clutch wear:
A The clutch pedal must be quickly disengaged and be
slowly engaged.
A Avoid operating the tractor with your foot resting on the
clutch pedal.
A Select proper gear and engine speed depending on
the type of job.
A If the warning buzzer sounds too often during usual
job, the tractor may require reprogramming. Consult
your local KUBOTA Dealer for this service.
A If the clutch is operated in a partially engaged
condition, the clutch will disengage automatically and
the warning buzzer will sound to protect the clutch.
Take one of the following steps to stop the buzzer. Do
not let the buzzer sound continuously.
1. Fully depress the clutch pedal.
2. Press the clutch button on the power shift / range
shift lever.
3. Shift the shuttle lever to "NEUTRAL".
6. Selecting the Travel Speed.
(1) Power shift / Range shift lever (PS. Lever)
(2) Shuttle lever
(3) Clutch button
By combination of using the Power shift / Range shift lever
and Shuttle lever, forward speeds and reverse speeds
shown in the table below are obtained.
Without
creep
Standard
model
With creep
(option)
24 forward speeds
24 reverse speeds
32 forward speeds
32 reverse speeds
