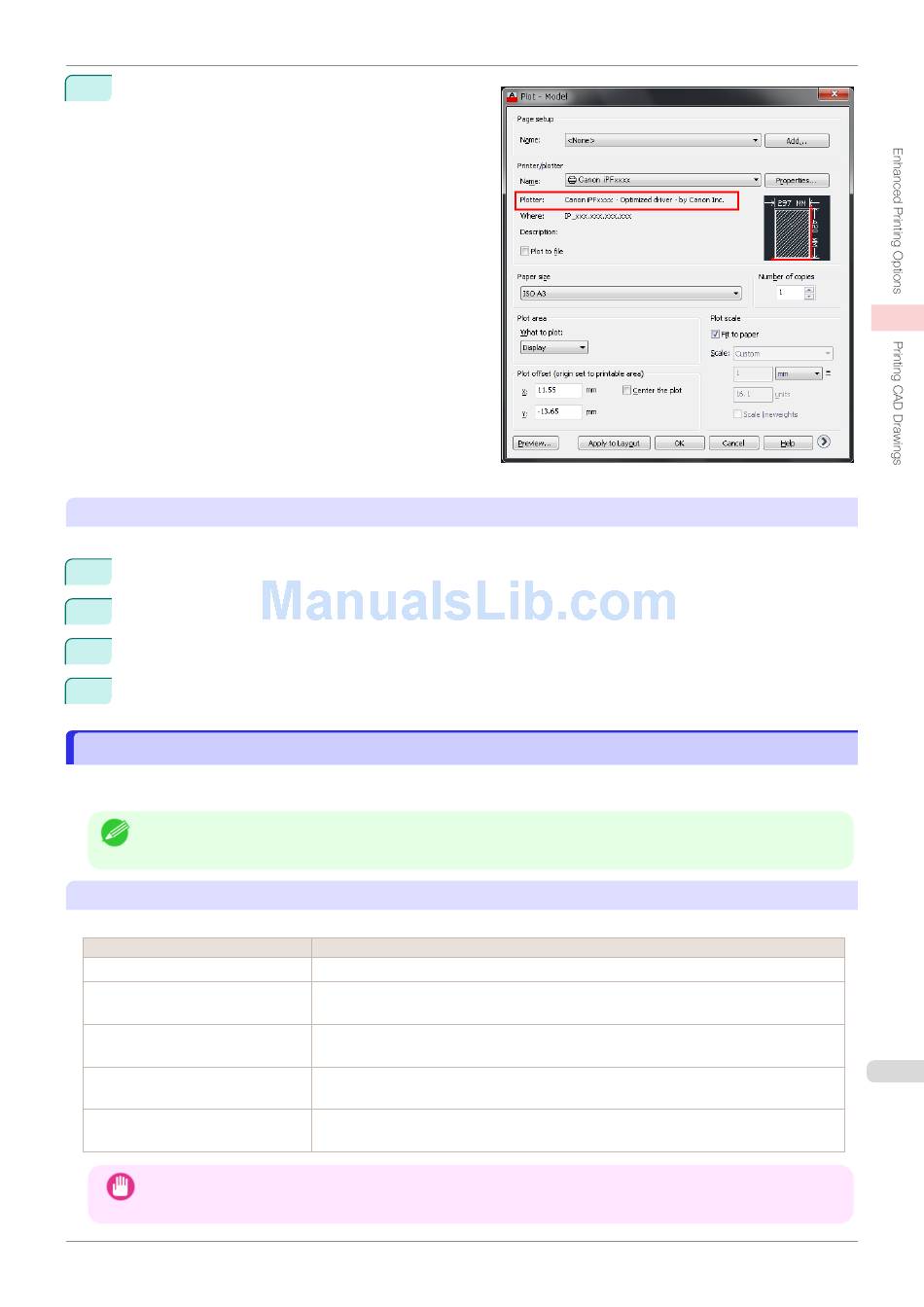

The Printing dialog box is displayed.
Printer Driver Optimization Module for AutoCAD is in-
stalled if in Plotter of Printer/plotter this is dis-
played:iPFxxxx - Optimized driver - by Canon Inc..
Installation of Printer Driver Optimization Module for AutoCAD
If Printer Driver Optimization Module for AutoCAD is not installed, install it by the following method.
1
Insert User Software CD-ROM in the CD-ROM drive and start the installer.
2
In the Setup Menu window, click Install Individual Software.
3
Click Install of Printer Driver Optimization Module for AutoCAD.
4
Follow the instructions on the screen.

Specifying Colors and Printing CAD Drawings

Specifying Colors and Printing CAD Drawings

You can complete color settings when Color (CAD) is selected in Color Mode.
Colors can be adjusted before printing as follows when Color Compatibility is selected.
•
Color (CAD) is displayed when you select Advanced Settings on the Main sheet and set Print Priority to Line
Drawing/Text.
Note
Color Compatibility
Color Setting Item
Color Setting
Color (CAD) 1
Color (CAD) 2
Color (CAD) 3
Color (CAD) 4
Color (CAD) 5
•
If you have selected Color (CAD) 2, Color (CAD) 3, Color (CAD) 4, or Color (CAD) 5, it is not possible to match
the colors and image quality produced by the specified printer exactly.
Important
User's Guide
Print in standard colors.
Print with approximate colors emulating Canon iPF750, iPF755, iPF650, iPF655, iPF760,
iPF765.
Print with approximate colors emulating Canon iPF500, iPF600, iPF700, iPF510, iPF610,
iPF710, iPF605, iPF720, iPF810, iPF820, iPF815, iPF825.
Print emulating the HP Designjet 500/800, in colors resembling colors produced by these
printers.
Print emulating the HP Designjet T1100, in colors resembling colors produced by this
printer.
Specifying Colors and Printing CAD Drawings
Description
