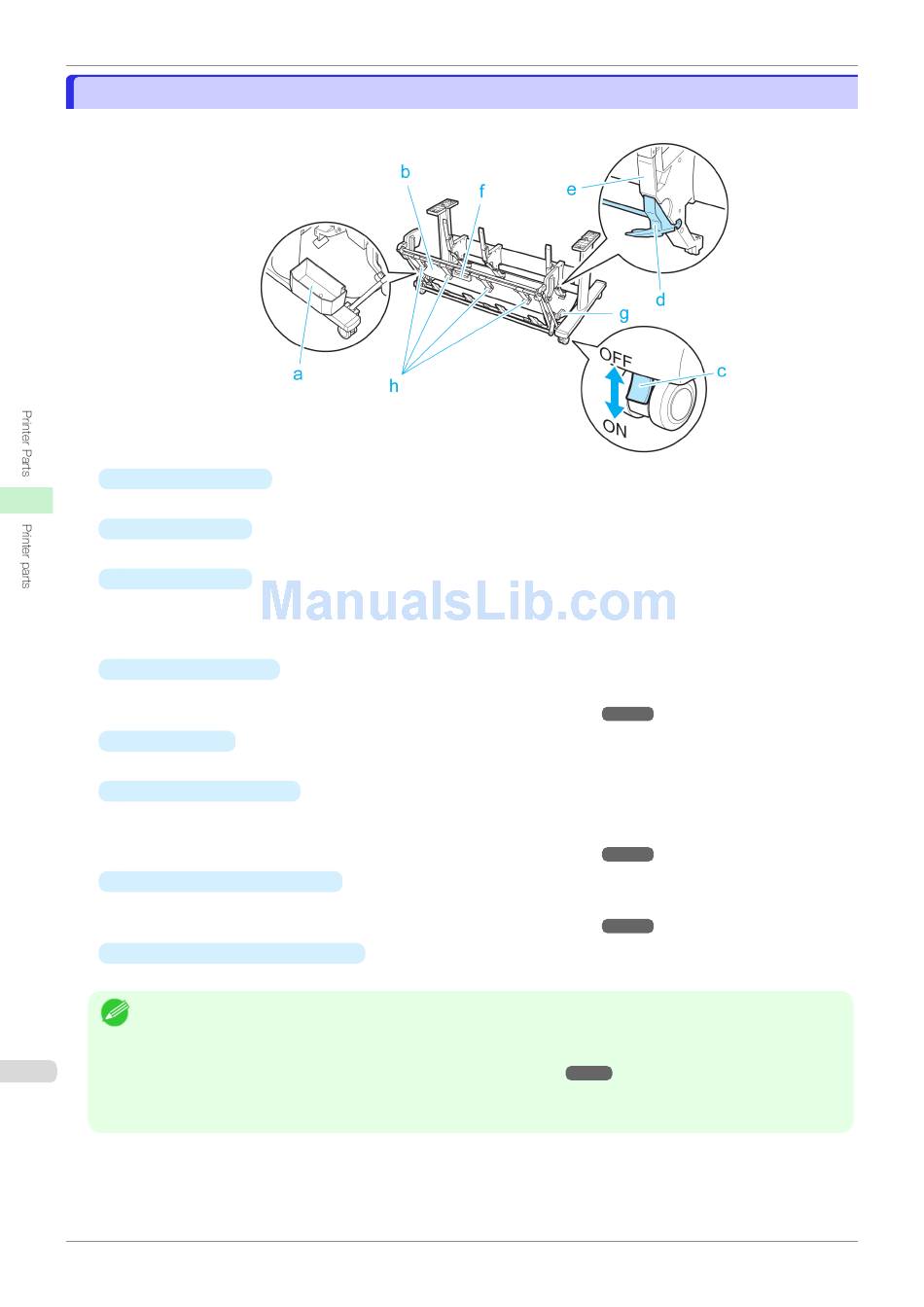

• Printer Stand ST-34
a Accessory Pocket
Stores printer accessories.
b Output Stacker
Printed documents are ejected into the output tray.
c Locking Caster
Lock to immobilize the caster.
Before moving the printer, always unlock all four casters. Moving the printer while casters are locked may
scratch the casters or the floor.
d Adjustable Stopper
Pull out depending on the paper size when using the output stacker in the Extended position A.
For details on the extended position, see "Using the Output Stacker."
e Paper Guide
Guides printed documents into the output stacker.
f Output stacker handle
This handle is grasped and supports the sliding output stacker when putting the output stacker into Exten-
ded position B and returning it to the regular position.
For details on the extended position, see "Using the Output Stacker."
g Output stacker release lever
Pull this lever towards you to release Extended position B.
For details on the extended position, see "Using the Output Stacker."
h Output Stacker Ejection Guides
This guide supports the paper that is output when using the output stacker in Extended position B.
•
The Stand that can be used with this printer is Printer Stand ST-34 and Printer Stand ST-33. Either one or the other
of these Stand is included with the printer depending on the region and time when you purchased the printer.
Note
•
The output stacker of the Printer Stand ST-33 has a regular position and an Extended position A.
438
For details on the extended position, see "Using the Output Stacker."
•
The Stand is described in the illustration of Printer Stand ST-34. Note that the illustrations may look different from
the appearance of your printer in some cases.
P.346
➔
P.346
➔
P.346
➔
P.346
➔
