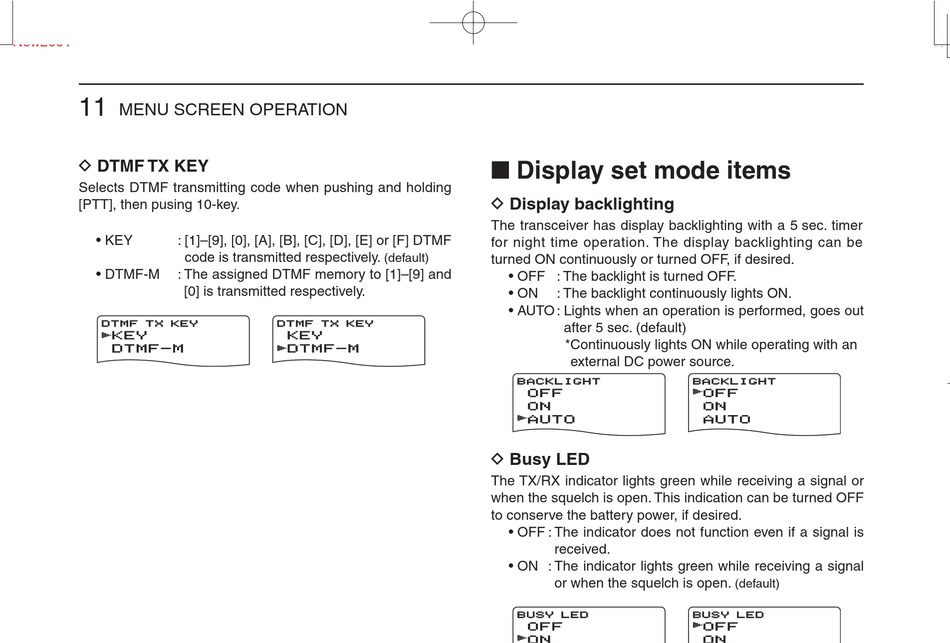

Display Set Mode Items - Icom IC-92A Instruction Manual

11
MENU SCREEN OPERATION
D DTMF TX KEY
Selects DTMF transmitting code when pushing and holding
[PTT], then pusing 10-key.
• KEY : [1]–[9], [0], [A], [B], [C], [D], [E] or [F] DTMF
code is transmitted respectively.
• DTMF-M : The assigned DTMF memory to [1]–[9] and
[0] is transmitted respectively.
DTMF TX KEY DTMF TX KEY
KEY
r
DTMF-M
112
(default)
DTMF TX KEY DTMF TX KEY
KEY
DTMF-M DTMF-M
r

■ Display set mode items

D Display backlighting
The transceiver has display backlighting with a 5 sec. timer
for night time operation. The display backlighting can be
turned ON continuously or turned OFF, if desired.
• OFF : The backlight is turned OFF.
• ON : The backlight continuously lights ON.
• AUTO : Lights when an operation is performed, goes out
after 5 sec. (default)
* C ontinuously lights ON while operating with an
external DC power source.
BACKLIGHT BACKLIGHT
OFF
ON
r AUTO
D Busy LED
The TX/RX indicator lights green while receiving a signal or
when the squelch is open. This indication can be turned OFF
to conserve the battery power, if desired.
• OFF : The indicator does not function even if a signal is
received.
• ON : The indicator lights green while receiving a signal
or when the squelch is open.
BUSY LED BUSY LED
OFF
r ON
BACKLIGHT BACKLIGHT
r
OFF
ON
AUTO
(default)
BUSY LED BUSY LED
r
OFF
ON
