Summary of Contents for E-FLITE The Beast

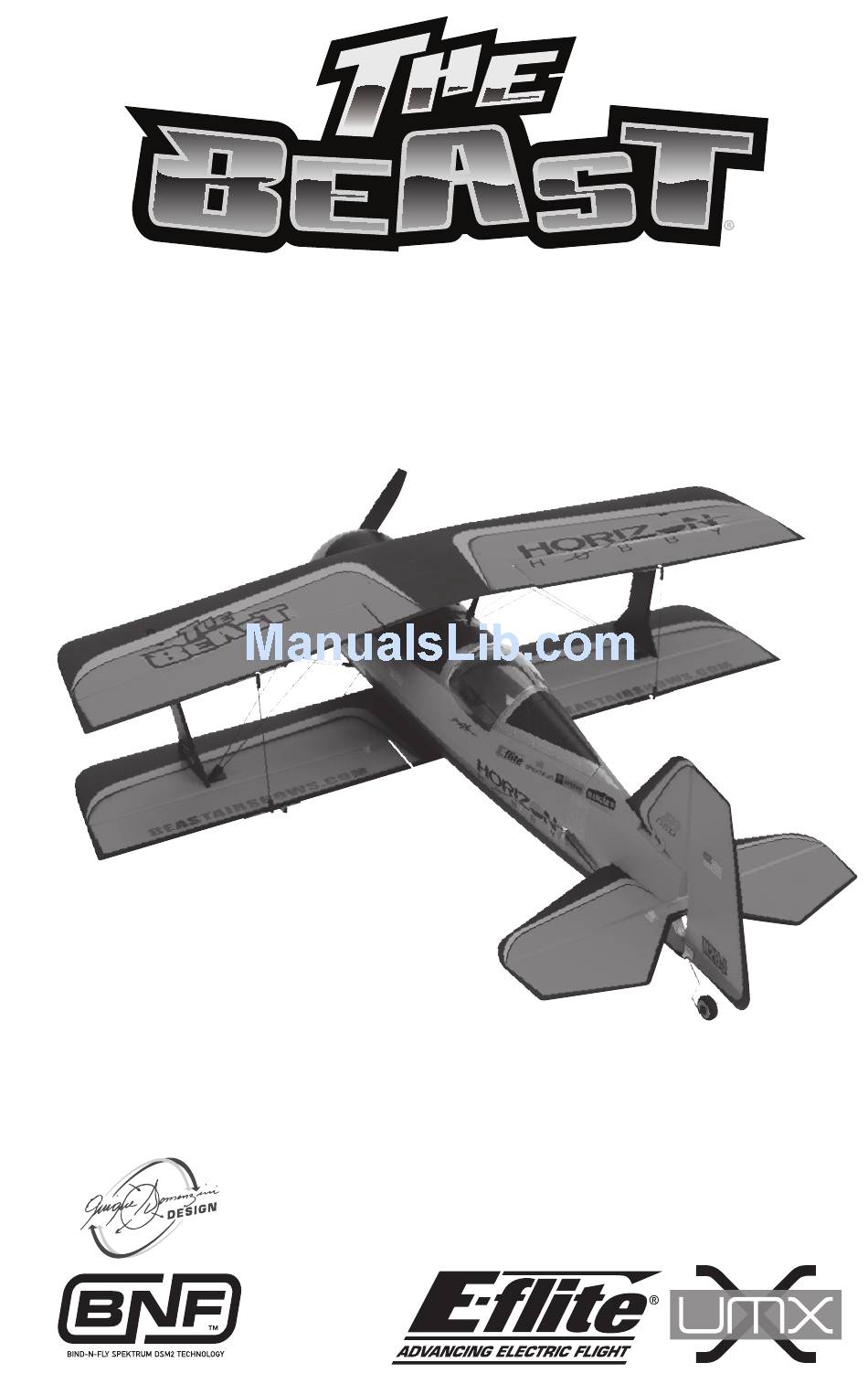

- Page 1 ® Instruction Manual • Bedienungsanleitung • Manuel d’utilisation • Manuale di Istruzioni ™...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discre- tion of Horizon Hobby, Inc. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage... -
Page 3: Table Of Contents
2S 7.4V Li-Po Battery Charger Wingspan 14.7 in (372mm) Transmitter 2.4GHz with Spektrum™ DSM2 15.7 in (400mm) Length Sold Separately with adjustable dual-rates and 2.0 oz (57 g) expo (DX6i and up) Weight To register your product online, go to http://www.E-flite.com... -
Page 4: Battery Warnings
Low Voltage Cutoff (LVC) When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The Beast ESC protects the flight battery from over-discharge using Low Voltage Cutoff (LVC). Before the battery charge decreases too much, LVC removes power supply from the motor. -
Page 5: Charging The Battery
Charging the Battery Your Beast comes with a Celectra™ 1-Port 2S 7.4V DC Li-Po Charger and UMX 2-Cell 7.4V 120 mAh 20C Li-Po battery. Please visit www.horizonhobby. com for optional battery adapters. Refer to battery warnings. It is recommended to charge the battery pack while you are inspecting the aircraft. -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver of the control unit to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. You need to ‘bind’ your chosen Spektrum DSM2 technology equipped aircraft transmitter to the receiver for proper operation. ®... -
Page 7: Control Direction Test
Control Direction Test You should bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure aircraft control surfaces are moved correctly. Note: Make sure tail pushrods move freely and that paint or decals are not adhered to them. Elevator Elevator down... -
Page 8: Control Centering
Rudder Note: The DX5e transmitter is not recommended Note: We do not recommend that a beginner fly the Beast. NOTICE: DO NOT SET YOUR TRANSMITTER ATV OVER 100%. If the ATV is set over 100% it will not result in more control movement, and it will overdrive the servo and cause damage. -
Page 9: Flying Tips And Repairs
ESC. Note: Crash damage is not covered under warranty. Repairs The Beast may be flown indoors (by an advanced pilot), but only in a large space such as an indoor Thanks to the Beast’s construction, repairs to the running track with a high ceiling. -
Page 10: Powerplant Service
Service of Power Components CAUTION: DO NOT handle propeller parts while the flight battery is connected. Personal injury could result. Disassembly Assembly Propeller Motor and Firewall • Remove battery hatch by sliding it forward, • Connect motor wire connector to the ESC/ then up and away from the fuselage. receiver connector so wire colors align. • Remove screw, spinner, propeller and back- Figure I. - Page 11 Service of Power Components...
-
Page 12: Troubleshooting Guide
Troubleshooting Guide Possible Cause Solution Problem • Throttle not at idle and/or throttle • Reset controls with throttle stick • Aircraft will not respond trim too high. and throttle trim at lowest setting to throttle but responds to • Throttle channel is reversed • Reverse throttle channel on other controls transmitter • Damaged propeller and spinner • Replace damaged parts • Extra propeller noise or or motor extra vibration • Flight battery charge is low • Completely recharge flight battery • Propeller damaged • Replace damaged parts • Flight battery damaged • Replace flight battery and follow • Reduced flight time or flight battery instructions... -
Page 13: Replacement Parts And Optional Parts
Replacement and Optional Parts Replacement Parts Number Description Number Description Wing Set: UMX Beast Spinner: UMX Beast EFLU4059 EFLU4051 Firewall: UMX Beast Cabane: UMX Beast EFLU4066 EFLU4064 Prop Adaptor: UMX Beast Fuselage Set: UMX Beast EFLU4067 EFLU4058 Celectra 2S 7.4V DC Li-Po Charger EFLUC1007 Tail Surface set: UMX Beast EFLU4060... -
Page 14: Warranty And Service
Warranty and Repair Policy Warranty Period WARRANTY SERVICES Exclusive Warranty- Horizon Hobby, Inc., (Horizon) Questions, Assistance, and Repairs warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the Your local hobby store and/or place of purchase cannot date of purchase by the Purchaser. -
Page 15: Contact Information
Contact Information Country of Horizon Hobby Address Phone Number/Email Address Purchase 4105 Fieldstone Rd Horizon Service Center 877-504-0233 Champaign, Illinois (Electronics and engines) productsupport@horizonhobby.com United States of 61822 USA America 4105 Fieldstone Rd Horizon Product Support 877-504-0233 Champaign, Illinois (All other products) productsupport@horizonhobby.com 61822 USA Units 1-4 Ployters Rd...
