Designing Touch Panel Pages

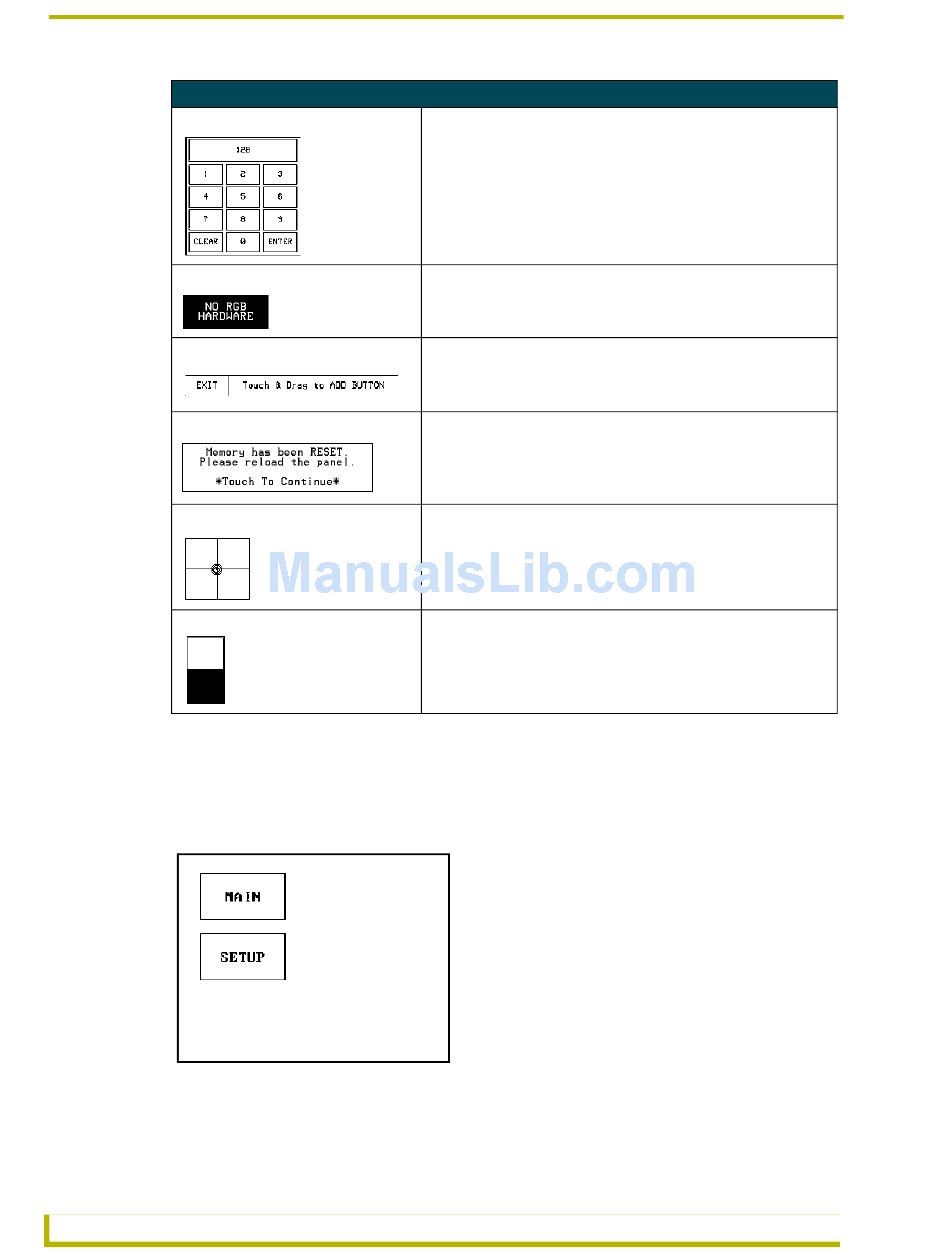

General Button Types (Cont.)
Keypad buttons
Status buttons
Operation bars
Touch to Continue buttons
Joystick buttons
Bargraph buttons

Activating Edit Mode

You must activate EDIT mode before creating touch panel pages and buttons. Use the EDIT button
to enter Edit mode. When powering up the touch panel, the first page is the Main page (see FIG. 3).
Note that the Edit button is not available initially.
FIG. 3 Main Page
To activate edit mode:
1. Press SETUP in the Main page to open the Setup page (FIG. 4).
6
The keypad button opens a keypad so you can enter a password or
value assignment. All keypad buttons are interactive except for the
entry display.
Status buttons always have a dark fill with light letters and have no
functionality except to display information.
Operation bars appear in the place of the Editor bar, after selecting a
button or page edit operation. The operation bar indicates which edit
function is currently active. When an edit operation is selected, it
remains active until you press EXIT.
"Touch to Continue" buttons appear when an operation requires user
acknowledgement.
Joysticks are vertical and horizontal direction controllers for use with
pan and tilt camera controllers.
Bargraph buttons display a dynamic bargraph (vertical or horizontal).
An example is the Battery level indicator button.
ViewPoint Wireless Touch Panels
