Baxi MainEco Combi 24 Installation And Service Manual

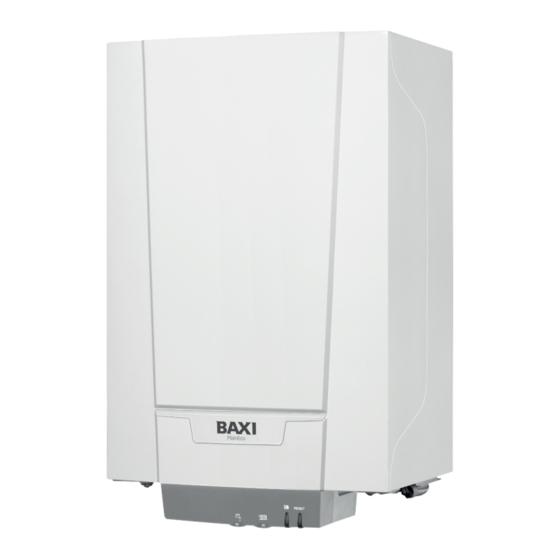

Wall mounted gas condensing boiler
Hide thumbs Also See for MainEco Combi 24:
Table of Contents

Advertisement

Quick Links

See also: User Manual
United Kingdom
en
Installation and Service Manual
Wall Mounted Gas Condensing Boiler
Baxi MainEco Combi and System
24-28-35 / 18-24
These instructions include the Benchmark Commissioning Checklist and should be left with the
user for safe keeping. They must be read in conjunction with the Flue Installation Guide.
