1.0 Introduction

1.1 Description
1. The Baxi Megaflo System HE IE is a fully automatic gas fired
wall mounted condensing system boiler. It is room sealed and
fan assisted.
2. The boiler is set to give a maximum output of :-
15 models - 15 kW
16.2 kW (Condensing)
18 models - 18 kW
19.4 kW (Condensing)
24 models - 24 kW
25.9 kW (Condensing)
28 models - 28 kW
30.3 kW (Condensing)
32 models - 32 kW
34.4 kW (Condensing)
3. It is designed for use on either Natural Gas (G20), or
Propane (G31) as indicated by the suffix LPG in the model
name. Two Propane models are available, the Baxi Megaflo
System 24 HE IE LPG & 28 HE IE LPG
4. The boiler incorporates a circulating pump and expansion
vessel. It is suitable for use only on fully pumped sealed
systems.

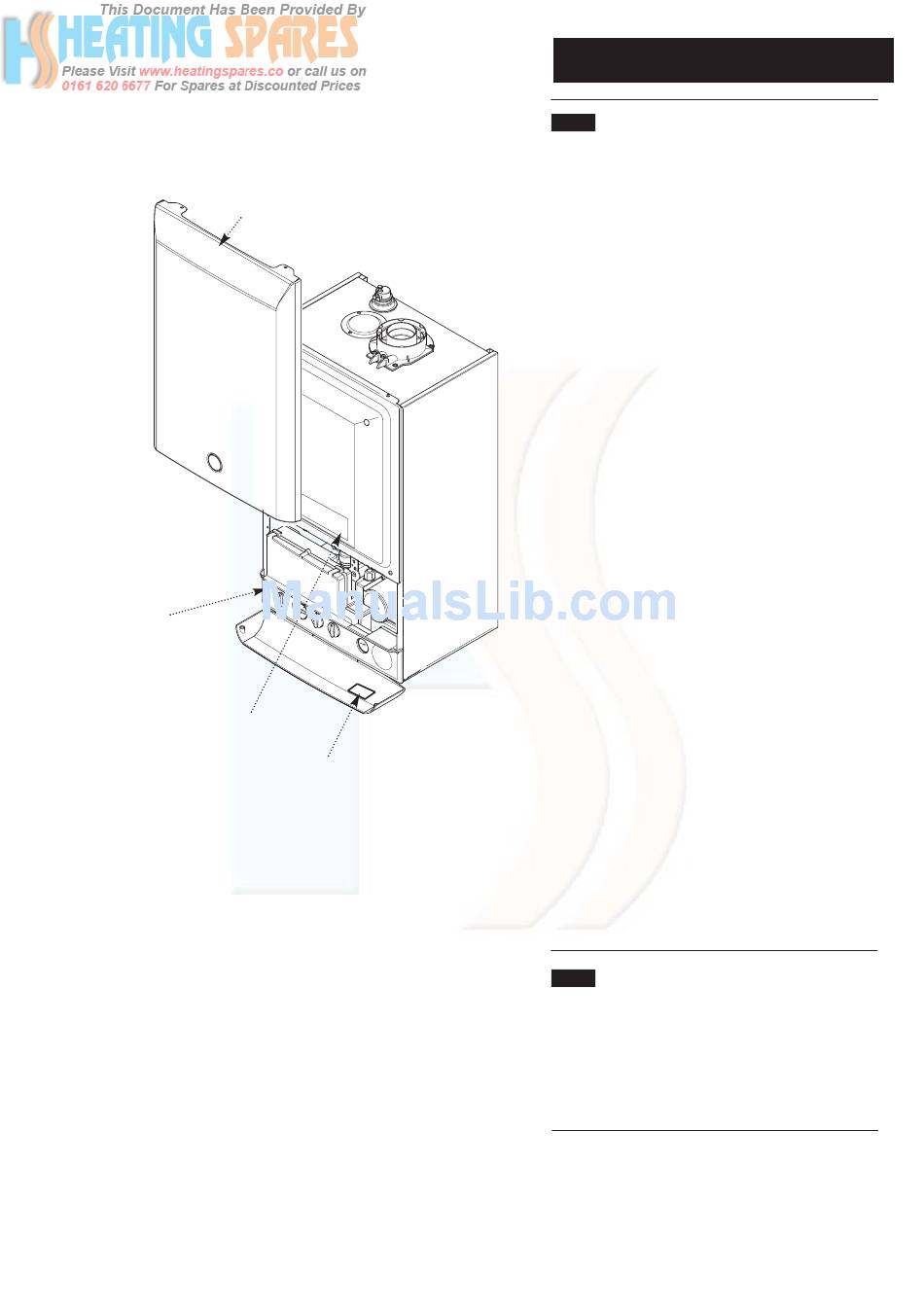

5. The boiler data badge gives details of the model and serial
number, and is situated on the inner door panel. It is visible
when the case front panel is removed (Fig. 1).
6. The boiler model name and serial number are also shown
on the information label on the rear of the lower door panel.
This is for user reference.
7. The boiler is intended to be installed in residential /
commercial / light industrial E.M.C. environments on a
governed meter supply only.
8. The boiler must be installed with one of the purpose
designed flues such as the standard horizontal telescopic flue
kit, part no. 5118069 .
9. All systems must be thoroughly flushed and treated with
inhibitor (see section 6.1).
1.2 Contents of Pack
The pack contains:-
• Boiler
• Wall Plate (including taps)
• Set of Pipe Connections
• Template & 'Quick Fit' Guide
• Literature Pack
