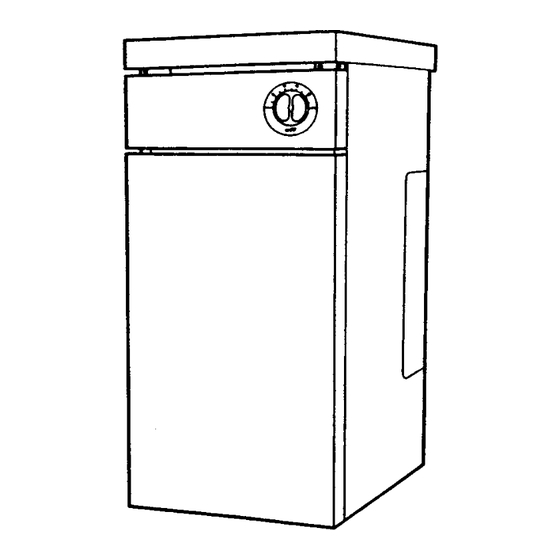

Baxi Boston 2 80 OF Installation And Servicing Instructions

Floor standing open flue gas fired central heating boilers natural gas

Advertisement

Baxi Boston 2 OF
Floor Standing Open Flue
Gas Fired Central Heating Boilers

Natural Gas

Comp N° 235305 - Iss 8 - 4/00
Installation and
Servicing Instructions
Please leave these Instructions with the User.

Advertisement

Table of Contents
loading

Summary of Contents for Baxi Boston 2 80 OF

  • Page 1: Natural Gas

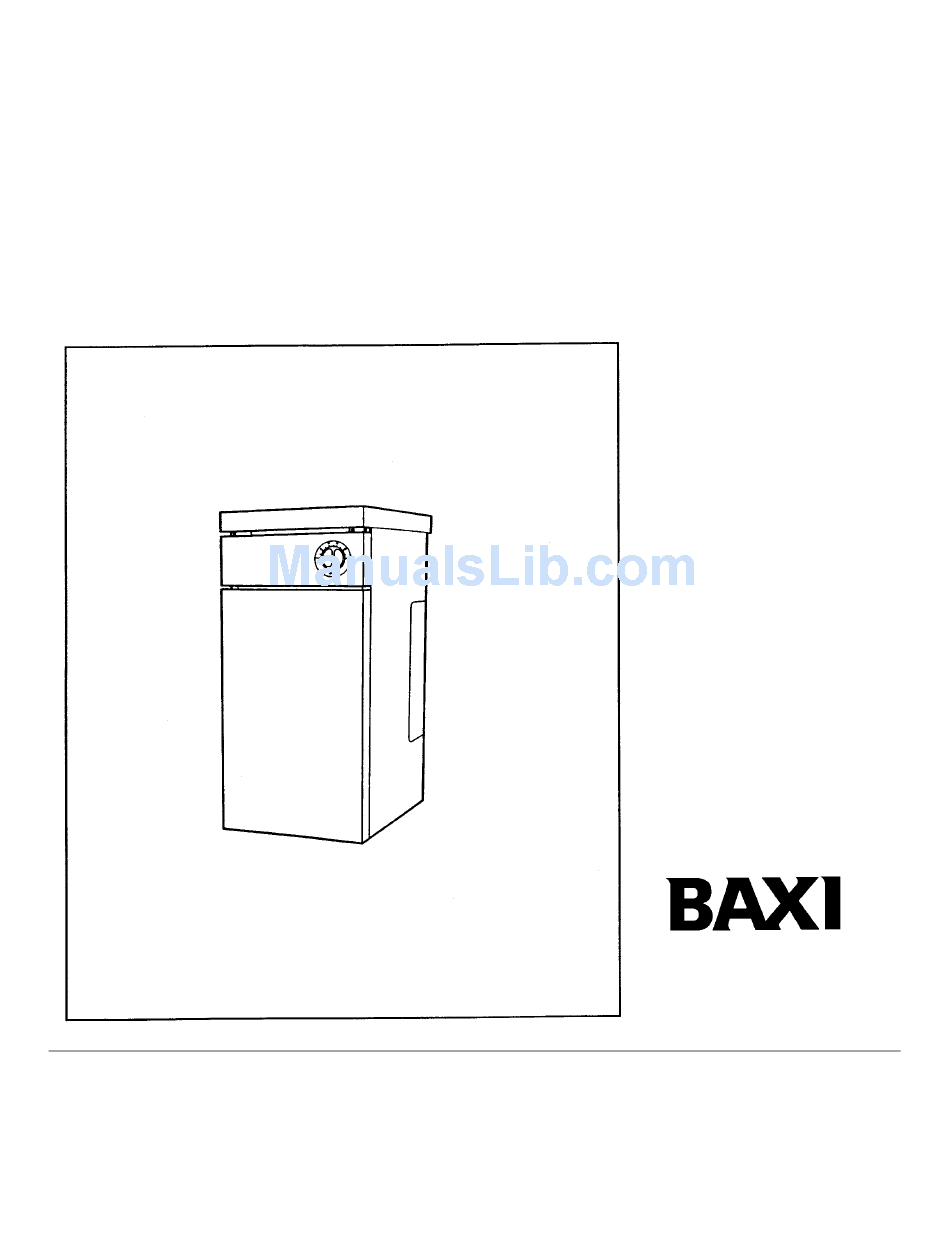

    Please leave these Instructions with the User. Baxi Boston 2 OF Floor Standing Open Flue Gas Fired Central Heating Boilers Natural Gas Comp N° 235305 - Iss 8 - 4/00 Installation and Servicing Instructions...
  • Page 2: Installation Instructions

    These include sections on that satisfied customers mean continued success. the type of controls employed, flushing the system, We hope you get a satisfactory service from Baxi. If not, burner operating pressure etc. The details of the Log please let us know.
  • Page 3: Installation Requirements

    Installation Requirements - Page 3 GENERAL VENTILATION The installation must be carried out by a Corgi Registered Detailed recommendations for air supply are given in BS Installer or other competent person and be in accordance 5440:2. with relevant BS Codes of Practice, I.E.E. Regulations, Gas The following notes are intended to give general guidance.
  • Page 4 Water Circulation Systems - Page 4 (see page 8) Treatment of Water Circulating Systems The appliances are only suitable for connection to a cistern For optimum performance after installation, this boiler and its supply and can be used with:- associated central heating system must be flushed in 1) Open vented pumped domestic hot water and pumped accordance with the guidelines given in BS7593:1992 central heating systems.
  • Page 5: Fitting The Appliance

    Fitting the Appliance - Page 5 PREPARATION 1 off 100mm long - 22mm copper tube A sound and level floor which conforms to the 1 off 145mm long - 22mm copper tube requirements of the Local Authorities and Building 1 off 42mm long - 22mm copper tube Regulations must be provided.
  • Page 6 Page 6...
  • Page 7: Electrical Connections

    Electrical Connections - Page 7 THIS APPLIANCE MUST BE EARTHED With the outer case assembled as in ‘Outer Case’ 1-4 remove the 2 screws securing the thermostat cover to GENERAL the facia panel. The mains supply required is 230V ~ 50 Hz fused at 3 amps. A double pole switch of contact separation of 3mm in all Fit the input cable to the terminal strip and clamp using poles should be provided in the installation or an unswitched...
  • Page 8 Notes for Guidance - Page 8 PIPE SIZING The sizes of flow and return pipes from the boiler should be determined by normal methods according to the requirements of the system. Normally the pump should be set to give a 11°C (52°F) drop across the system with the gas rate of the boiler adjusted to the output required.
  • Page 9: Commissioning The Unit

    Commissioning the Unit - Page 9 Reference should be made to BS 5449: section 5 when NOTE: In the event of an electrical fault after the installation commissioning the boiler and system. of the appliance, preliminary electrical system checks must be carried out (i.e.
  • Page 10: Servicing The Unit

    Servicing the Unit - Page 10 (See ‘BOILER SERVICING GUIDE’ label on the boiler) tube. Remove and clean the pilot injector and clean the pilot shroud (Fig 12). Before servicing the appliance please read the Important Information section on page 3. 14) Re-assemble the pilot components and then the burner in reverse order of dismantling.
  • Page 11 Page 11...
  • Page 12: Changing Components

    Changing Components - Page 12 When changing components ensure that electrical and Re-assemble in reverse order of dismantling ensuring gas supplies are isolated. that the thermostat phial is replaced into the thermostat pocket. Before changing any components please read the Important Information section on page 3 GAS VALVE (Fig 12) Remove the burner and controls assembly as...
  • Page 13 Page 13...
  • Page 14: Short Parts List

    Short Parts List - Page 14 BAXI BOSTON 2 - 80/70/60/50/40 OF B.G.C. No 41 077 84/83/82/81/80 Model Description G.C. Manufact’rs N° Part N° Key N° Seal - Panel Door 364 260 112057 Kit - Sight Window 364 719 226114...
