Summary of Contents for Planet FTP-80X Series

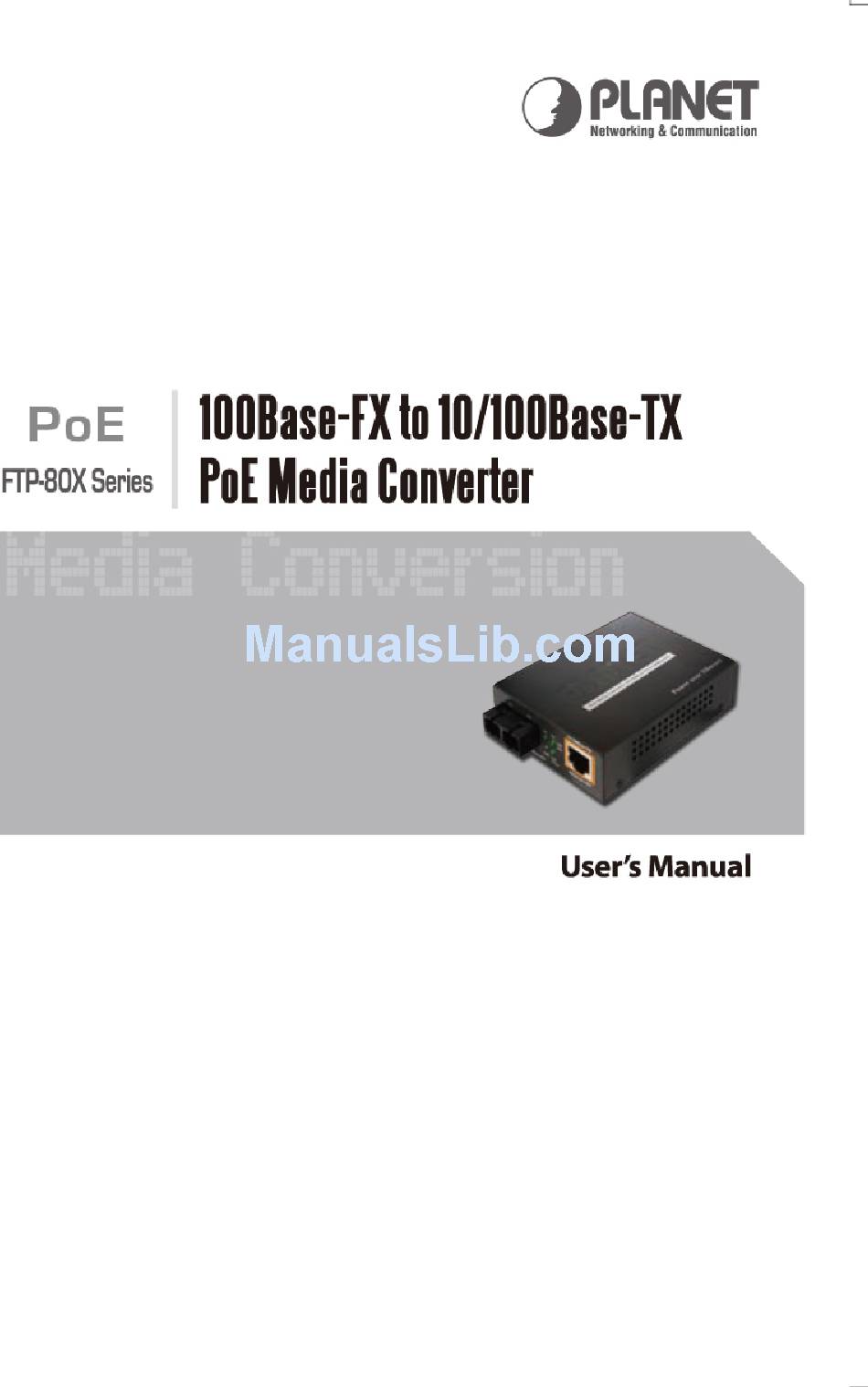

- Page 2 100Base-FX to 10/100Base-TX Media Converter FTP-80x User’s Manual...
- Page 3 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
-
Page 4: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 Revision User’s manual for PLANET 100Base-FX to 10/100Base-TX PoE Media Converter Multi-mode: FTP-802 Single-mode: FTP-802S15 Rev 1.0 (March, 2008) Part No. 2350-AA3540-000...
-
Page 6: Table Of Contents
Table Of Contents 1. Overview ................. 6 2. Model List ................ 7 3. Checklist ................7 4. Product Outlook ..............8 5. Link Fault Pass through (LFP)........... 10 6. Installing the Converter ........... 13 7. PoE function ..............14 8. LED indication ..............15 9. -
Page 7: Overview
1. Overview Thank you for purchasing PLANET FTP-80X family 10/100Mbps Ethernet Twisted pair to 100Base-FX Fiber-optic PoE Bridge Converter. This converter is used to convert one type media signal to other type equivalent that allows two type segments connect easily, efficiently and inexpensively. The converter provides Power over Ethernet power injector function which is able to drive one IEEE 802.3af compliant powered devices. -
Page 8: Model List
2. Model List Your PoE Media Converter comes with two of the following models. FTP-802: on board SC / Multi-mode fiber connector, up to FTP-802S15: on board SC / Single mode fiber connector, up to 15km In the following sections, the term “FTP-80X” indicates the product family above. -
Page 9: Product Outlook

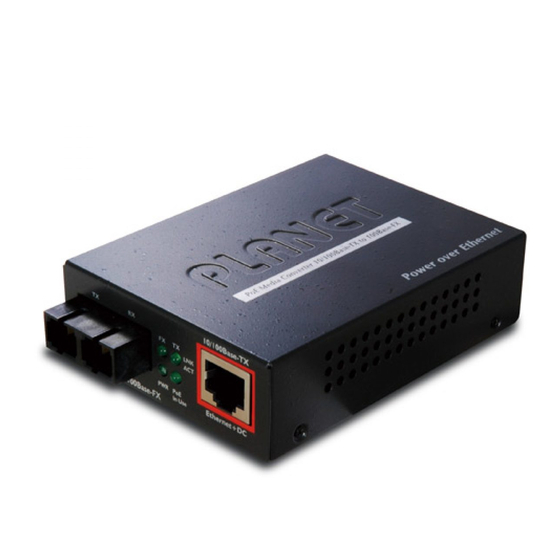

4. Product Outlook Overview The layout of FTP-802 is the same as for FTP-802S15 Rear Panel Bottom TOP Panel Front Panel... - Page 10 Left View There are one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one fiber-optic connector (vary by model) and four LED indicators. LNK/ PoE Media Converter 10/100Base-TX In Use 10/100Base-TX to 100Base-FX Right View One DIP switch for Link Fault Pass Through (LFP) feature, “ON”...
-
Page 11: Link Fault Pass Through (Lfp)
5. Link Fault Pass through (LFP) function includes Link Fault Pass Through function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function. - Page 12 l LED lit = established link ° LED unlit = no link The administrator can then determine the source of the problem. Management Switch/Hub Media Media Switch/Hub Management Station w/SNMP Converter Converter w/SNMP Station LFP ON LFP ON Broken Fiber Cable l LED lit = established link °...
- Page 13 LFP ON LFP OFF Fiber Cable If one of the optical conductors is bad (as shown in the diagram l LED lit = established link ° LED unlit = no link box below), the converter with LLR function will return a no-link condition to its link partner.
-
Page 14: Installing The Converter
6. Installing the Converter Please follow these steps to install the PoE Media converter: Turn off the power of the device/station in a network to which the FTP-80X will be attached. Ensure that there is no activity in the network. Attach fiber cable from the FTP-80X to the fiber network. -
Page 15: Poe Function
Ethernet device conveniently and easily. For the places hard to find the power inlet, the FTP-80X provide the easiest way to power your Ethernet devices such as PLANET IEEE 802.3af Power over Ethernet Splitter (POE-151S / 152S) with Internet Camera (ICA-210) or Wireless Access Point (WAP- 4060PE) installed in the wild rang place. -
Page 16: Led Indication
8. LED indication n System Color Function Green Lit: Indicate the device is powered. n 10/100Base-TX Port Color Function Indicate that the Media Converter Blink is actively sending or receiving data over that port. LNK/ACT Green Indicate that the port is link up. Indicate that the port is link down. -
Page 17: Cable Connection Parameter
9. Cable Connection Parameter The limitations are as below: Duplex Connection Limitation (max.) Twisted Pair Node to Node Half / Full 100 meters Node to Switch/Hub Multi-Mode Converters Node to Node MM Half 412 meters Node to Switch Node to Node MM Full FTP-802: 2 kilometers Node to Switch... -
Page 18: Ftp-80X Technical Specifications
10. FTP-80X Technical Specifications The FTP-80X comes with the following standard features: Standard: IEEE 802.3u, 10/100Base-TX ,100Base-FX IEEE 802.3af Power over Ethernet Connectors: n One RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568 with PoE n One Fiber-optic, 1310nm wavelength, connector-type vary with model Data Transfer Rate: 10/100Mbps (TP), 100Mbps (FX) Duplex mode support: Full or half-duplex mode by Auto- Negotiation (TP) -
Page 19: Device's Rj-45 Pin Assignments
APPENDIX A A.1 Device‘s RJ-45 Pin Assignments n 10/100Mbps, 10/100Base-TX Contact MDI-X 1 (TX +) 2 (TX -) 3 (RX +) 6 (RX -) 4, 5, 7, 8 Not used Not used Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard. -
Page 20: Fiber Optical Cable Connection Parameter
Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cables are with same pin assignment and color as above picture before deploying the cables into your network. A.3 Fiber Optical Cable Connection Parameter The wiring details are as below: n Fiber Optical patch Cables: Standard Fiber Type... -
Page 21: Ec Declaration Of Conformity
: FTP-802 / FTP-802S15 * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address : 11F, No. 96, Min Chuan Road, Hsin Tien Taipei, Taiwan , R. O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (89/336/EEC).
