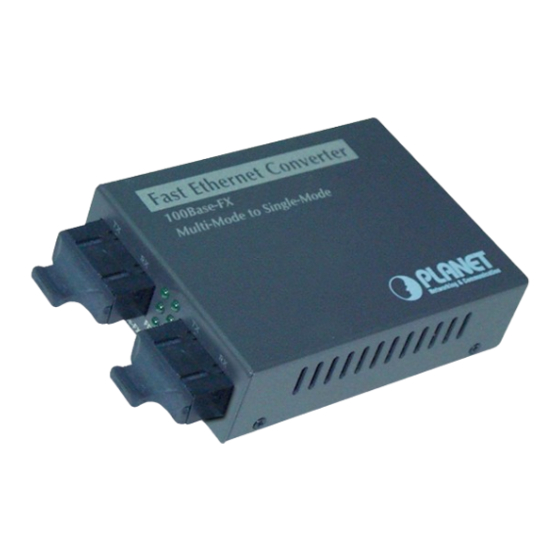

- Page 1 Fast Ethernet Converter 100Base-FX Multi-mode to Single-mode...
-
Page 2: Fcc Warning
Copyright © PLANET Technology Corp. 2000. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. The information in this manual is subject to change without notice. elong to their respective owners. All other trademarks b... -
Page 3: Model List
1. Overview Thank you for purchasing PLANET FT-7XX family Fast Ethernet Fiber-optic Converter. This converter is used to convert one type media signal to other type equivalent that allows two type segments connect easily, efficiently and inexpensively. This converter can be used as a standalone unit or as a slide-in module to the 19”... -
Page 4: Product Outlook
4. Product Outlook Right View (FT-712/FT-722) Multi Mode Single Mode Two fiber-optic connectors, multi-mode on the left, single-mode on the right and five LED indicators. For FT-733, FT-744, the outlook of fiber port is accordant to its related port, i.e. MT-RJ or VF-45. -
Page 5: Duplex Mode Setting
• Attach MM fiber cables from the FT-7XX to the MM fiber network. TX, RX must be paired at both ends • Attach SM fiber cables from the FT-7XX to the SM fiber network. TX, RX must be paired at both ends. •... -
Page 6: Cable Connection Parameter
FX ACT Green Blinks when any FX packet is present FX Link Green Lit when Fiber connection is good Green Lit when +5VDC power detected 8. Cable Connection Parameter Fast Ethernet 100Base-X networks allows 512bit time delay between any two node stations in a collision domain. The overall bit time of Fiber wires and devices must be within 512 bit time in a segment. - Page 7 The power jack of FT-7XX is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC- DC adapter and Planet’s Media Chassis. Should you have the problem to make the power connection, please contact your local sales representative.
