Summary of Contents for Planet FT-722

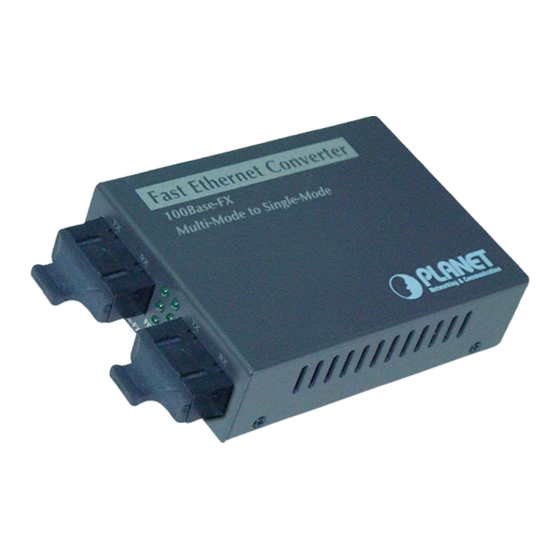

- Page 1 Fast Ethernet Media Converter 100Base-FX Multi-mode to Single-mode...
- Page 2 All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
-
Page 3: Fcc Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Revision User's manual for PLANET Fast Ethernet Converter Model: FT-722 Rev 1.0 (March.2004) Part No. 2010-000030-000... -
Page 4: Model List
ð FT-722Sxx: two on board SC fiber connectors Sxx represents Single-model optic interface in xx kilometers. In the following sections, the term “ FT-722” indicates the product above, the term “MM” and “SM” represents Multi-mode and Single Mode fiber-optic mode. -
Page 5: Product Outlook
4. Product Outlook Left View There are two fiber-optic connectors, multi-mode on the left, single-mode on the right and three LED indicators. Multi-Mode Single-Mode LNK/ACT Fast Ethernet Converter Right View One DIP switch for Link Fault Pass Through (LFP) feature, “ON”... -
Page 6: Installing The Converter
FT-722 will be attached Ensure that there is no activity in the network Attach MM fiber cable from the FT-722 to the MM fiber network. TX, RX must be paired at both ends Attach SM fiber cable from the FT-722 to the SM fiber network. -
Page 7: Led Indication
6.LED indication COLOR DESCRIPTION LNK / Green Blinks: when any FX packets transmitting and receiving Lit: when Fiber connection is good Green Lit when +5VDC power detected 7. Cable Connection Parameter Fast Ethernet 100Base-FX networks allow 512bit time delay between any two-node stations in a collision domain. The overall bit time of Fiber wires and devices must be within 512bit time in segment. -
Page 8: Power Information
Connecting to Router, Bridge, or Switch, Hub, please refer to the device’s Technical Manual. 9. Power information The power jack of FT-722 is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Planet’s Media Chassis. Should you have the problem to make the power connection, please contact your local sales representatives.
