ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included tools, assembly requires a Phillips screwdriver
wrench , and a rubber mallet

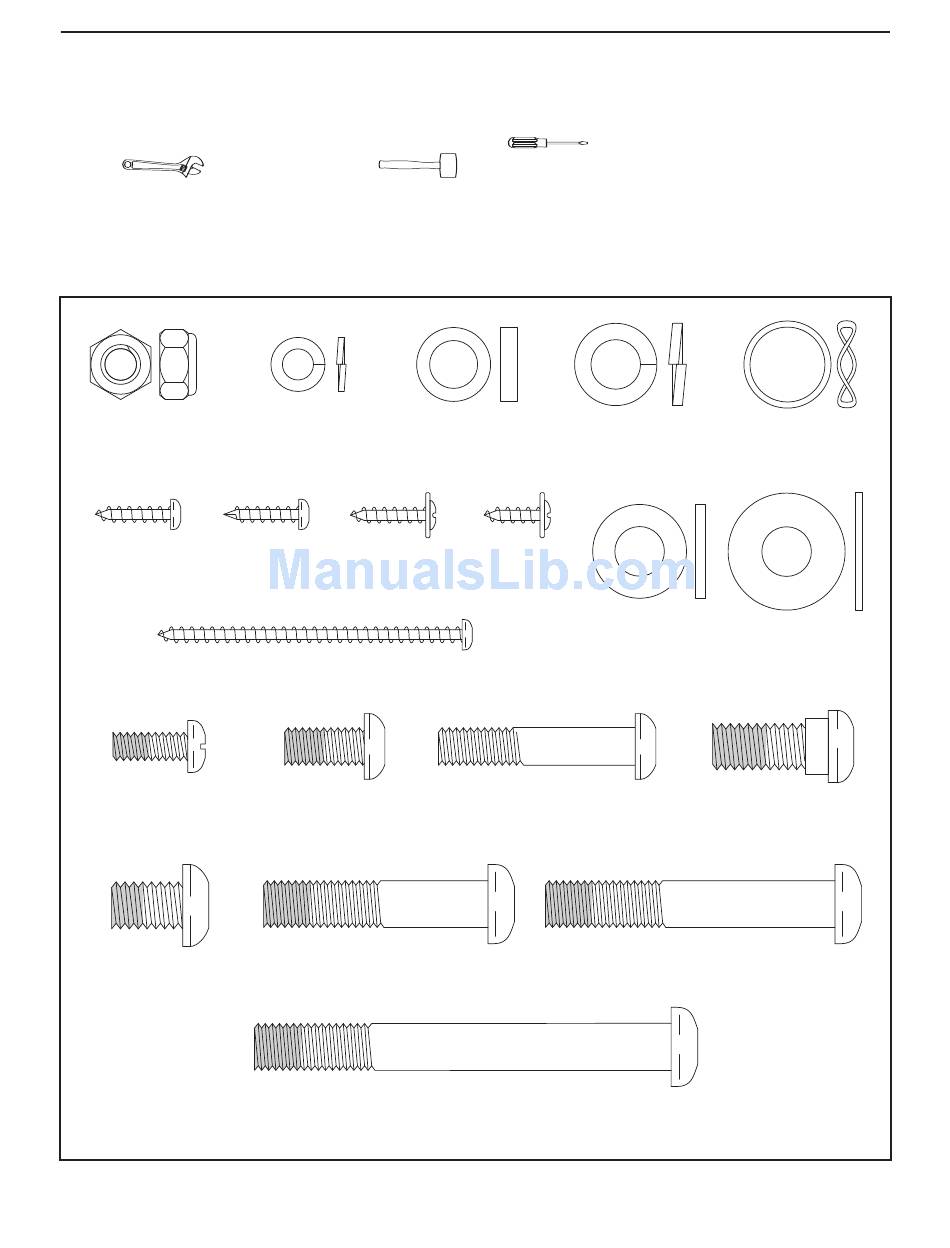

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. IMPORTANT: Some small parts may
have been preassembled. If a part is not in the parts bag, check to see if it has been preassembled.
M8 Nylon
Locknut (96)–4
M4 x 16mm M4 x 16mm
Screw (86)–4 Self-tapping
Screw (79)–10
M4 x 65mm Screw (91)–4
M6 x 16mm Patch
Screw (87)–8
M10 x 15mm Patch
Screw (82)–10
M6 Split M10 Spacer
Washer (88)–8
M4 x 16mm
Flange Screw
(84)–2
M8 x 16mm Patch
Screw (95)–3
M10 x 48mm Patch Screw (78)–2
M10 x 88mm Patch Screw (104)–2
, an adjustable
.
M10 Split
(76)–2 Washer (72)–4
M4 x 12mm
Flange Screw
(73)–6
M10 x 20mm x
2mm Washer
M8 x 42mm Button Bolt (71)–4
M10 x 62mm Patch Screw (97)–2
5
Wave Washer
(93)–6
M10 x 25mm x
1.5mm Washer
(81)–2 (83)–10
M10 x 23mm Patch
Screw (80)–2
