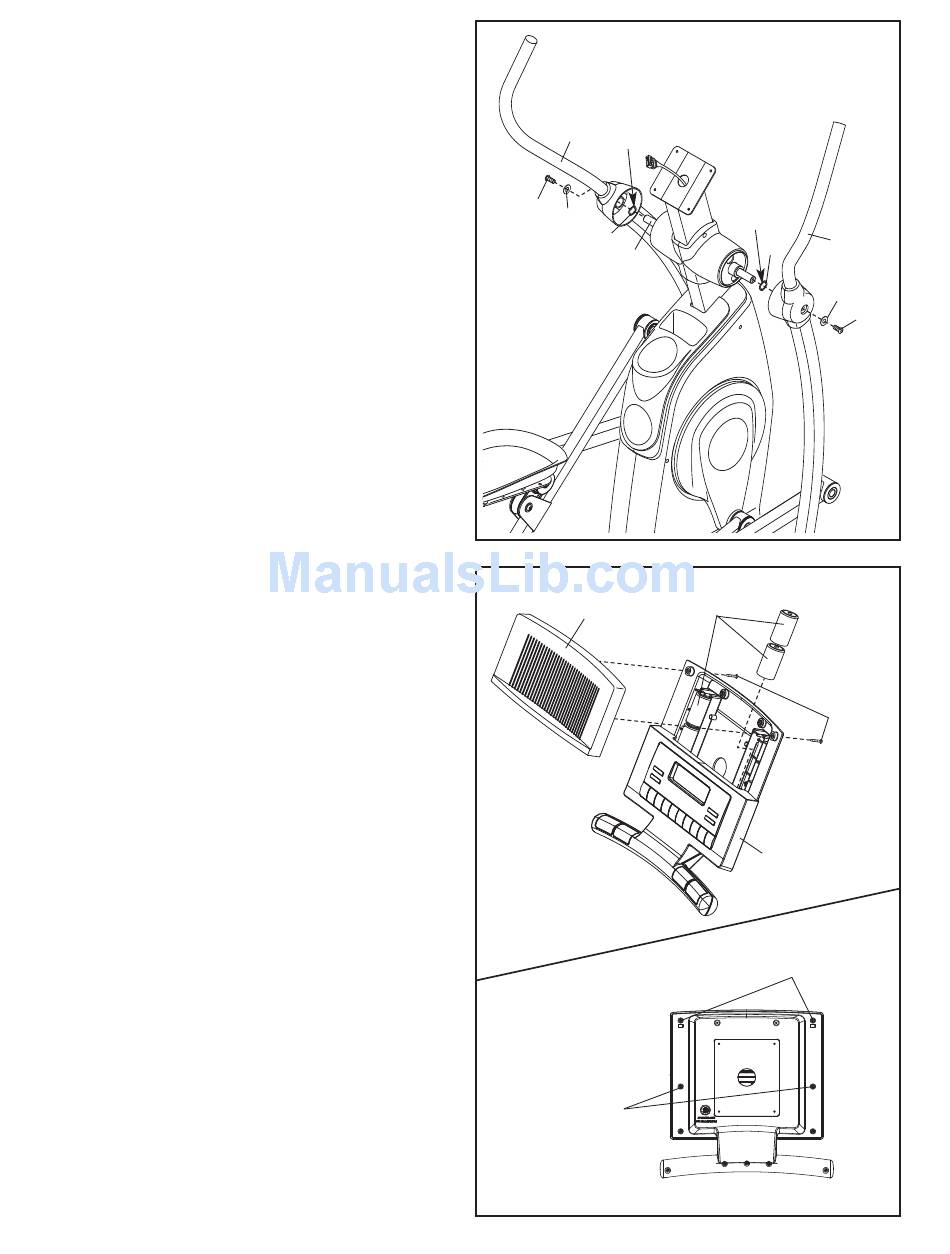

12. Apply a small amount of grease to a Wave
Washer (93). Slide the Wave Washer onto the
right side of the Pivot Axle (65). Next, slide the
Right Handlebar (9) onto the Pivot Axle.
Attach the Right Handlebar (9) with an M10 x
23mm Patch Screw (80) and an M10 x 20mm x
2mm Washer (81).
Repeat this step to attach the Left Handlebar
(8) to the Pivot Axle (65).
13. The Console (5) can be operated with four 1.5V
"D" batteries; alkaline batteries are recommend-
ed. IMPORTANT: If the elliptical exerciser has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries into the Console. If you do not
do this, the console displays or other elec-
tronic components may become damaged.
Remove the two battery screws from the back of
the console, and remove the battery cover.
Insert four batteries into the Console. Orient the
batteries as shown by the markings inside the
battery compartment. Then, reattach the battery
cover. Note: If it is difficult to reattach the battery
cover, remove the two battery screws, loosen
the two indicated console screws a few turns,
insert the lower edge of the battery cover into
the console, and then retighten the two console
screws. Then, reattach the battery cover with the
two battery screws.
The Console (5) can also be operated with an
optional power supply instead of batteries. To
purchase a power supply, call the telephone
number on the front cover of this manual. To
avoid damaging the console, use only a
manufacturer-supplied power supply. Plug
one end of the power supply into the jack on the
console. Plug the other end of the power supply
into an appropriate outlet that is properly
installed in accordance with all local codes and
ordinances.
