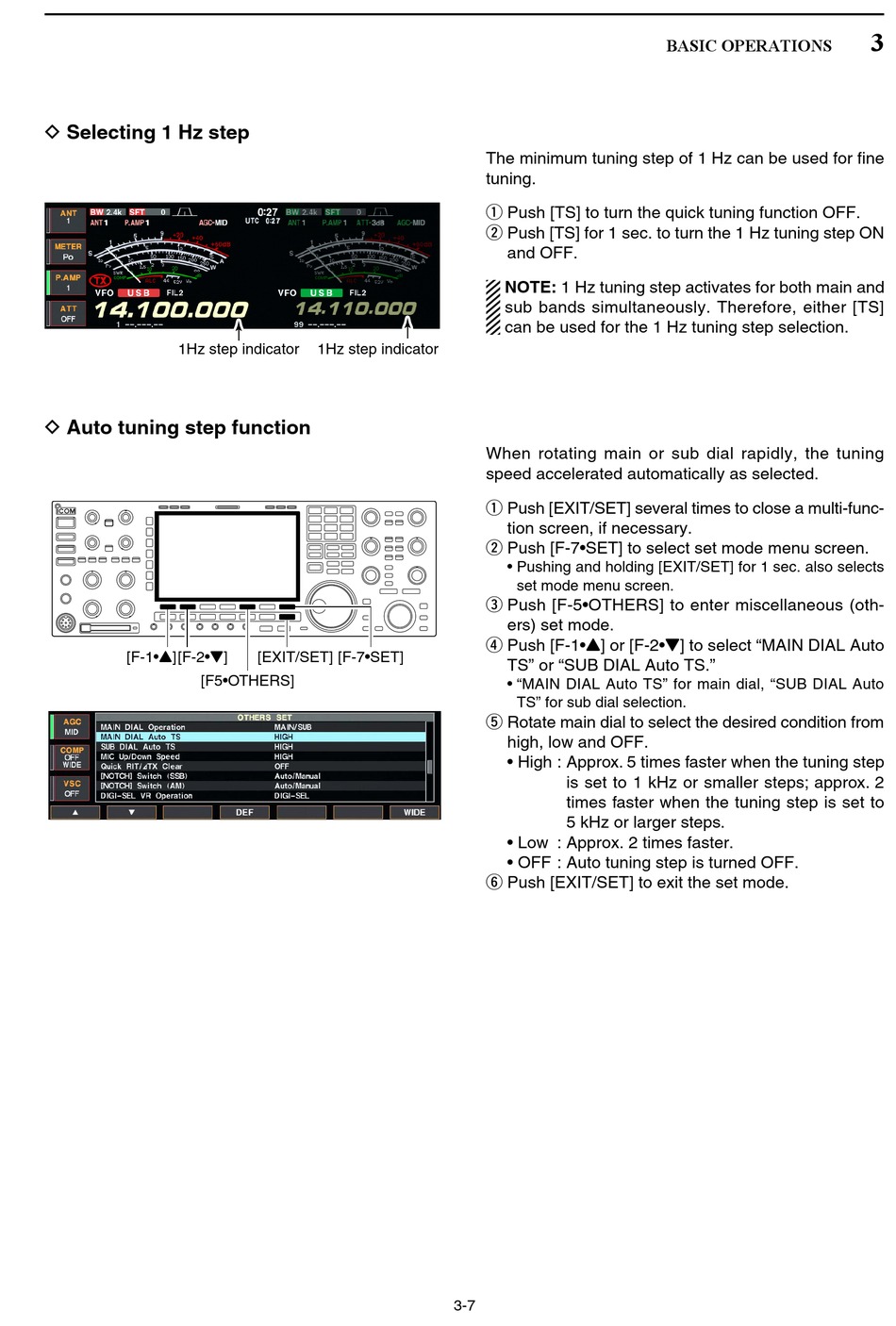

D Selecting 1 Hz step

1Hz step indicator

D Auto tuning step function

[F-1•Y][F-2•Z]
[F5•OTHERS]
1Hz step indicator
[EXIT/SET] [F-7•SET]
The minimum tuning step of 1 Hz can be used for fine
tuning.
q Push [TS] to turn the quick tuning function OFF.
w Push [TS] for 1 sec. to turn the 1 Hz tuning step ON
and OFF.
NOTE: 1 Hz tuning step activates for both main and
sub bands simultaneously. Therefore, either [TS]
can be used for the 1 Hz tuning step selection.
When rotating main or sub dial rapidly, the tuning
speed accelerated automatically as selected.
q Push [EXIT/SET] several times to close a multi-func-
tion screen, if necessary.
w Push [F-7•SET] to select set mode menu screen.
• Pushing and holding [EXIT/SET] for 1 sec. also selects
set mode menu screen.
e Push [F-5•OTHERS] to enter miscellaneous (oth-
ers) set mode.
r Push [F-1•Y] or [F-2•Z] to select "MAIN DIAL Auto
TS" or "SUB DIAL Auto TS."
• "MAIN DIAL Auto TS" for main dial, "SUB DIAL Auto
TS" for sub dial selection.
t Rotate main dial to select the desired condition from
high, low and OFF.
• High : Approx. 5 times faster when the tuning step
is set to 1 kHz or smaller steps; approx. 2
times faster when the tuning step is set to
5 kHz or larger steps.
• Low : Approx. 2 times faster.
• OFF : Auto tuning step is turned OFF.
y Push [EXIT/SET] to exit the set mode.
3-7
