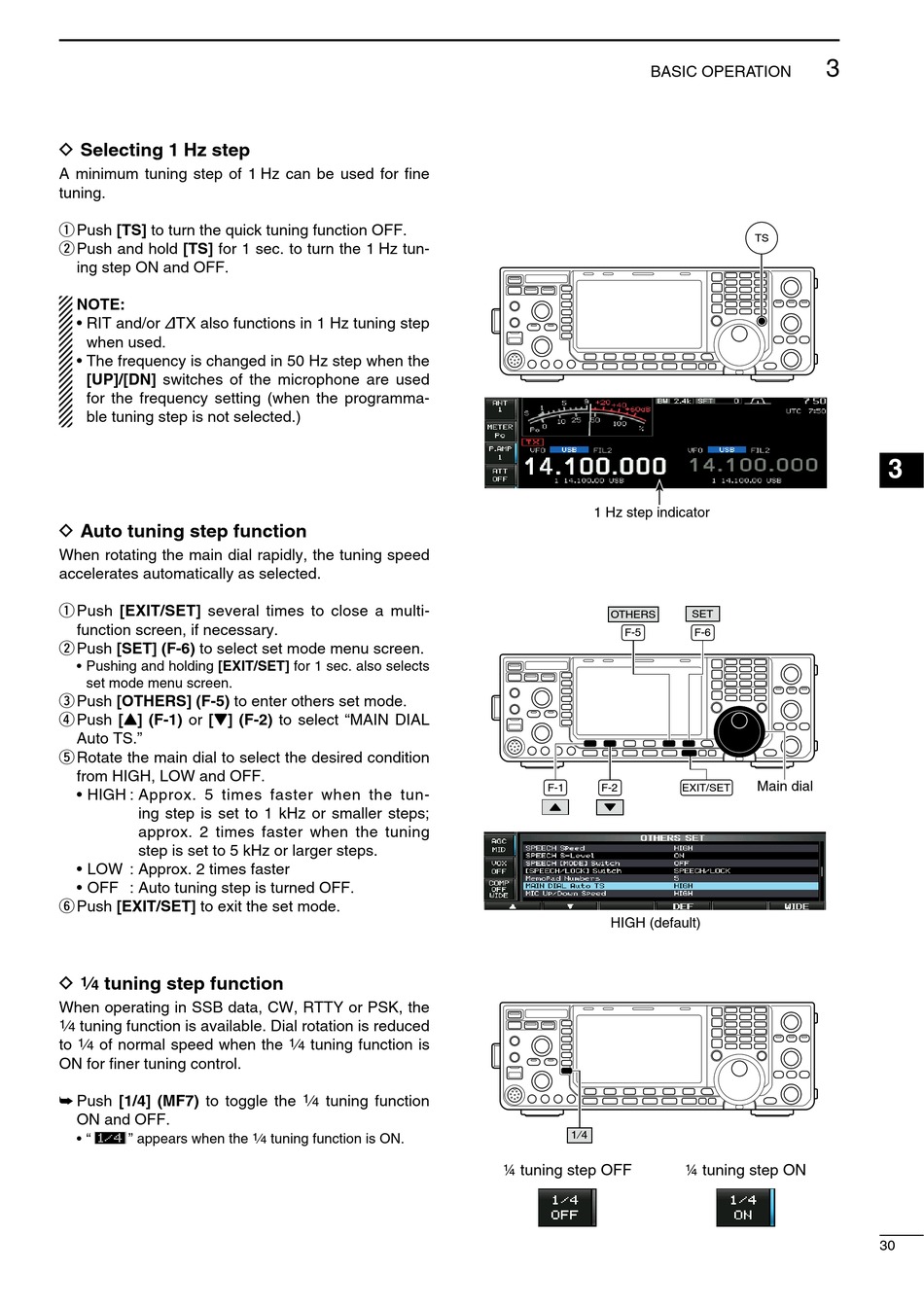

D Selecting 1 Hz step

A minimum tuning step of 1 Hz can be used for fine
tuning.
q Push [TS] to turn the quick tuning function OFF.
w Push and hold [TS] for 1 sec. to turn the 1 Hz tun-
ing step ON and OFF.
NOTE:
• RIT and/or ∂TX also functions in 1 Hz tuning step
when used.
• The frequency is changed in 50 Hz step when the
[UP]/[DN] switches of the microphone are used
for the frequency setting (when the programma-
ble tuning step is not selected.)

D Auto tuning step function

When rotating the main dial rapidly, the tuning speed
accelerates automatically as selected.
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [SET] (F-6) to select set mode menu screen.
• Pushing and holding [EXIT/SET] for 1 sec. also selects
set mode menu screen.
e Push [OTHERS] (F-5) to enter others set mode.
r Push [Y] (F-1) or [Z] (F-2) to select "MAIN DIAL
Auto TS."
t Rotate the main dial to select the desired condition
from HIGH, LOW and OFF.
• HIGH : Approx. 5 times faster when the tun-
ing step is set to 1 kHz or smaller steps;
approx. 2 times faster when the tuning
step is set to 5 kHz or larger steps.
• LOW : Approx. 2 times faster
• OFF : Auto tuning step is turned OFF.
y Push [EXIT/SET] to exit the set mode.
D
1 ⁄ tuning step function
4
When operating in SSB data, CW, RTTY or PSK, the
1
⁄ tuning function is available. Dial rotation is reduced
4
1
to ⁄ of normal speed when the
4
ON for finer tuning control.
Push [1/4] (MF7) to toggle the
ON and OFF.
• " " appears when the
1
⁄ tuning function is
4
1
⁄ tuning function
4
1 ⁄ tuning function is ON.
4
BASIC OPERATION
1 Hz step indicator
OTHERS
F-5
F-1 F-2
HIGH (default)
1 ⁄ 4
¼ tuning step OFF
3
TS
SET
F-6
Main dial
EXIT/SET
¼ tuning step ON
