Page 1: Users Manual

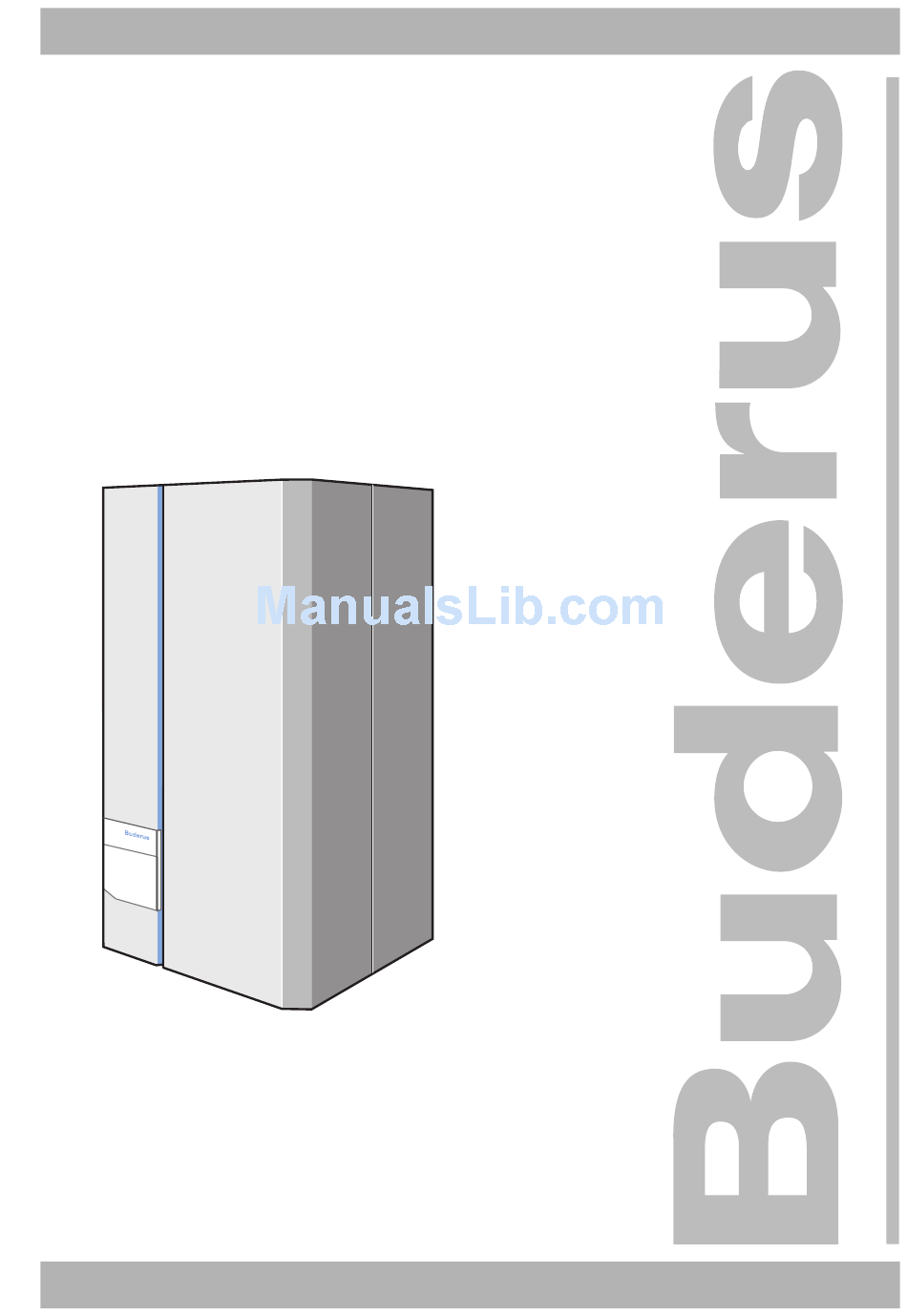

7209 6800 - 11/2003 GB(EN) For the user Users manual Wall-mounted condensing gas boiler 600 - 11S / 19S / 24S / 24C Please read thoroughly before operating the unit... - Page 2 DO NOT use abrasive cleaning materials. Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003...
-
Page 3: Operating Instructions
The room in which the boiler is installed must be frost-proof and be well ventilated. Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003... -
Page 4: Initial Start-Up
(fig. 2) with a screwdriver to the middle setting. Fig. 2 Three-way valve Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003... - Page 5 Shut both stop valves and disconnect the filling loop. °C Fig. 5 Pressure display Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003...
- Page 6 CORGI registered installer. Have the inhibitor concentration checked every year. Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003...
- Page 7 (58 °C, new building) up to controller, 24 V (80 °C, old building)* Basic setting: Have the specific system settings of the Buderus control system and burner-control unit control panel adjusted by a specialist heating system company. Table 1 Flow temperature Subject to modifications resulting from technical improvements! Boulter Buderus Ltd.
- Page 8 Shut cover for 2nd control box and control panel. Fig. 9 2nd control box Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003...
- Page 9 Normal hot water mode Flashing after three start-up attempts. Table 4 Operational and fault codes Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003...
-
Page 10: Taking The System Out Of Service
Open the CH return stop valve to drain the system. Stop Stop valve valve temporary hose Drain Fig. 12 Draining the system Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003... - Page 11 Notes Subject to modifications resulting from technical improvements! Boulter Buderus Ltd. • http://www.boulter-boilers.com Operating instructions for 600 - 11S /19S / 24S / 24C • Edition 11/2003...
- Page 12 Heating system specialist: Boulter Buderus Ltd. Magnet House Whitehouse Road Ipswich Suffolk, IP1 5JA http://www.boulter-boilers.com...
