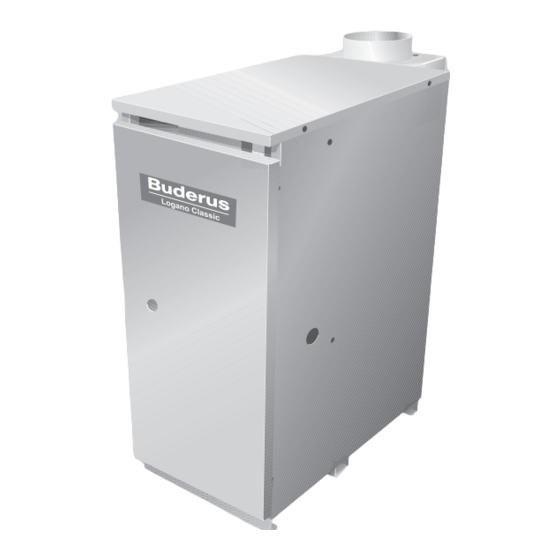

Logano GC 124 II
Gas boiler
WARNING!
Installation, adjustment, modification, operation
or maintenance of the heating system carried out
by unqualified personnel may result in property
damage, personal injury, and loss of life.
The directions of this installation and maintenance
manual must be followed precisely.
Contact a qualified service company, service pro-
vider or the gas company if support or additional
information is required.
CAUTION!
Before placing this boiler in operation observe the
safety instructions of this installation and mainte-
nance manual.
CAUTION!
The operating manual is a component of the tech-
nical documentation handed over to the operator
of the heating system. Discuss the instructions in
this manual with the owner or operator of the heat-
ing system and ensure that they are familiar with all
information required for operation of the heating
system.
In the Commonwealth of Massachusetts
this boiler must be installed by a licensed
plumber or gas fitter.
Keep this installation and maintenance manual
available for future reference.
In the Commonwealth of Massachusetts this boiler
must be installed by a licensed plumber or gas fit-
ter.
C
