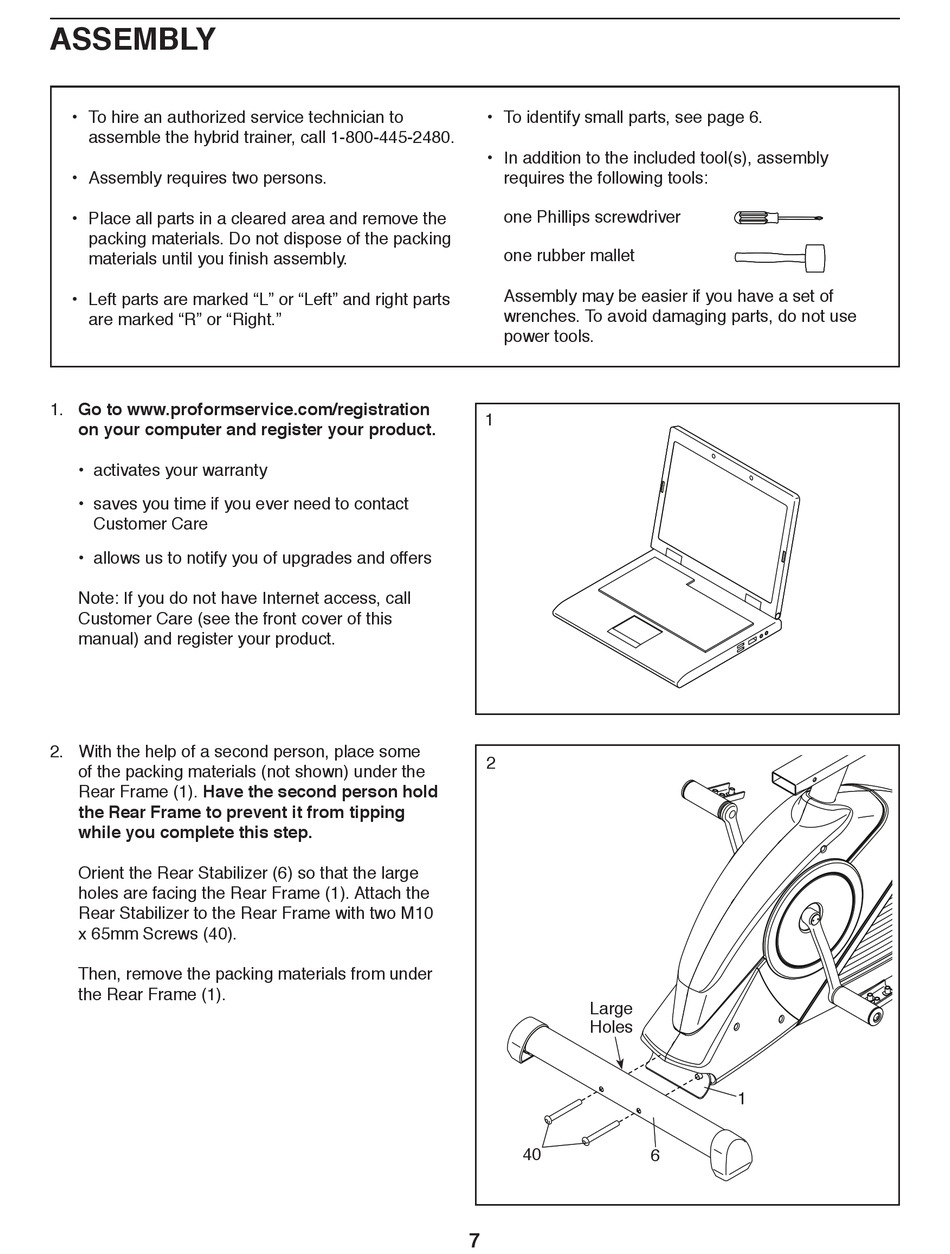

ASSEMBLY

•• To hire an authorized service technician to
assemble the hybrid trainer, call 1-800-445-2480.
•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you  nish assembly.
•• Left parts are marked “"L”" or “"Left”" and right parts
are marked “"R”" or “"Right.”"
1. Go to www.proformservice.com/registration
on your computer and register your product.
•• activates your warranty
•• saves you time if you ever need to contact
Customer Care
•• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
2. With the help of a second person, place some
of the packing materials (not shown) under the
Rear Frame (1). Have the second person hold
the Rear Frame to prevent it from tipping
while you complete this step.
Orient the Rear Stabilizer (6) so that the large
holes are facing the Rear Frame (1). Attach the
Rear Stabilizer to the Rear Frame with two M10
x 65mm Screws (40).
Then, remove the packing materials from under
the Rear Frame (1).
•• To identify small parts, see page 6.
•• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2
Large
Holes
40
7
1
6
