PART IDENTIFICATION CHART

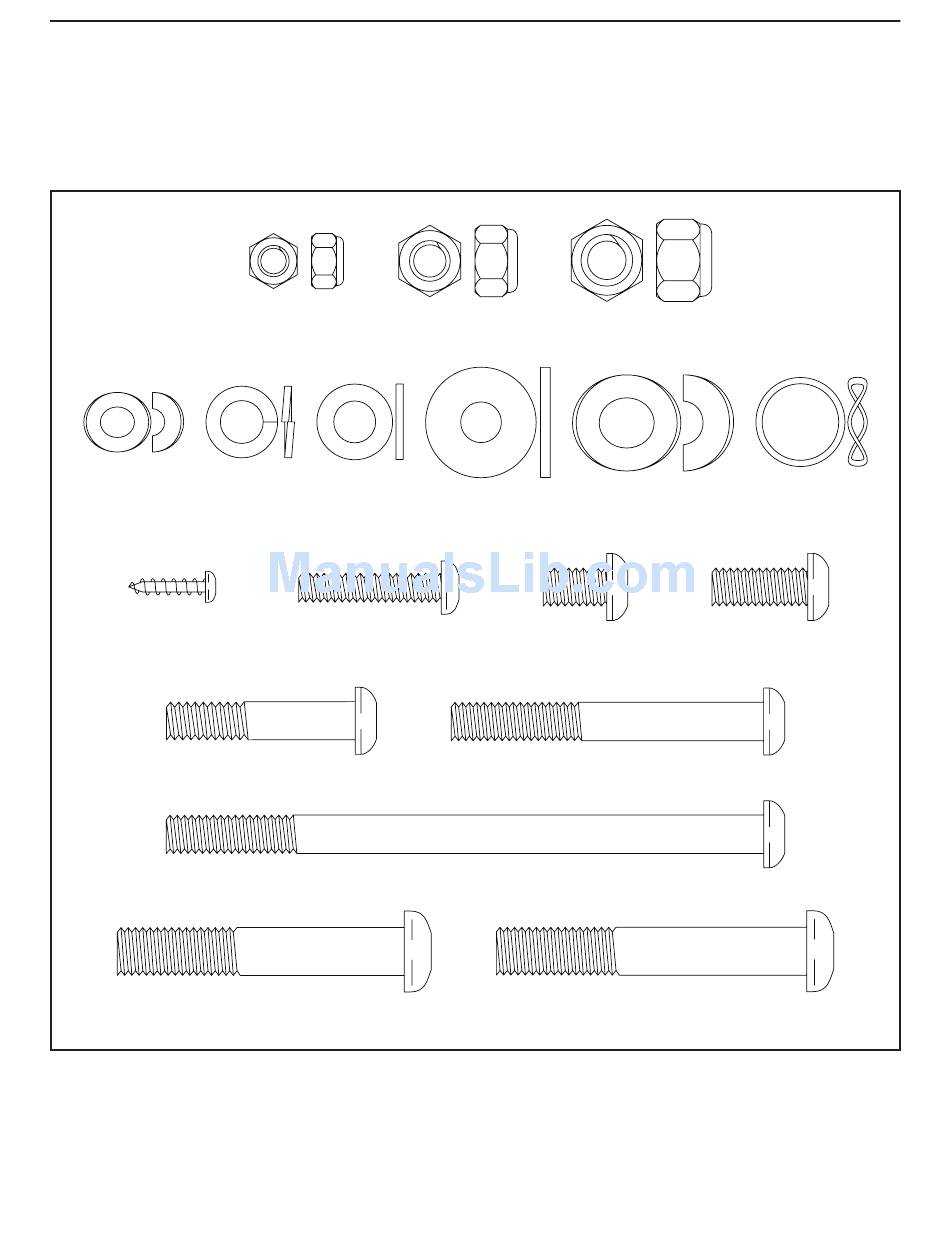

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M6 Curved M8 Split
Washer
Washer
(25)––4
(42)––8
M4 x 16mm
Screw (47)––8
M8 x 40mm Bolt (83)––6
M10 x 60mm Bolt (61)––3
M6 Locknut M8 Locknut
(51)––4
(10)––10
M8 Small
Washer
(93)––4
M6 x 30mm
Bolt (49)––4
M8 x 125mm Bolt (58)––2
M10 Locknut
M8 Large
M10 Curved
Washer (54)––4 Washer (39)––1
M8 x 13mm
Screw (95)––6
M8 x 65mm Bolt (94)––2
M10 x 65mm Screw (40)––4
6
(48)––3
Wave Washer
(81)––4
M8 x 20mm
Screw (34)––4
