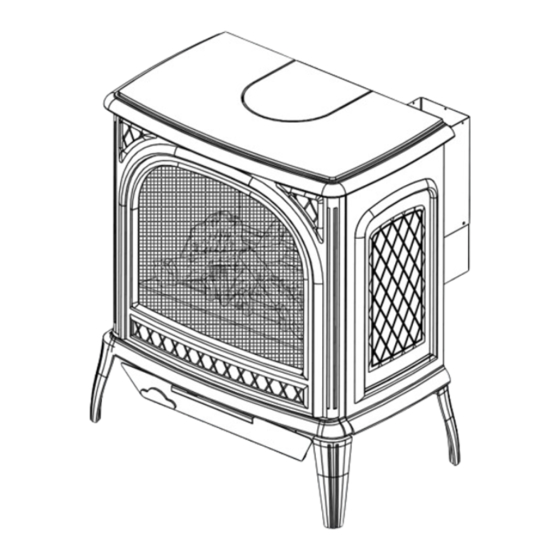

Napoleon gvfs60-N Installation And Operating Instructions Manual

Unvented millivolt system
Hide thumbs Also See for gvfs60-N:
Table of Contents

Advertisement

Quick Links

See also: Installation Instructions and Operating Manual
CERTIFIED UNDER AMERICAN NATIONAL STANDARDS, ANSI Z21.11.2b, vOLUME II FOR UNvENTED ROOM hEATERS.
gvfs60-N
NATURAL GAS MODEL
gvfs60-P
PROPANE GAS MODEL
UNvENTED MILLIvOLT
SySTEM
CERTIFIED FOR THE UNITED STATES USING ANSI METHODS.

SAFETY INFORMATION

WARNING
!
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
- This is an unvented gas-fired heater that uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation
air must be provided.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfireplaces.com • ask@napoleon.on.ca
$10.00
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
MODEL NO.
1
W415-0204 / F / 10.23.08
W415-0204 / F / 10.23.08

Advertisement

Table of Contents
loading

Related Manuals for Napoleon gvfs60-N

Summary of Contents for Napoleon gvfs60-N

  • Page 1: Safety Information

    Serial No. air must be provided. MODEL NO. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfireplaces.com • ask@napoleon.on.ca W415-0204 / F / 10.23.08 $10.00...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTrOduCTION WARRANTy DIMENSIONS GENERAL INSTRUCTIONS GENERAL INFORMATION MObILE hOME ShIPPING bRACkET INsTallaTION COMbUSTION AND vENTILATION AIR PROvISIONS DETERMINING CONFINED OR UNCONFINED SPACE GAS INSTALLATION ELECTRICAL CONNECTION fINIshINg CAST FRONT INSTALLATION LOG PLACEMENT LOGO PLACEMENT blOwEr INsTallaTION OPEraTION maINTENaNCE OXyGEN DEPLETION SENSOR PILOT CLEANING adjusTmENT...

  • Page 3: Introduction

    1.0 INTrOduCTION WARNING • ANY CHANGES TO THIS HEATER OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Under no circumstances should this heater be modified. • Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing and operating the heater.

  • Page 4: Warranty

    NAPOLEON® warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is not necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim. NAPOLEON® reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.

  • Page 5: Dimensions

    dImENSIONS " " " fIgurE 1.2 GENErAL INSTruCTIONS This gas heater should be installed and serviced by a qualified installer to conform with local codes. Installation practices vary from region to region and it is important to know the specifics that apply to your area, for example: in Massachusetts State: •...

  • Page 6: General Information

    GENErAL INFOrmATION WARNING CARBON MONOXIDE POISONING MAY LEAD TO DEATH Early signs of carbon monoxide poisoning resemble the flu, with headache, dizziness and/or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people---pregnant women, persons with heart or lung disease, anemia, those under the influence of alcohol, those at high altitudes--- are more affected by carbon monoxide than others.

  • Page 7: Installation

    2.0 INSTALLATION Provide adequate ventilation and combustion air, see “COmbusTION aNd vENTIlaTION aIr PrOvIsIONs” section. Provide adequate accessibility clearance for servicing and operating the heater. Never obstruct the front opening of the heater. As long as clearance to combustibles is kept within the required distances, the most desirable and beneficial location for a heater is in the centre of a building, thereby allowing the most efficient use of the heat created.

  • Page 8: Determining Confined Or Unconfined Space

    dETErmINING CONFINEd Or uNCONFINEd SpACE To determine the volume of the room where the heater is to be installed, multiply the width x the length x the ceiling height of that room measured in feet. If any adjoining rooms are connected by grilles or openings such as kitchen pass-throughs, etc., the volume of those rooms may be added to the total.

  • Page 9: Gas Installation

    EXAMPLE 1: In this example, because there is no door to the adjoining room, the volume of the adjoining room may be added to the volume of the room with the heater to get a total unconfined space. The total unconfined space: 800 + 1200 = 2000 cubic feet. Maximum BTU/h: 2000x1000 = 40,000 BTU/h EXAMPLE 2: If in this example a solid door separates Room 1 from Room 2, the volume of Room 2 could not be used.

  • Page 10: Finishing

    Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. Phazer logs glow when exposed to direct flame and provide a unique and realistic glowing effect. Use only certified Phazer logs available from your Napoleon dealer. fIgurE 3.2a Place log #1 onto the burner, centering it onto the burner tray and pushing it as close to the rear wall of the firebox as possible.

  • Page 11: Logo Placement

    The notch in log #5 should be pressed down onto the fIgurE 3.2b skewering pin located at the end of the grate as shown to prevent it from rocking. Position the notch located in log #6 against the grate post. fIgurE 3.2c Place the bottom of log #7 against the right outermost fIgurE 3.2d...

  • Page 12: Blower Installation

    4.0 BLOwEr INSTALLATION ON/Off 4.0.1 Ensure that the access cover plate has been installed. swITCh braCkET 4.0.2 Remove the on/off switch bracket and the cover plate below it. The cover plate may now be discarded. 4.0.3 Decide which side of the blower housing you prefer the COvEr on/off switch to be located on.

  • Page 13: Operation

    5.0 OpErATION If heater shuts off, do not relight until you provide fresh air. If heater keeps shutting off, have it serviced. Keep burner and control compartment clean. When lit for the first time, the fireplace will emit a slight odour for a few hours. This is a normal temporary condition caused by the curing of the logs and the “burn-in”...

  • Page 14: Oxygen Depletion Sensor Pilot Cleaning

    OXyGEN dEpLETION SENSOr pILOT CLEANING This procedure must be performed by a qualified service person! Inspect the pilot for any visible contamination or debris fIgurE 7.1.0a fIgurE 7.1.0b (usually lint, pet hair, spider webs, carpet fibre, etc.) CORRECT PILOT INCORRECT and remove.

  • Page 15: Replacements

    LOG #3 W135-0210 LOG #4 W135-0211 LOG #5 W135-0212 LOG #6 W135-0213 LOG #7 W361-0079 GLOWING EMbERS W385-0334 NAPOLEON LOGO W565-0038 SCREEN GS830-k bLACk TRIvET W135-0069** SIDE (LEFT OR RIGhT) W135-0073** W135-0068** LEG EA. W135-0074 bASE PAINT FINISH ONLY TP - REPLACEMENT...
  • Page 16 ACCESSOrIES ParT NO. dEsCrIPTION W690-0011b REMOTE CONTROL - ADVANTAGE PLUS GDSLL-kT LEvELLING / SECURING kIT GS-SSv ** CAST SIDE ShELvES - LEFT & RIGhT GS-64kT bLOWER kIT GS830-G GOLD TRIvET GS830-C ChROME TRIvET W550-0001 ChARCOAL EMbERS W380-0002 vARIAbLE SPEED SWITCh kNOb kb-35 vARIAbLE SPEED SWITCh F_E**...

  • Page 17: Trouble Shooting

    9.0 TrOuBLE ShOOTING SYMPTOM PROBLEM TEST SOLUTION Main burner goes out; Pilot flame is not large enough or - Turn up the pilot flame. pilot stays on. not engulfing the thermopile. - Replace pilot assembly. Thermopile shorting. - Clean thermopile connection tot he valve. Reconnect. - Replace thermopile / valve.
  • Page 18 SYMPTOM PROBLEM TEST SOLUTION Pilot goes out while Gas piping is undersized. - Turn on all gas appliances and see if pilot flame flutters, standing; Main burner diminishes or extinguishes, especially when main burner is in ‘OFF’ position. ignites. Monitor appliance supply working pressure. - Check if supply piping size is to code.

  • Page 19: Service History

    10.0 SErvICE hISTOry TP - SERvICE hISTORy W415-0204 / F / 10.23.08...

  • Page 20: Notes

    11.0 NOTES NOTES TP - NOTES W415-0204 / F / 10.23.08...
