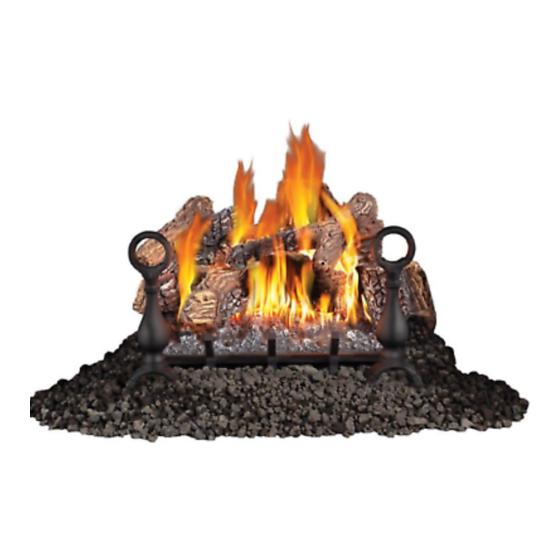

Napoleon GVFL18N Installation And Operating Instrictions
Napoleon gvfl18n; gvfl24n; gvfl30n; gvfl18p; gvfl24p; gvfl30p gas fireplaces
Hide thumbs
Also See for GVFL18N:
- Installation and operation manual (28 pages) ,
- Installation and operating instructions manual (24 pages) ,
- Installation and operation instructions manual (12 pages)
Table of Contents
Advertisement
Quick Links
These log sets can be installed in vented or unvented applications. See installation details for the
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER: ANSI Z21.11.2B-2004 GAS FIRED ROOM HEATER : VOLUME II, UNVENTED ROOM HEATERS
ANSI Z21.60-2002 / CSA 2.26-2002 DECORATIVE GAS APPLIANCES FOR INSTALLATION IN SOLID-FUEL BURNING APPLIANCES
GVFL18N, GVFL24N,
GVFL30N
NATURAL GAS
GVFL18P, GVFL24P,
GVFL30P
PROPANE
CERTIFIED FOR THE UNITED STATES USING ANSI METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
- This is an unvented gas-fi red heater that
uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and
ventilation air must be provided.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca
$10.00
particular application that applies.
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
GVFL18
GVFL24
GVFL30
1.3
W415-0809 / 07.13.09
1
Advertisement
Table of Contents
Related Manuals for Napoleon GVFL18N
Summary of Contents for Napoleon GVFL18N
-
Page 1: Safety Information
Provisions for adequate combustion and ventilation air must be provided. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca W415-0809 / 07.13.09... -
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION WARRANTY GENERAL INSTRUCTIONS GENERAL INFORMATION MINIMUM APPLIANCE SIZE GAS PIPING INSTALLING IN AN UNVENTED APPLICATION COMBUSTION AND VENTILATION AIR PROVISIONS DETERMINING CONFINED OR UNCONFINED SPACE 2.2.1 EXAMPLE 1 2.2.2 EXAMPLE 2 INSTALLING IN A VENTED APPLICATION DAMPER STOP INSTALLATION FINISHING ANDIRON AND GRATE ASSEMBLY... -
Page 3: Introduction
1.0 INTRODUCTION WARNING • ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Under no circumstances should this appliance be modifi ed. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi... -
Page 4: Warranty
This warranty defi nes the obligations and liability of NAPOLEON® with respect to the NAPOLEON® gas logs and any other warranties expressed or implied with respect to this product, its components or accessories are excluded. NAPOLEON® neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. -
Page 5: General Instructions
Sellers of un-vented propane or natural gas-fi red space/room appliances shall provide to each pur- chaser a copy of 527 CMR 30.00 upon the sale of the appliance from http://www.napoleonfi replaces.com/Webshare/installation_manuals/mass_requirements.pdf • A carbon monoxide detector is required in all rooms containing gas fi red appliances. -
Page 6: General Information
Napoleon’s two vent free fi rebox enclosures the ZCVF 36/42 the U.S. by the National can be used to house all 3 of Napoleon’s vent free log sets, Fireplace Institute ® (NFI) as the GVFL 18, 24 and 30. -
Page 7: Gas Piping
GAS PIPING WARNING DO NOT CONNECT EITHER THE WALL SWITCH, THERMOSTAT OR GAS VALVE TO ELECTRICITY (110 VOLTS). This appliance must be isolated from the gas supply piping system by closing the individual manual shut off valve during any pressure testing of the gas supply piping system at test pressure equal to or less than ½ psi (3.5 kPa) Manual Regulator... -
Page 8: Installing In An Unvented Application
2.0 INSTALLING IN AN UNVENTED APPLICATION WARNING BARRIERS SUCH AS THE BOTTOM OF A GLASS DOOR FRAME PLACED IN FRONT OF A GAS LOG SET CAN CHANGE THE AIR FLOW CHARACTERISTICS OF THE APPLIANCE WHICH IN TURN CAN CAUSE THE APPLIANCE TO CARBON OR OVERHEAT AND MALFUNCTION. During manufacturing, fabricating and shipping various components of this appliance are treated with certain oils, fi... -
Page 9: Example
An unvented room appliance is recommended for use as a secondary heat source rather than as a primary source. Gas combustion produces water vapour which could occur at the rate of approximately one ounce of water for every 1,000 BTU/hr of gas input. During the cold weather season, indoor humidity levels tend to be low. -
Page 10: Installing In A Vented Application
3.0 INSTALLING IN A VENTED APPLICATION The appliance and gas logs function as a system. If the appliance is not drafting properly and spilling into the room (check with a match or a smoke stick), reposition the damper clamp until a positive draft is obtained by opening the damper. -
Page 11: Log Placement
Do not place glowing embers, charcoal embers, vermiculite or charcoal lumps on this burner. Phazer logs, exclusive to Napoleon Appliances, provide a unique and realistic glowing effect that is different in every installation. These logs are fuel specifi c. Do not interchange. Refer to the replacement parts list. -
Page 12: Logo Placement
LOGO PLACEMENT Remove the backing of the logo supplied. Centre the logo on the front of the appliance, ½” in from the left side, as shown. ½" ½" MEDIA GVFL 18 4.4.1 Place lava or ember rock around the base of the appli- ance, making sure not to block any burner ports or valve access. -
Page 13: Rating Plate
RATING PLATE THIS APPLIANCE IS NOT FIELD CONVERTIBLE FOR USE WITH OTHER GASES. REFERENCE # W/N 15533 THE RATING PLATE IS CHAINED TO THE PIEZO IGNITOR BRACKET AND SHOULD BE TUCKED UNDER THE ENTIRE ASSEMBLY W415-0809 / 07.13.09... -
Page 14: Operating Instructions
5.0 OPERATING INSTRUCTIONS If the appliance is equipped with decorative glass doors, they must be fully opened when operating this gas log set. LIGHTING INSTRUCTIONS 5.1.1 Locate the pilot burner at the rear of the log set on the right side. -
Page 15: Operation
6.0 OPERATION WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 16: Adjustments
7.0 ADJUSTMENTS AIR SHUTTER WARNING CARBON CAN BE DISTRIBUTED IN SURROUNDING LIVING AREAS IF THE AIR SHUTTER IS IMPROPERLY ADJUSTED. The air shutter settings are factory set for most installations. However, LOG SET AIR SHUTTER adjustment may be required depending on fuel type, vent performance and FUEL altitude. -
Page 17: Replacements
#49 ORIFICE - LP W660-0023 ON / OFF SWITCH W725-0030 VALVE - NG W725-0031 VALVE - LP W385-0334 NAPOLEON LOGO W662-0003 NATURAL GAS - OXYGEN DEPLETION SENSOR W662-0004 PROPANE GAS - OXYGEN DEPLETION SENSOR W135-0394 FIBRE BURNER COVER W010-2120 WELDED BURNER ASSEMBLY... - Page 18 W415-0809 / 07.13.09...
-
Page 19: Service History
10.0 SERVICE HISTORY 43.1 W415-0809 / 07.13.09... -
Page 20: Notes
11.0 NOTES 44.1 W415-0809 / 07.13.09... - Page 21 44.1 W415-0809 / 07.13.09...
