Getting Started

Getting Started
Combining a powerful 760 channel VHF
communications transceiver with 200 channel VOR,
Localizer and Glideslope receivers, the SL30 provides a
full-functioned navigation and communications solution
in a small footprint at a very affordable price. Besides
traditional Nav/Comm features, the SL30 also
incorporates workload-reducing functions such as
automatic decoding of the Morse code station identifier
for VOR/LOC, most-used frequency storage in memory,
built-in course deviation indicator, and more.
The SL30, the smallest Nav/Comm on the market, is
loaded with features and functionality. The only
Nav/Comm with the ability to monitor the standby
Comm and Nav frequencies, the SL30 VHF Nav receiver
operates from 108 MHz to 117.95 MHz decoding both the
VHF Omni Range and Localizer navigation signals. The
built in Glideslope receiver will automatically tune the
corresponding glideslope paired frequencies (328 MHz to
335 MHz) when the localizer is tuned. The SL30 includes
the powerful yet efficient 8 watt comm transmitter used in
the other SL Slimline and GX avionics.

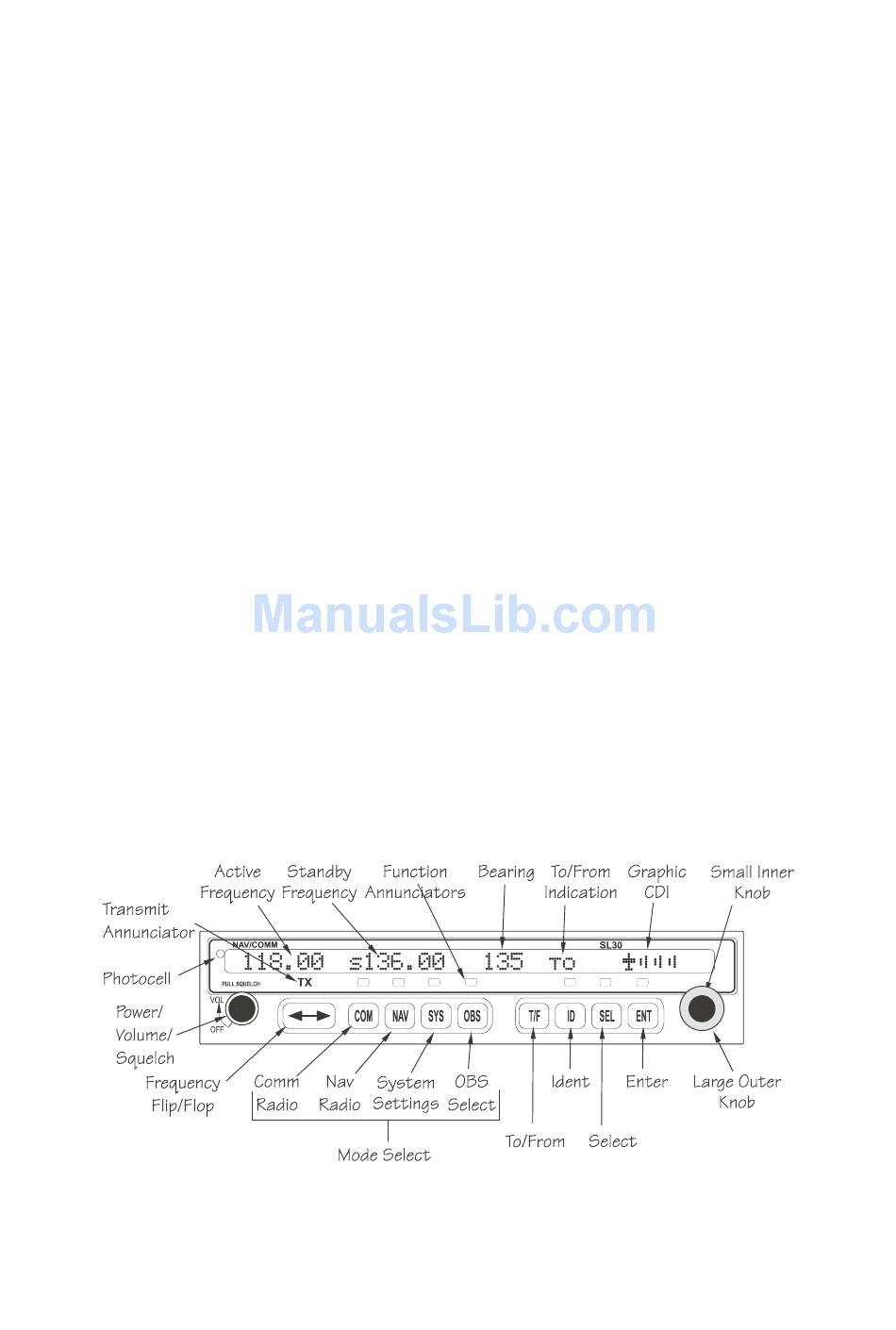

Figure 1 - SL30 Front Panel Description
