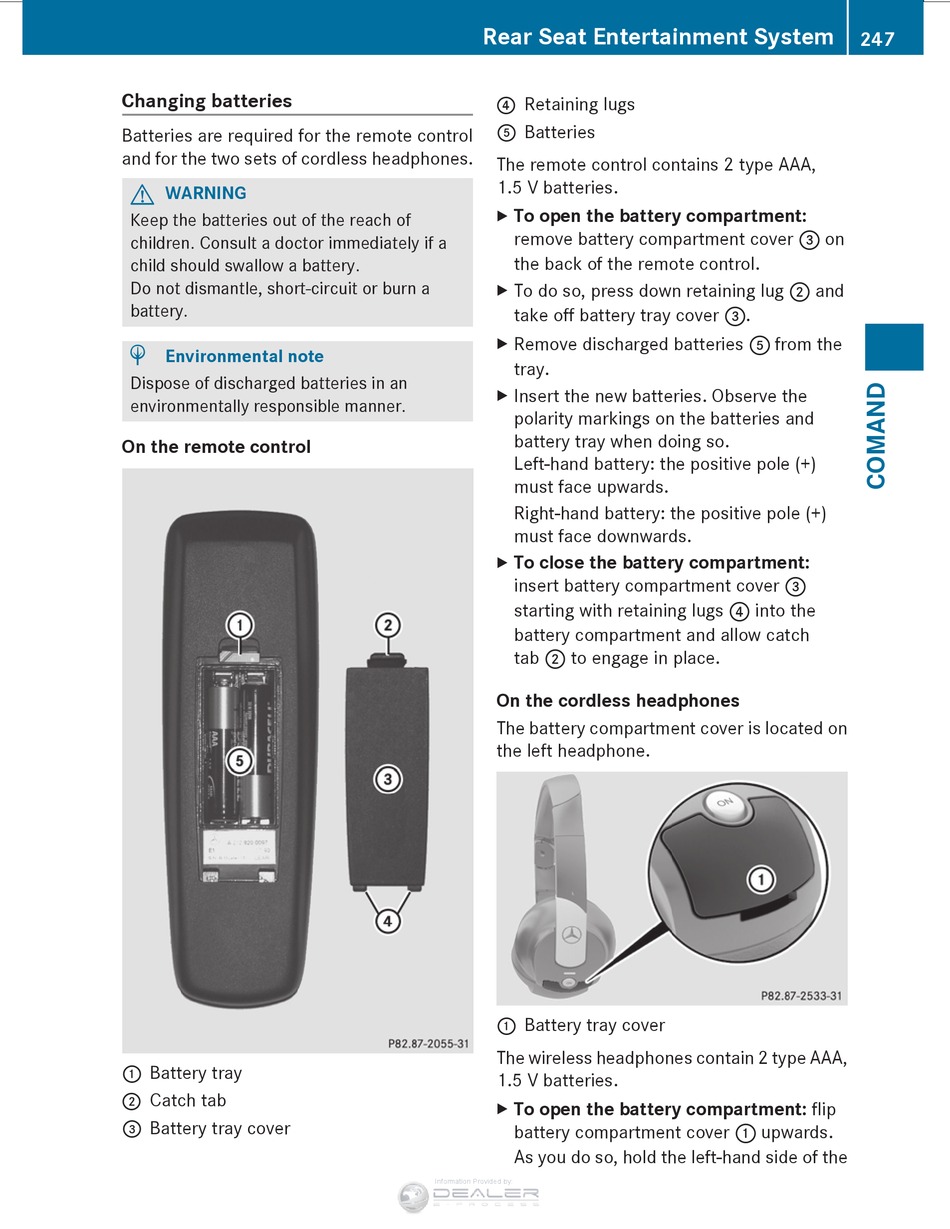

Mercedes-Benz S-Class Operator's Manual page 249

Changing batteries
Batteries are required for the remote control
and for the two sets of cordless headphones.
G
WARNING
Keep the batteries out of the reach of
children. Consult a doctor immediately if a
child should swallow a battery.
Do not dismantle, short-circuit or burn a
battery.
H
Environmental note
Dispose of discharged batteries in an
environmentally responsible manner.
On the remote control
Battery tray
:
Catch tab
;
Battery tray cover
=
Rear Seat Entertainment System
Retaining lugs
?
Batteries
A
The remote control contains 2 type AAA,
1.5 V batteries.
X
To open the battery compartment:
remove battery compartment cover = on
the back of the remote control.
X
To do so, press down retaining lug ; and
take off battery tray cover =.
X
Remove discharged batteries A from the
tray.
X
Insert the new batteries. Observe the
polarity markings on the batteries and
battery tray when doing so.
Left-hand battery: the positive pole (+)
must face upwards.
Right-hand battery: the positive pole (+)
must face downwards.
X
To close the battery compartment:
insert battery compartment cover =
starting with retaining lugs ? into the
battery compartment and allow catch
tab ; to engage in place.
On the cordless headphones
The battery compartment cover is located on
the left headphone.
Battery tray cover
:
The wireless headphones contain 2 type AAA,
1.5 V batteries.
X
To open the battery compartment: flip
battery compartment cover : upwards.
As you do so, hold the left-hand side of the
