Control cooling fan removal

1.
Remove the bottom plate. See
2.

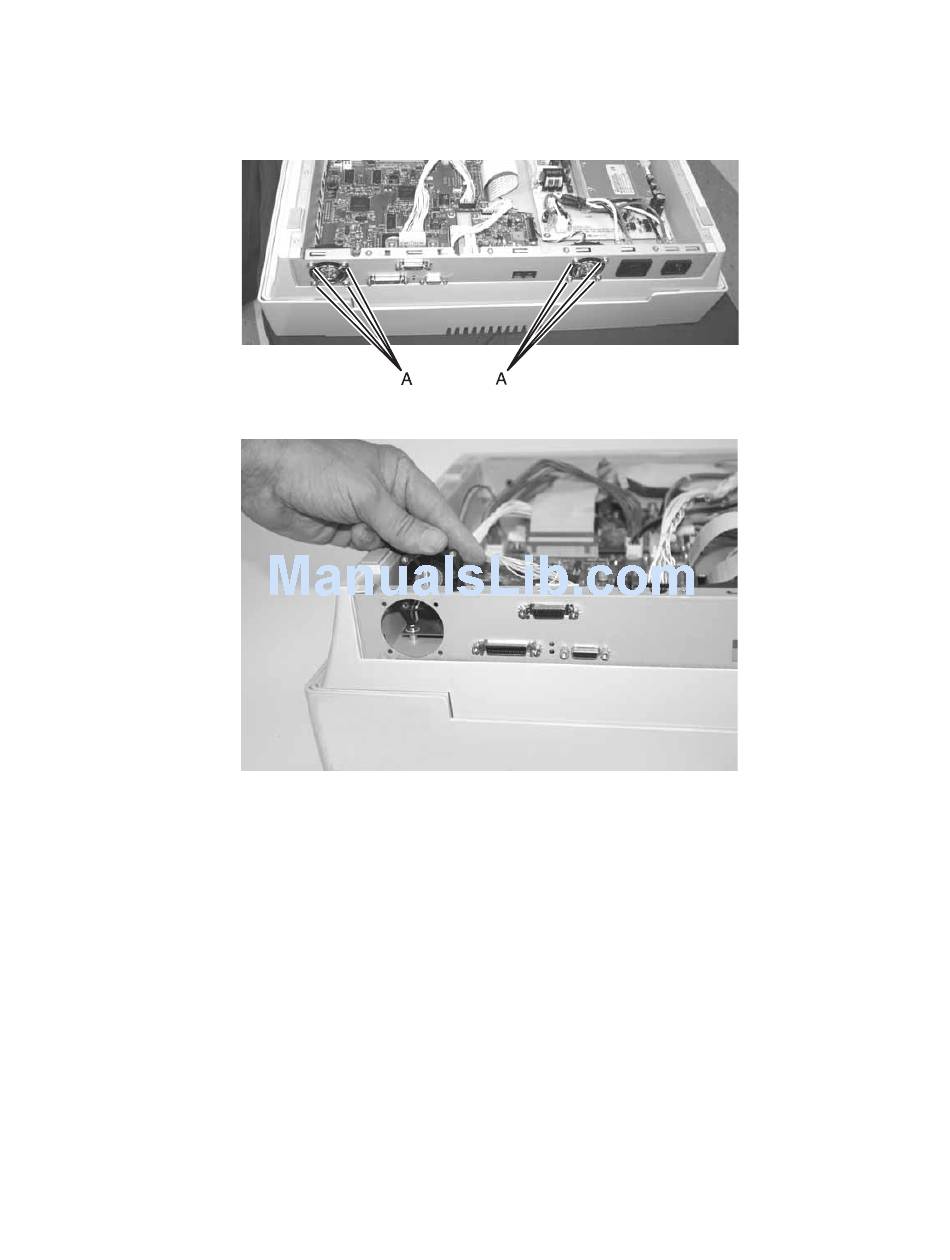

Remove the four screws (A) from the fan you need to remove.
3.
Remove the cables from their retainers.
4.
Remove either fan from the inside, and disconnect the cable from the A1 board.
"Bottom plate removal" on page
4036-307, -308
4-35.
Repair information
4-41
