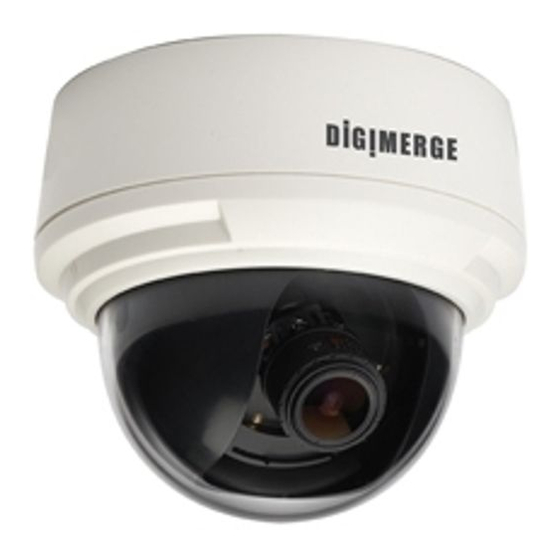

Ultra resolution day & night dome camera
Hide thumbs
Also See for DPV24D:
- Instruction manual (15 pages) ,
- Instruction manual (29 pages) ,
- Instruction manual (14 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Instruction Manual
Advertisement
Table of Contents
Related Manuals for Digimerge DPV24D
Summary of Contents for Digimerge DPV24D
- Page 1 INSTRUCTION MANUAL Ultra Resolution Day & Night Dome Camera Ultra Resolution Vandal Models: DPV24D / DPV24TLX Day & Night Dome Camera Indoor Models: DPD23D / DPD24D P/N 01.BSM.11.0070201D Please read this manual thoroughly before use and keep it handy for future reference.
-
Page 3: Specifications
INTRODUCTION Features All Models Feature: DPD24D • 1/3” Sony Super HAD™ II CCD • Indoor Dome Model • Excellent low light performance using • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris Polaris Vision 2 technology. • 0.15 Lux / F1.2 (Color) DPV24D 0.001 Lux w/Sense-Up at x256 • 600 TV lines(Color) of resolution • Vandal Resistant Dome Model • 3D Digital Noise Reduction (3D-DNR) • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris • OSD menu control • Privacy Masking / Motion Detection DPV24TLX • VIDEO OUT(BNC) • Operates in 12VDC or 24VAC • Vandal Resistant Dome Model • Test Monitor Output • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris... -
Page 4: Packing Contents
MEASUREMENTS PACKING CONTENTS 97.0 mm 3.82 in Indoor Dome package contains the following: Camera in housing ---------------------------------1 55.5 mm Camera Locking screws (PA3 Type) -----------2 2.19 in 3.4" Instruction guide (This Document) -------------1 87 mm Surface & Flush Mounting Templates----------2 Locking Conduit Allen Key... -
Page 5: Junction Box Installation Types
JUNCTION BOX INSTALLATION TYPES VANDAL DOME FITTINGS 2S FITTING 2S Fitting requires only 2pcs of base attachment screws. Note: You have a reduced space in which Screws to hide cables using this type of installation. Recommended for indoor dome only. Cable Entry Pendant Cap - model # MNTV2XPC... -
Page 6: Installation. Vandal Dome
INSTALLATION. VANDAL DOME INSTALLATION. VANDAL DOME DPV24TLX ONLY When using DC power, note the correct polarity stated on the label attached to the power cord. 4) Remove camera cover by squeezing the back and front 1) Remove the three tamper screws using the provided of the cover as indicated by the “PRESS”... - Page 7 INSTALLATION. INDOOR DOME INSTALLATION. INDOOR DOME (Surface Fitting) (Semi-Flush Fitting) 1a) Press down on the tab marked with an arrow to lift 1a) Press down on the tab marked with an arrow to lift up the dome cover slightly up the dome cover slightly 1b) While pressing on tab, twist the dome cover 1b) While pressing on tab, twist the dome cover counter- counter clockwise just a few degrees to release...
-
Page 8: Camera Adjustment
CAMERA ADJUSTMENT CAMERA ADJUSTMENT Menu Setup LENS Using this function, you can control screen brightness. 1. Highlight 'LENS' in the main setup menu 2. Press the joystick to access the DC lens setup menu. 3. After completing setting update, highlight 'RETURN' to save setting and return to previous menu RCA Service Connector Use supplied RCA - BNC cable OSD function joystick. - Page 9 CAMERA ADJUSTMENT CAMERA ADJUSTMENT SENSE-UP BACKLIGHT (BLC) The BLC menu is used to adjust backlight compensation function to sharpen subjects in backlight situations EXPOSURE SHUTTER 1/60 MIDDLE SENSE-UP AUTO EXPOSURE 1. Highlight 'BLC' in the exposure setup menu. D-WDR SHUTTER 1/60 2.
- Page 10 CAMERA ADJUSTMENT CAMERA ADJUSTMENT Wide Dynamic Range (E-WDR) SETUP 1. LENS D-WDR : The D-WDR menu is used to adjust dynamic range of the camera electronically. 2. EXPOSURE This is especially useful in high contrast scenes in order to brighten up 3.
- Page 11 CAMERA ADJUSTMENT CAMERA ADJUSTMENT DAY/NIGHT Digital Noise Reduction (3D DNR) The DAY/NIGHT menu is used to configure the day and night related settings for the camera. This function reduces the background noise in a low luminance environment. 1.Highlight '3DNR' in the main setup menu. 1.
- Page 12 CAMERA ADJUSTMENT CAMERA ADJUSTMENT SPECIAL. 1. Highlight 'SPECIAL' in the main setup menu. Notes • When the CAM TITLE is OFF no title will be displayed on the monitor even if you SETUP had previously setup a name. This is the master display setting. 1.
- Page 13 CAMERA ADJUSTMENT CAMERA ADJUSTMENT D-EFFECT: Applies digital effects to camera image. MOTION: 1. Highlight 'D-EFFECT' in the SPECIAL setup menu. You can monitor activity more efficiently, because a signal is generated by the camera whenever motion is detected. Visual notification is also available. SPECIAL 1.
-
Page 14: Troubleshooting
CAMERA ADJUSTMENT TROUBLE SHOOTING PRIVACY: PRIVACY Refer to the following table if you are experiencing trouble with your camera. AREA SELECT AREA� Hide an area so that it is not displayed on the monitor. Contact an authorized technician if the table does not provide you with a AREA DISPLAY ON COLOR |--------�...
