4-9-2 SOFTWARE ADJUSTMENTS (RECEIVE)
Push [F-5] (RX) to enter the RECEIVE ADJUSTMENT MODE.

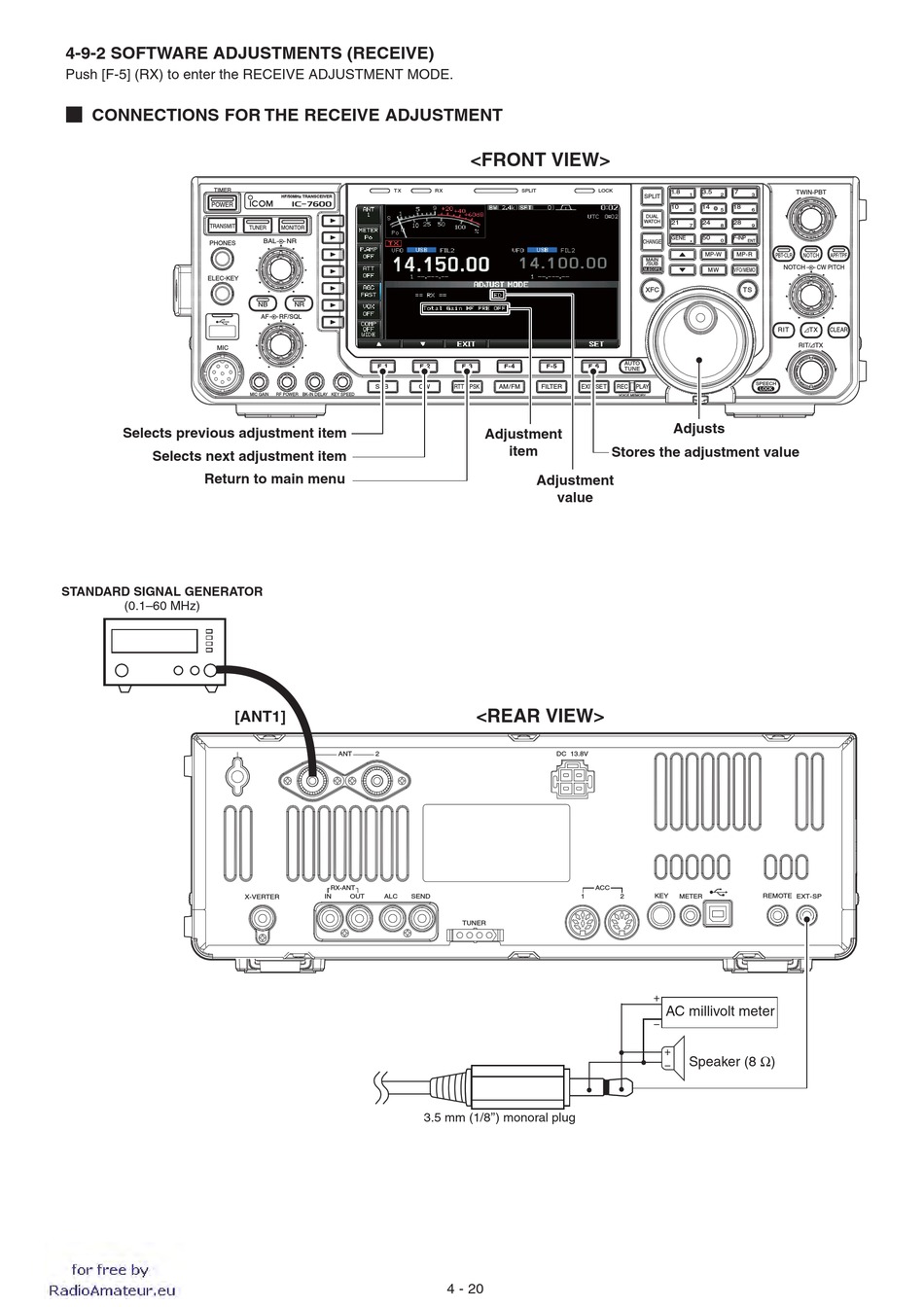

¤ CONNECTIONS FOR THE RECEIVE ADJUSTMENT
TIMER
POWER
TRANSMIT
PHONES
ELEC-KEY
MIC
Selects previous adjustment item
Selects next adjustment item
Return to main menu
STANDARD SIGNAL GENERATOR
(0.1–60 MHz)
[ANT1]
T X
HF/50MHz TRANSCEIVER
TUNER MONITOR
BAL NR
NB NR
AF RF/SQL
F- 1 F- 2
SSB CW
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
1 ANT 2
RX-ANT
IN OUT ALC SEND
X-VERTER
<FRONT VIEW>
RX SPLIT LOCK
F- 3 F- 4 F- 5 F- 6
RTTY/PSK AM/FM FILTER EXIT/SET
Adjustment
item
Adjustment
value
<REAR VIEW>
DC 13.8V
ACC
1
TUNER
3.5 mm (1/8'') monoral plug
4 - 20
1.8 3.5 7
1 2 3
SPLIT
10 14 18
4 5 6
DUAL
WATCH 21 24 28
7 8 9
GENE 50 F-INP
0 ENT
CHANGE
MP-W MP-R PBT - CLR
MAIN
/SUB
NOTCH
MW VFO/MEMO
XFC TS
RIT
AUTO
TUNE
SPEECH
REC PLAY
LOCK
VOICE MEMORY
Adjusts
Stores the adjustment value
2 KEY METER REMOTE EXT-SP
+
AC millivolt meter
−
+
Speaker (8 Ω)
−
TWIN-PBT
NOTCH APF/TPF
CW PITCH
TX CLEAR
RIT/ TX
