Icom IC-7600 Service Manual page 33

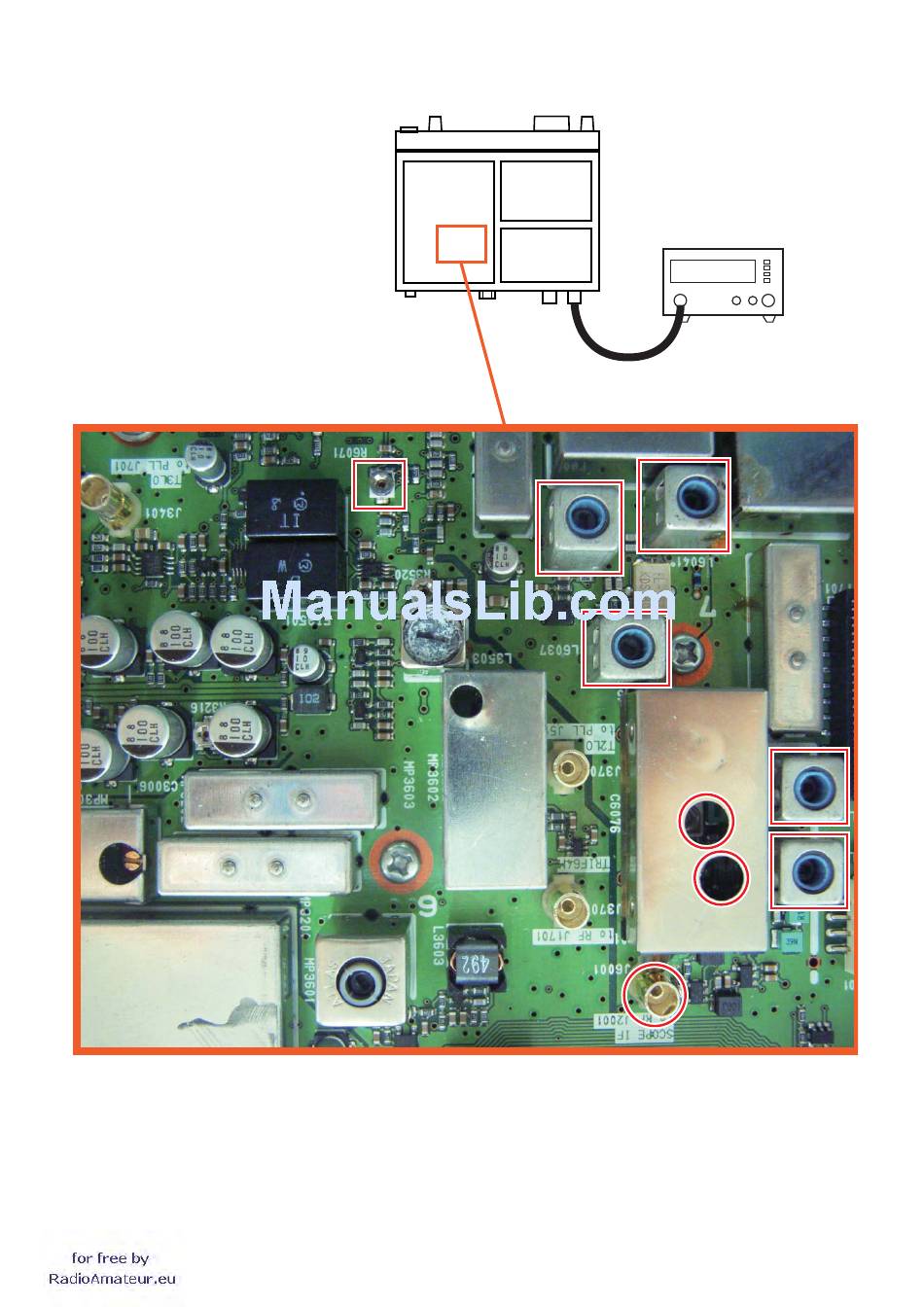

<Viewing from the BOTTOM side>
MAIN UNIT
R6071 R6071
SCOPE GAIN SCOPE GAIN
SCOPE DISPLAY SCOPE DISPLAY
(SSG CONECT POINT) (SSG CONECT POINT)
4 - 14
PLL UNIT
STANDARD SIGNAL GENERATOR
(0.1–60 MHz)
RF UNIT
[ANT1]
L6032 L6032
SCOPE DISPLAY SCOPE DISPLAY
L6037 L6037
SCOPE DISPLAY SCOPE DISPLAY
C6076 C6076
SCOPE DISPLAY SCOPE DISPLAY
R6043 R6043
SCOPE ATTENUATION SCOPE ATTENUATION
J6001 J6001
L6041 L6041
SCOPE DISPLAY SCOPE DISPLAY
L6028 L6028
SCOPE DISPLAY SCOPE DISPLAY
L6023 L6023
SCOPE DISPLAY SCOPE DISPLAY
