Icom IC-7600 Service Manual page 26

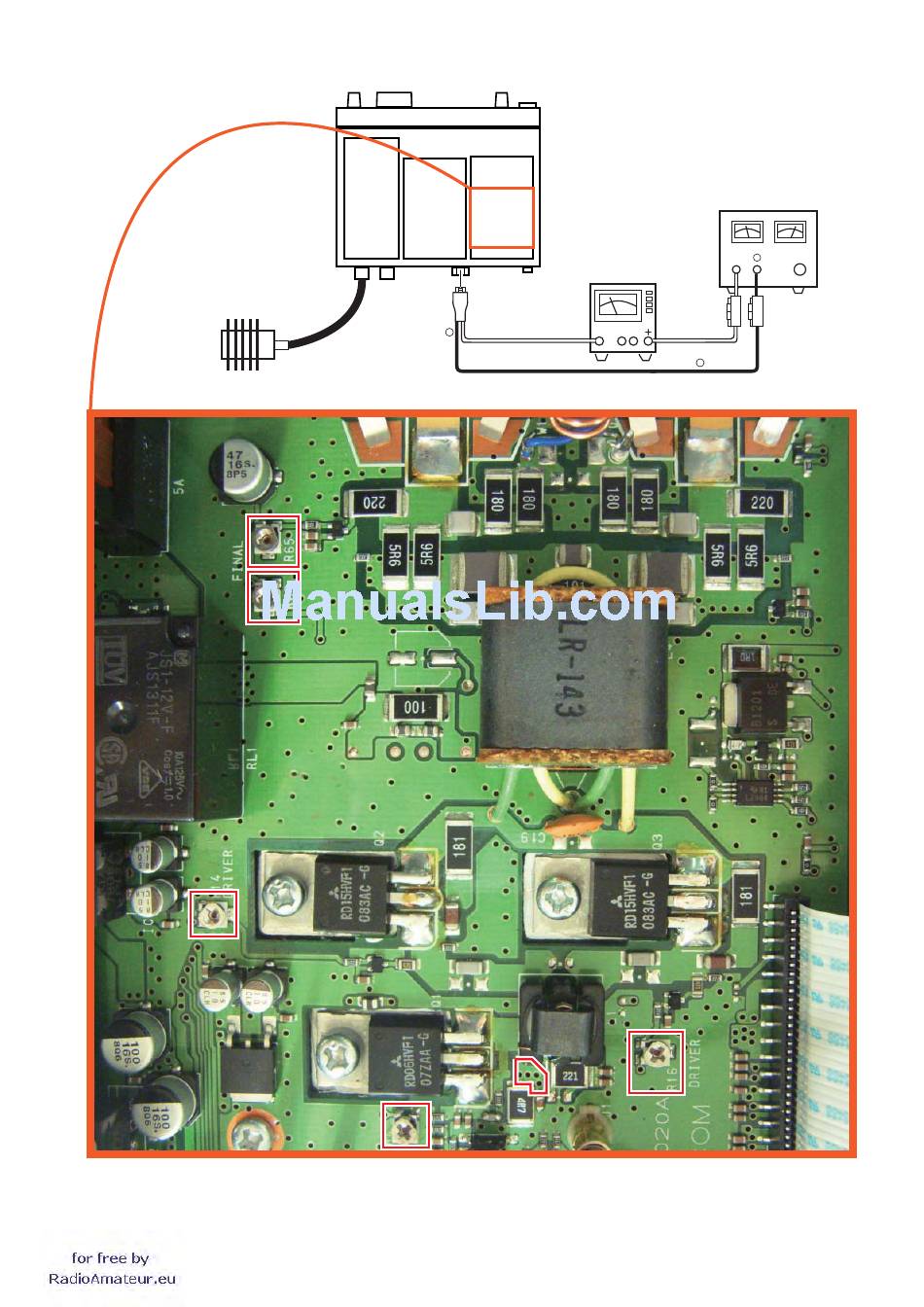

<Viewing from the TOP side>
CTRL
UNIT
[ANT1]
DUMMY LOAD
(50 Ω/120 W)
Supplied DC cable
R65 R65
IDLING (FINAL AMP) IDLING (FINAL AMP)
R67 R67
IDLING (FINAL AMP) IDLING (FINAL AMP)
R14 R14
IDLING (DRIVER) IDLING (DRIVER)
R4 R4
IDLING (PRE-DRIVER) IDLING (PRE-DRIVER)
FILTER PA
UNIT UNIT
[DC13.8V]
Black −
⊕
Red
CP1 CP1
IDLING (PRE-DRIVER) IDLING (PRE-DRIVER)
(CHECK POINT) (CHECK POINT)
4 - 7
DC power supply
(13.8 V/30 A)
−
⊕
AMMETER
(0.1–30 A)
− ⊕
Red
−
Black
R16 R16
IDLING (DRIVER) IDLING (DRIVER)
Fuses
30 A
L
L
