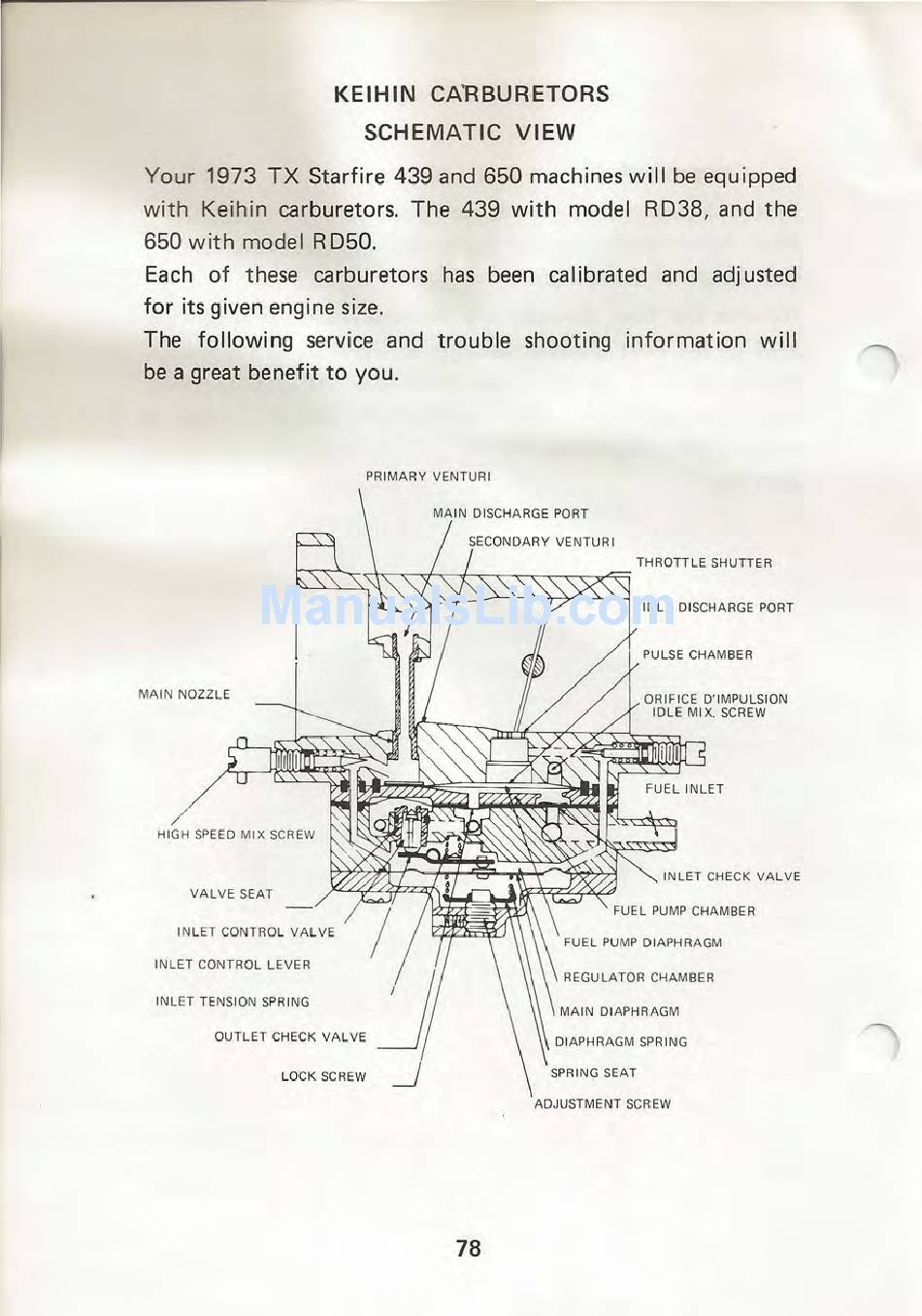

KE IH IN CA'RBURET ORS
SCHEMATIC VIEW
Your 1973 TX Starfire 439 and 650 machines will be equipped
with Ke ihin carburetors. The 439 with model RD38, and the
650 wit h model R D50.
Each of t hese carburetors has been calibrated and adjusted
for its given engine size.
The following service and trouble shooting information will
be a great benefit to you.
MAIN NOZZL E
/
H IGH SPEED MIX SCREW
VALVE SEAT
INLET CON T ROL VA L VE
INLE T CON T ROL LE V ER
INLET T ENS ION SPRI NG
OUTLET CHECK VA L VE
LOCK SCR EW
PRI MARY VEN T UR I
_)
78
IDLE DISCHAR GE PO RT
PULSE CHAM BER
~
FU EL PU MP D IAPH RAGM
REGU LA TOR CHAMB ER
MA IN DIAPHRAGM
DI A PHR AGM SPRI NG
ADJUST MENT SCREW
