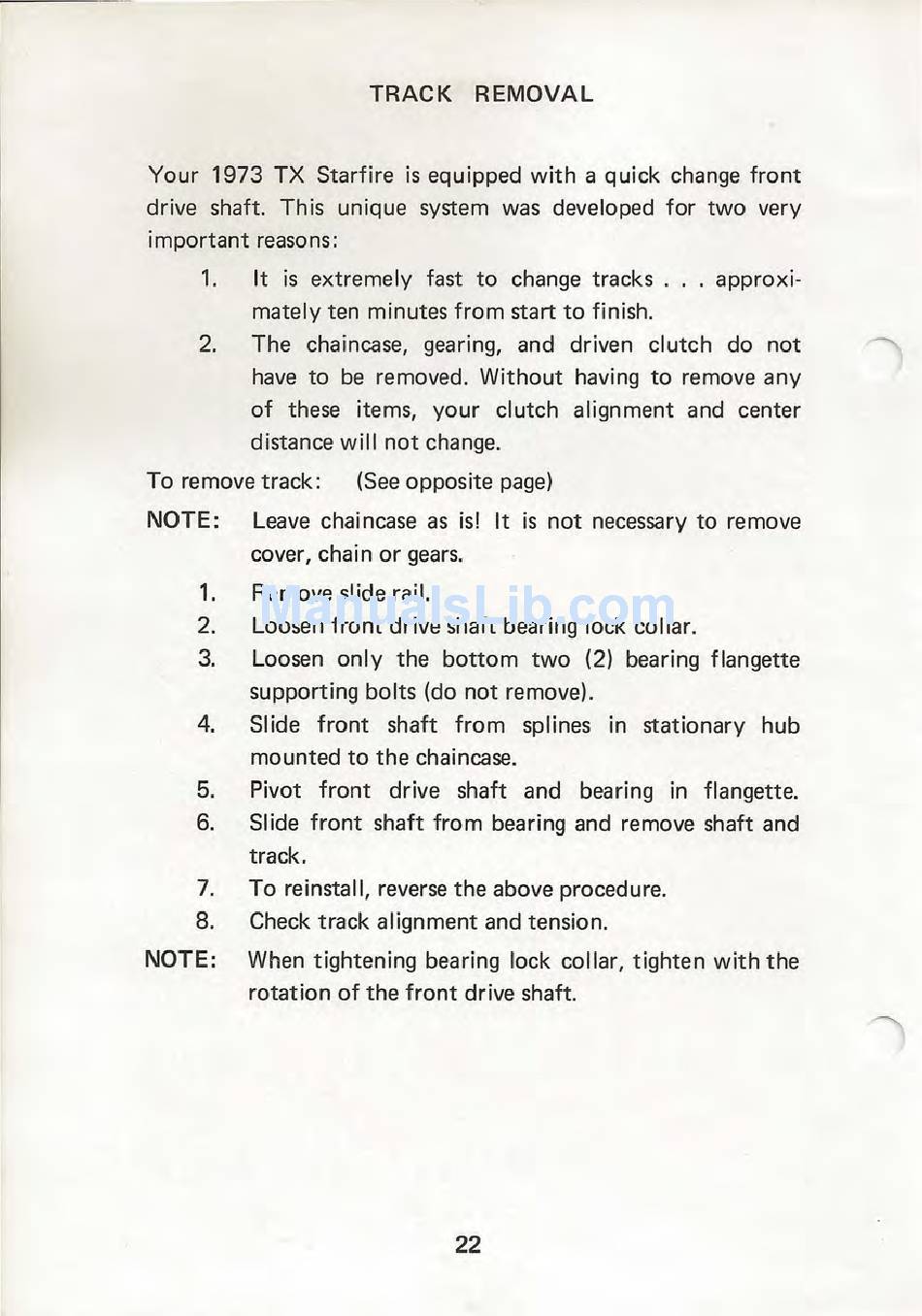

TRACK REMOVAL
Your 1973 TX Starfire is equipped with a quick change front
drive shaft. This unique system was developed for two very
important reasons:
1. It is extremely fast to change tracks ... approxi-
mately ten minutes from start to finish.
2. The chaincase, gearing, and driven clutch do not
have to be removed. Without having to remove any
of these items, your clutch alignment and center
distance will not change.
To remove track: (See opposite page)
NOTE:
Leave chaincase as is! It is not necessary to remove
cover, chain or gears.
1. Remove slide rail.
2. Loosen front drive shaft bearing lock collar.
3. Loosen only the bottom two (2) bearing flangette
supporting bolts (do not remove).
4. Slide front shaft from splines in stationary hub
mounted to the chaincase.
5. Pivot front drive shaft and bearing in flangette.
6. Slide front shaft from bearing and remove shaft and
track .
7. To reinstall, reverse the above procedure.
8. Check track alignment and tension.
NOTE:
When tightening bearing lock collar, tighten with the
rotation of the front drive shaft.
22
