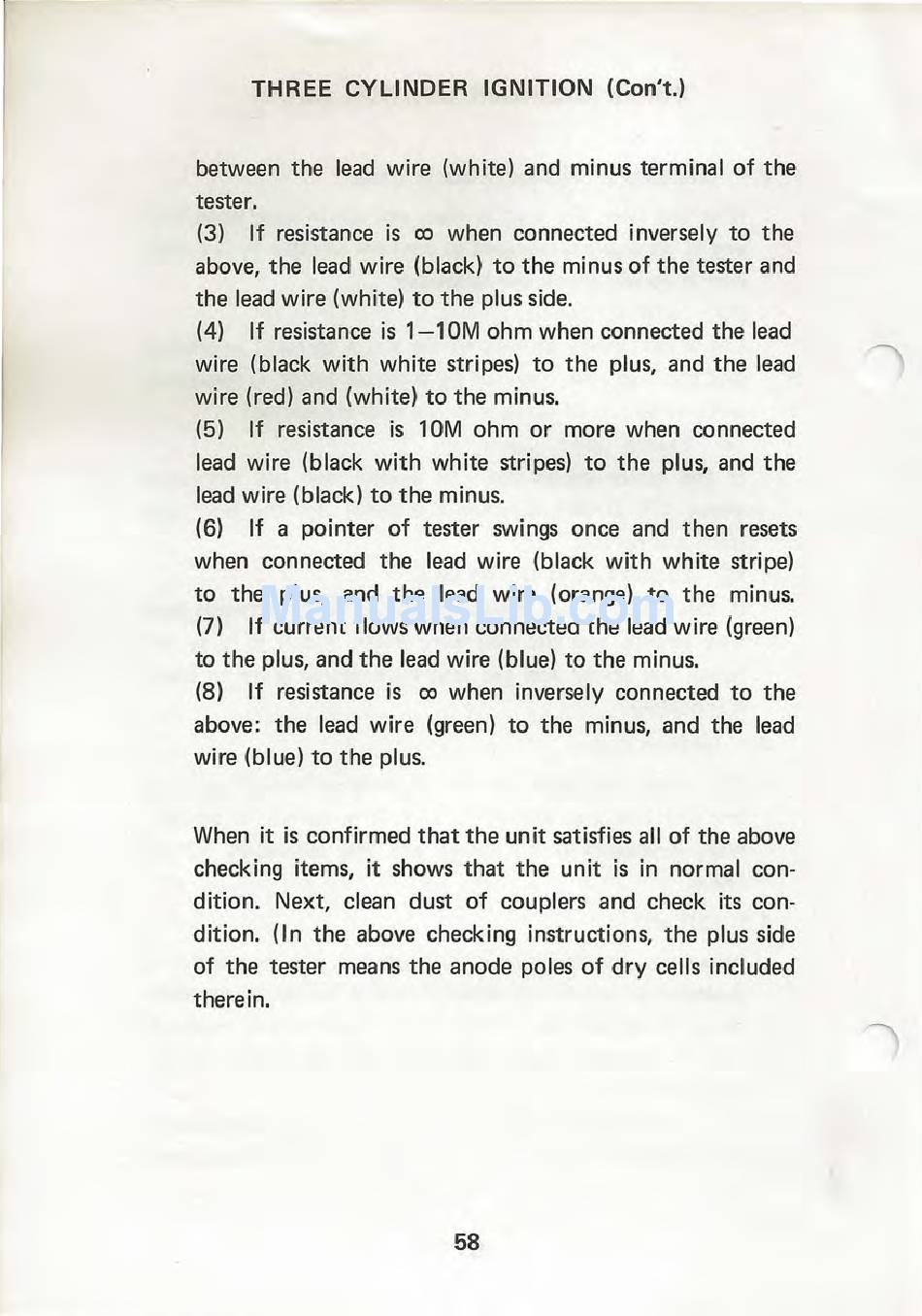

THREE CYLINDER IGNITION (Con't.)
between the lead wire (white) and minus terminal of the
tester.
(3) If resistance is co when connected inversely to the
above, the lead wire (black) to the minus of the tester and
the lead wire (white) to the plus side.
( 4) If resistance is 1-1OM ohm when connected the lead
wire (black with white stripes) to the plus, and the lead
wire (red) and (white) to the minus.
(5) If resistance is 10M ohm or more when connected
lead wire (black with white stripes) to the plus, and the
lead wire (black) to the minus.
(6) If a pointer of tester swings once and then resets
when connected the lead wire (black with white stripe)
to the plus, and the lead wire (orange) to the minus.
(7) If current f lows when connected the lead wire (green)
to the plus, and the lead wire (blue) to the minus.
(8) If resistance is oo when inversely connected to the
above: the lead wire (green) to the minus, and the lead
wire (blue) to the plus.
When it is confirmed that the unit satisfies all of the above
checking items, it shows that the unit is in normal con-
dition. Next, clean dust of couplers and check its con-
dition. (In the above checking instructions, the plus side
of the tester means the anode poles of dry cells included
therein.
