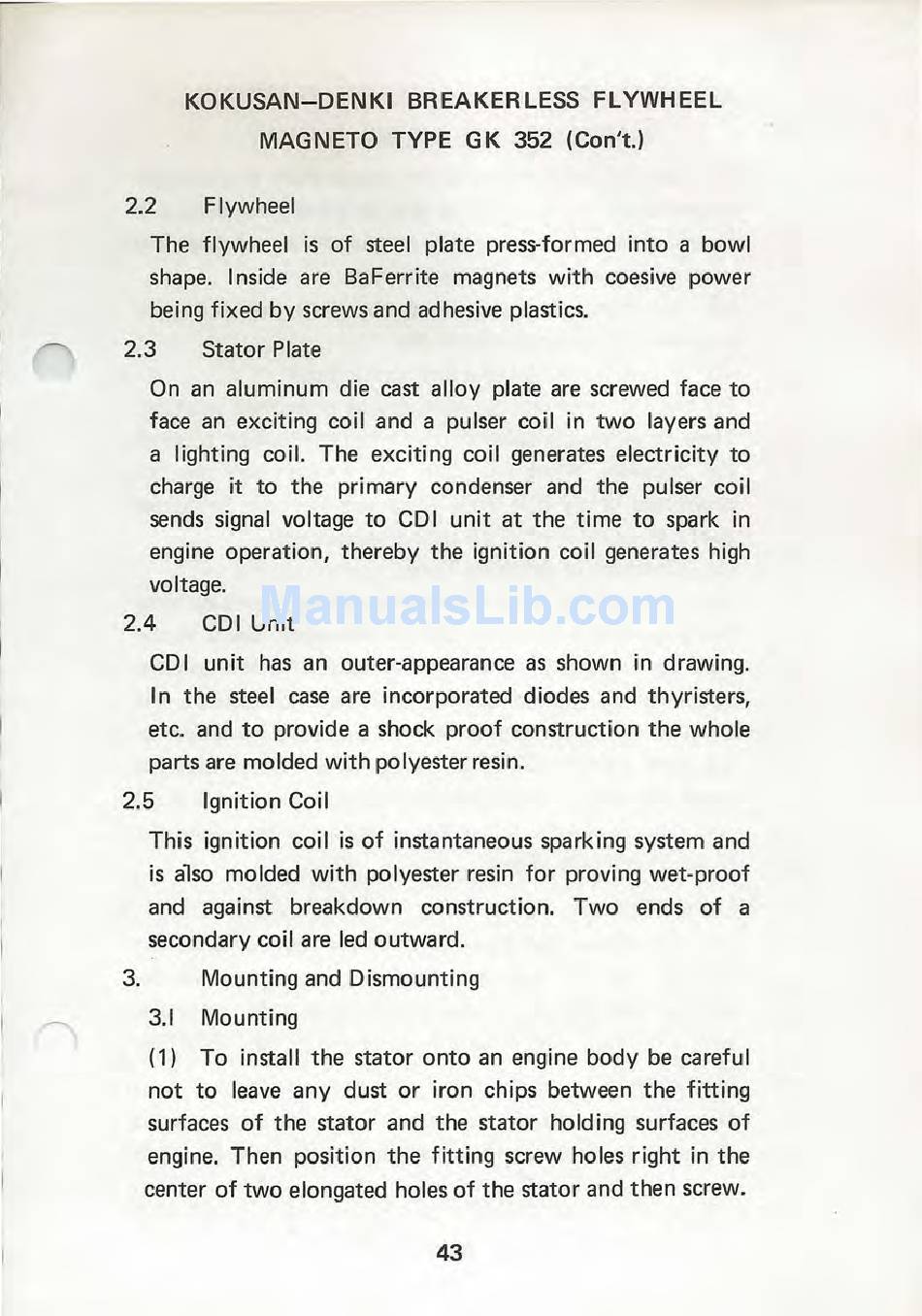

KOKUSAN-DENKI BREAKERLESS FLYWHEEL
MAGNETO TYPE GK 352 (Con't.)
2.2 Flywheel
The flywheel is of steel plate press-formed into a bowl
shape. Inside are BaFerrite magnets with coesive power
being fixed by screws and adhesive plastics.
2.3 Stator Plate
On an aluminum die cast alloy plate are screwed face to
face an exciting coil and a pulser coil in two layers and
a lighting coil. The exciting coil generates electricity to
charge it to the primary condenser and the pulser coil
sends signal voltage to CDI unit at the time to spark in
engine operation, thereby the ignition coil generates high
voltage.
2.4 CDI Unit
CDI unit has an outer-appearance as shown in drawing.
In the steel case are incorporated diodes and thyristers,
etc. and to provide a shock proof construction the whole
parts are molded with polyester resin.
2.5 Ignition Coil
3.
This ignition coil is of instantaneous sparking system and
is also molded with polyester resin for proving wet-proof
and against breakdown construction. Two ends of a
secondary coil are led outward .
Mounting and Dismounting
3.1 Mounting
(1)
To install the stator onto an engine body be careful
not to leave any dust or iron chips between the fitting
surfaces of the stator and the stator holding surfaces of
engine. Then position the fitting screw holes right in the
center of two elongated holes of the stator and then screw.
