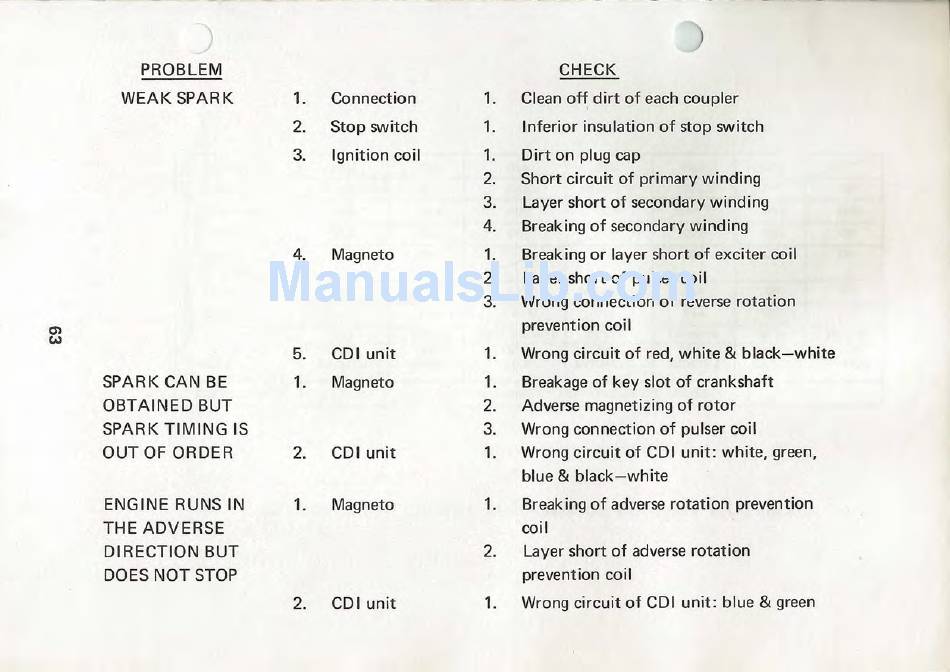

PROBLEM CHECK
WEAK SPARK 1. Connection 1. Clean
o~
dirt of each coupler
2.
Stop switch 1. Inferior insulation of stop switch
3. Ignition coil 1. Dirt on plug cap
2.
Short circuit of primary winding
3. Layer short of secondary winding
4.
Breaking of secondary winding
4.
Magneto 1. Breaking or layer short of exciter coil
2.
Layer short of pulser coil
3. Wrong connection of reverse rotation
0')
prevention coil
w
5. CDI unit 1. Wrong circuit of red, white
&
black-white
SPARK CAN BE 1. Magneto 1. Breakage of key slot of crankshaft
OBTAINED BUT
2.
Adverse magnetizing of rotor
SPARK TIMING IS 3. Wrong connection of pulser coi l
OUT OF ORDER
2.
CDI unit
1. Wrong circuit of CDI unit: white, green,
blue & black- white
ENGINE RUNS IN 1. Magneto
1. Breaking of adverse rotation prevention
THE ADVERSE coil
DIRECTION BUT
2.
Layer short of adverse rotation
DOES NOT STOP
prevention coil
2.
CDI unit 1.
Wrong circuit of CDI unit: blue & green
