Using a DHLC/DLC Card

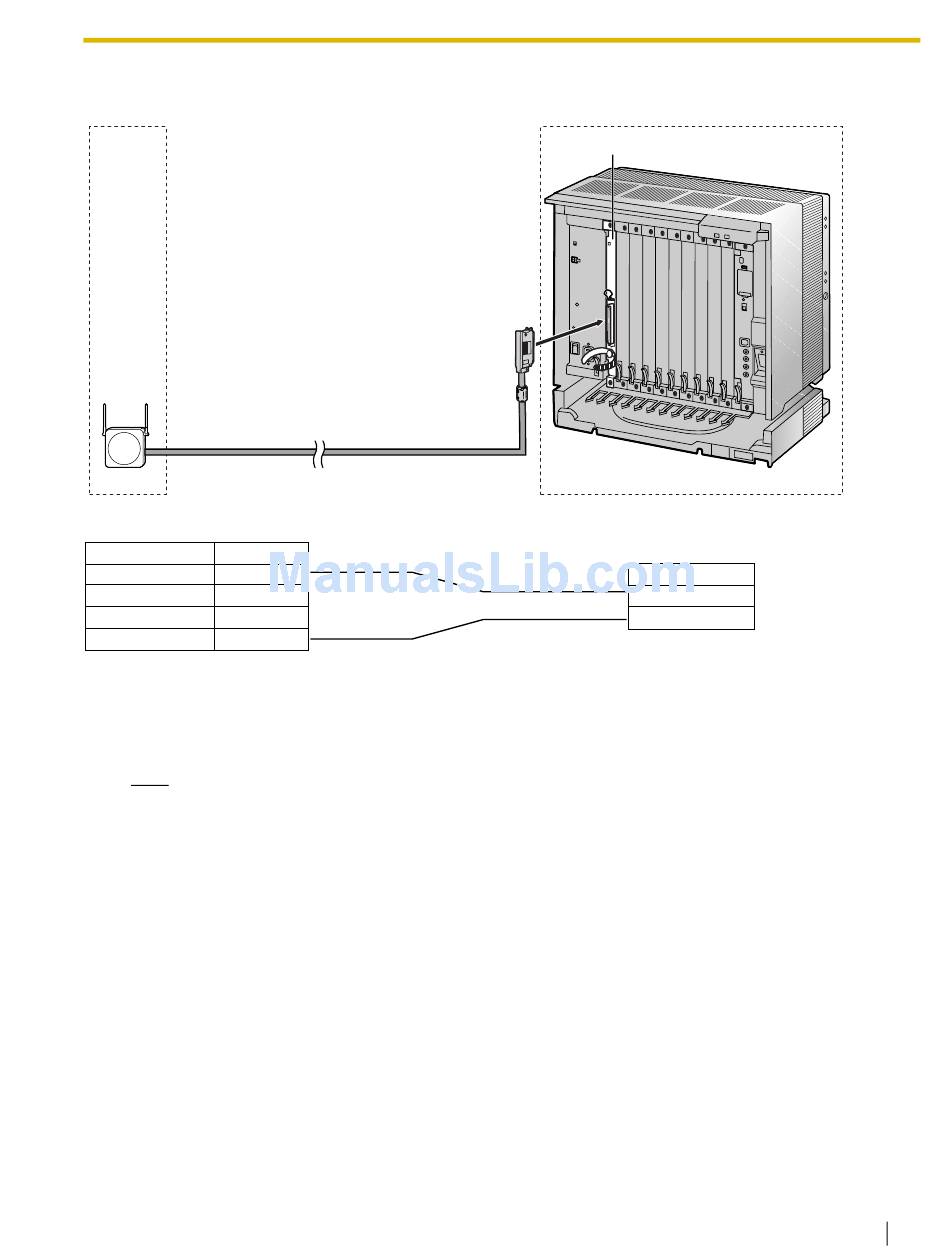

Refer to the following example to connect a CS to the Hybrid IP-PBX.
Cable
26 AWG:
24 AWG:
22 AWG:
CAT 5:
CS (RJ11)
Signal Name Pin No.
D1 1
2
3
4
D2
Accessory and User-supplied Items for the CS
Accessory (included): Screws × 2, Washers × 2
User-supplied (not included): RJ11 connector
Note
For details about DHLC card or DLC card, refer to "2.5.2 DHLC8 Card", "2.5.3 DLC8 Card", or "2.5.4
DLC16 Card".
Maximum Distance
Under 222 m (728 ft)
Under 347 m (1138 ft)
Under 500 m (1640 ft)
Under 347 m (1138 ft)
2.8 Connection of 2.4 GHz Portable Stations
DHLC8 Card
DHLC/DLC card
(Amphenol)
Signal Name
D1
D2
Installation Manual 135
