Chapter 14. LOW VOLTAGE
DIFFERENTIAL (LVDS) INTERFACE

14.1 Introduction

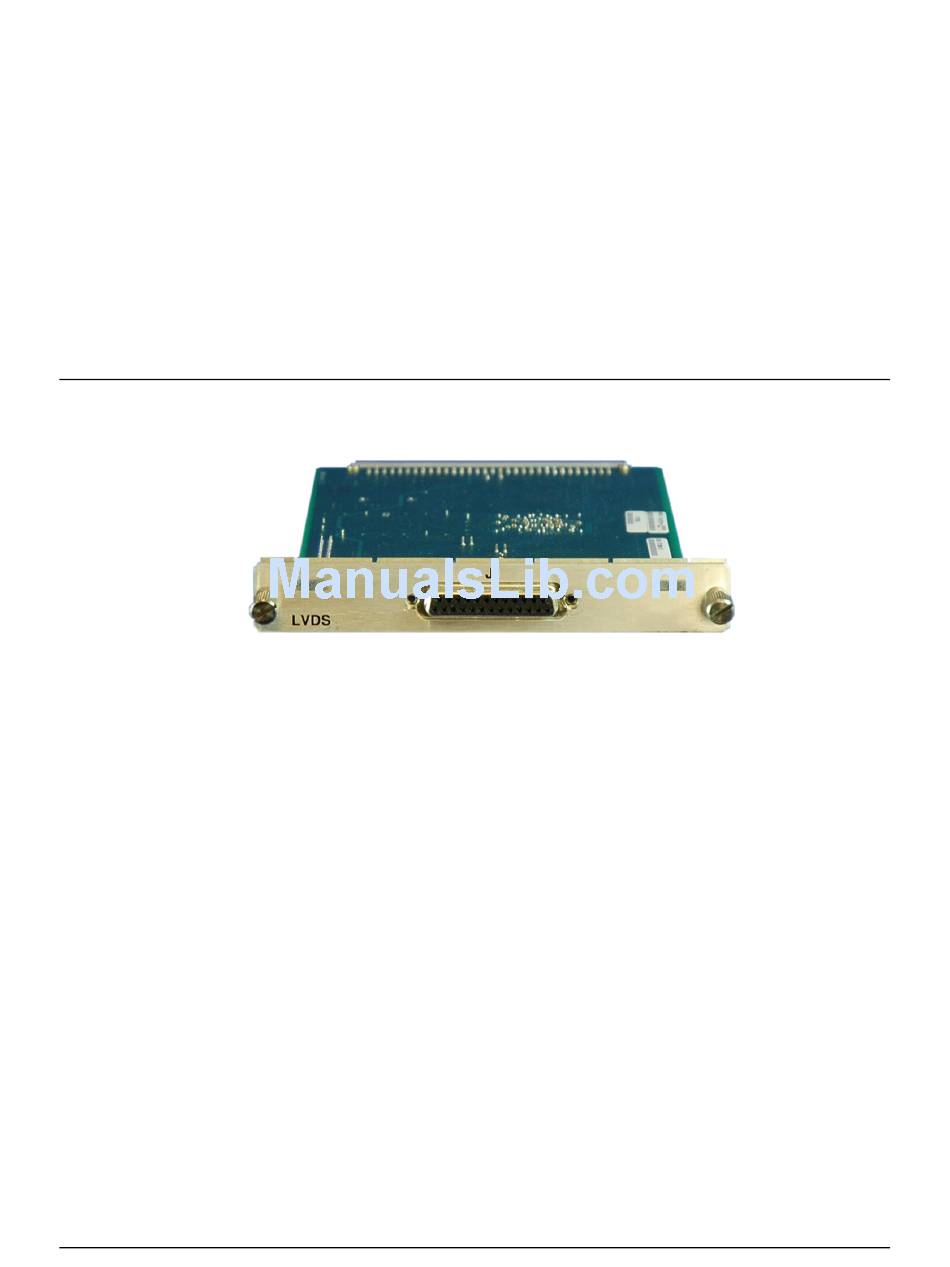

Figure 14-1. Low Voltage Differential (LVDS) Interface Module (PL/12272-1)

The Low Voltage Differential (LVDS) Interface Module (Figure 14-1) provides a physical and
electrical interface between the SLM-5650A's modulator or demodulator signal sources operating
with LVDS electrical characteristics. By convention, a modem is Data Communications Equipment
(DCE), where Tx data enters the data interface and Rx data exits it.
