— Opens the Input/Output Groups window, which allows
•
I/O Group settings
you to establish input and output groups. Drag two or more of the small boxes
representing inputs and outputs to one of the input or output Group boxes. Repeat as
desired. Click
to establish the groups.
Take

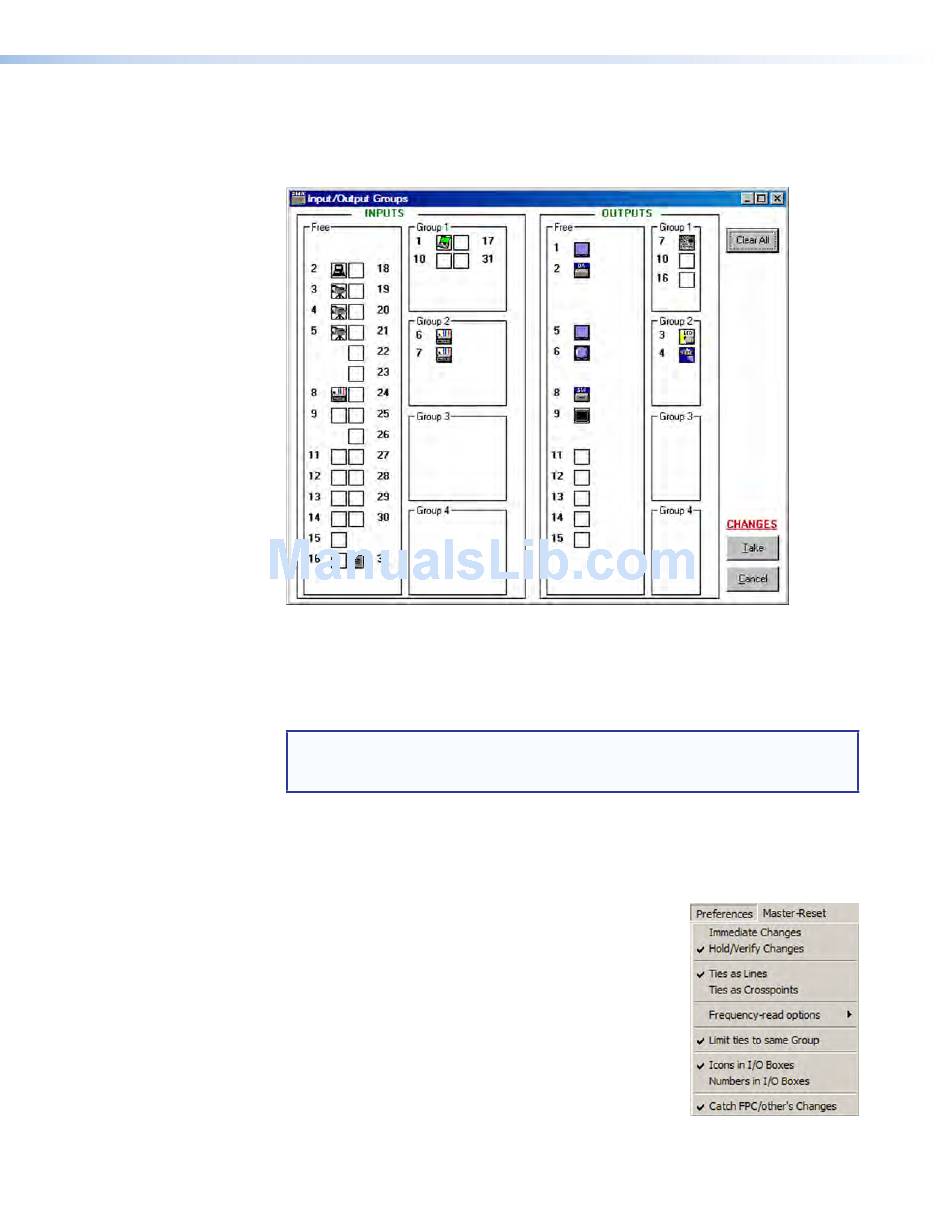

Figure 85.
Input/Output Groups Window
•
— Allows you to assign outputs to rooms or delete outputs
Room configuration
from rooms. Drag one or more of the small boxes representing outputs to one of the
Room boxes. Repeat as desired to form additional rooms. Click
rooms.
NOTE: A room is a subset of outputs that are logically related to each other, as
determined by the operator. The HDXP switcher supports up to 10 rooms, each
of which can consist of from 1 to 16 outputs.
•
— Displays a window on which you can select, initialize, and clear any or
Initialize
all of the following: ties, presets, groups, preset names, icon names, and icons.
Preferences menu
The
menu contains the following options:
Preferences
— Causes the configuration changes
•
Immediate changes
you make to take effect immediately, without the need to
click a Take button. When you select this option, the
and
buttons are removed from the Matrix window.
Cancel
•
Hold/Verify Changes
configuration changes until the
— Delays implementation of
button is pressed.
Take
HDXP Plus Series Switchers • Matrix Software
to establish the
Take
Take
87
