7

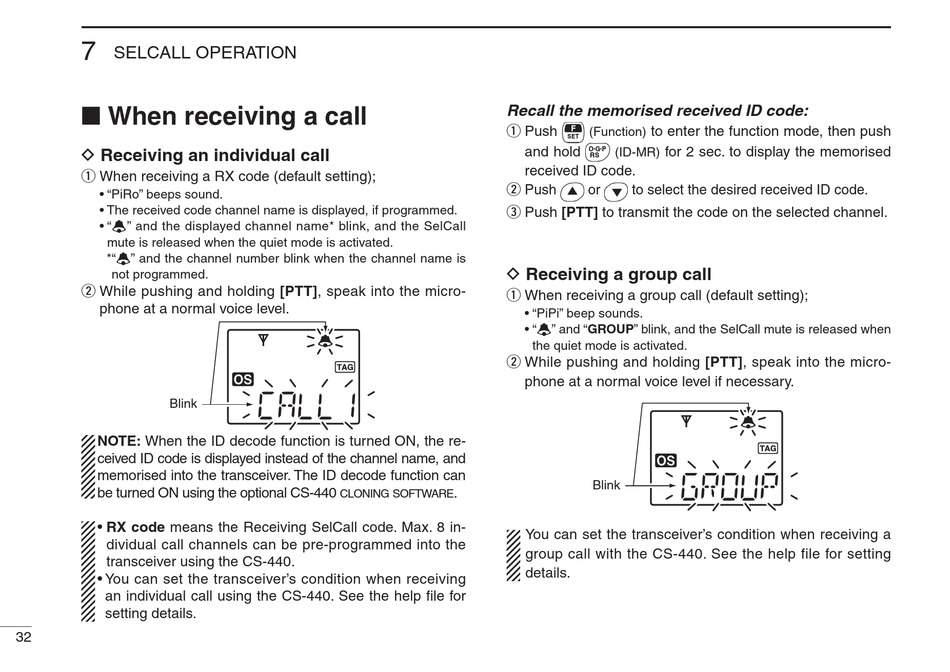

SELCALL OPERATION

■ When receiving a call

D Receiving an individual call
q When receiving a RX code (default setting);
• "PiRo" beeps sound.
• The received code channel name is displayed, if programmed.
• "ë" and the displayed channel name* blink, and the SelCall
mute is released when the quiet mode is activated.
* "ë" and the channel number blink when the channel name is
not programmed.
w While pushing and holding [PTT], speak into the micro-
phone at a normal voice level.
Blink
NOTE: When the ID decode function is turned ON, the re-
ceived ID code is displayed instead of the channel name, and
memorised into the transceiver. The ID decode function can
be turned ON using the optional CS-440
• RX code means the Receiving SelCall code. Max. 8 in-
dividual call channels can be pre-programmed into the
transceiver using the CS-440.
• You can set the transceiver's condition when receiving
an individual call using the CS-440. See the help fi le for
setting details.
32
Recall the memorised received ID code:
q Push
w Push
e Push [PTT] to transmit the code on the selected channel.
D Receiving a group call
q When receiving a group call (default setting);
w While pushing and holding [PTT], speak into the micro-
.
CLONING SOFTWARE
F
to enter the function mode, then push
(Function)
SET
and hold O G P for 2 sec. to display the memorised
(ID-MR)
RS
received ID code.
or to select the desired received ID code.
• "PiPi" beep sounds.
• "ë" and "GROUP" blink, and the SelCall mute is released when
the quiet mode is activated.
phone at a normal voice level if necessary.
Blink
You can set the transceiver's condition when receiving a
group call with the CS-440. See the help file for setting
details.
