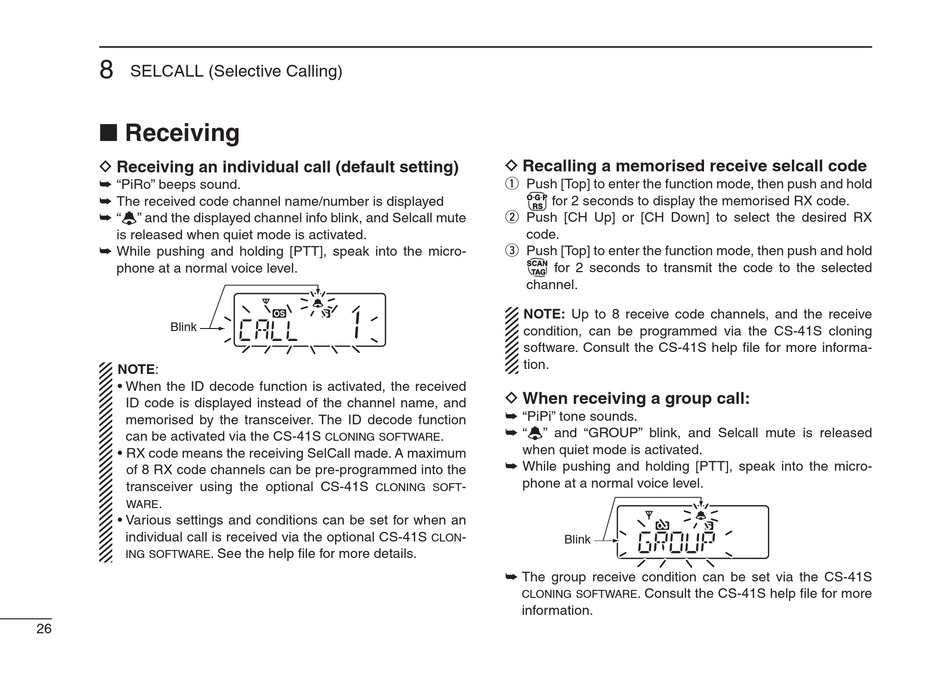

SELCALL (Selective Calling)
■

Receiving

D
Receiving an individual call (default setting)
➥
"PiRo" beeps sound.
➥
The received code channel name/number is displayed
➥ ë" and the displayed channel info blink, and Selcall mute
"
is released when quiet mode is activated.
➥
While pushing and holding [PTT], speak into the micro-
phone at a normal voice level.
Blink
NOTE:
• When the ID decode function is activated, the received
ID code is displayed instead of the channel name, and
memorised by the transceiver. The ID decode function
can be activated via the CS-41S
• RX code means the receiving SelCall made. A maximum
of 8 RX code channels can be pre-programmed into the
transceiver using the optional CS-41S
.
WARE
• Various settings and conditions can be set for when an
individual call is received via the optional CS-41S
. See the help fi le for more details.
ING SOFTWARE
26
.
CLONING SOFTWARE
-
CLONING SOFT
-
CLON
D
Recalling a memorised receive selcall code
q
Push [Top] to enter the function mode, then push and hold
for 2 seconds to display the memorised RX code.
w
Push [CH Up] or [CH Down] to select the desired RX
code.
e
Push [Top] to enter the function mode, then push and hold
for 2 seconds to transmit the code to the selected
channel.
NOTE: Up to 8 receive code channels, and the receive
condition, can be programmed via the CS-41S cloning
software. Consult the CS-41S help fi le for more informa-
tion.
D
When receiving a group call:
➥
"PiPi" tone sounds.
➥ ë" and "GROUP" blink, and Selcall mute is released
"
when quiet mode is activated.
➥
While pushing and holding [PTT], speak into the micro-
phone at a normal voice level.
Blink
➥ The group receive condition can be set via the CS-41S
. Consult the CS-41S help fi le for more
CLONING SOFTWARE
information.
