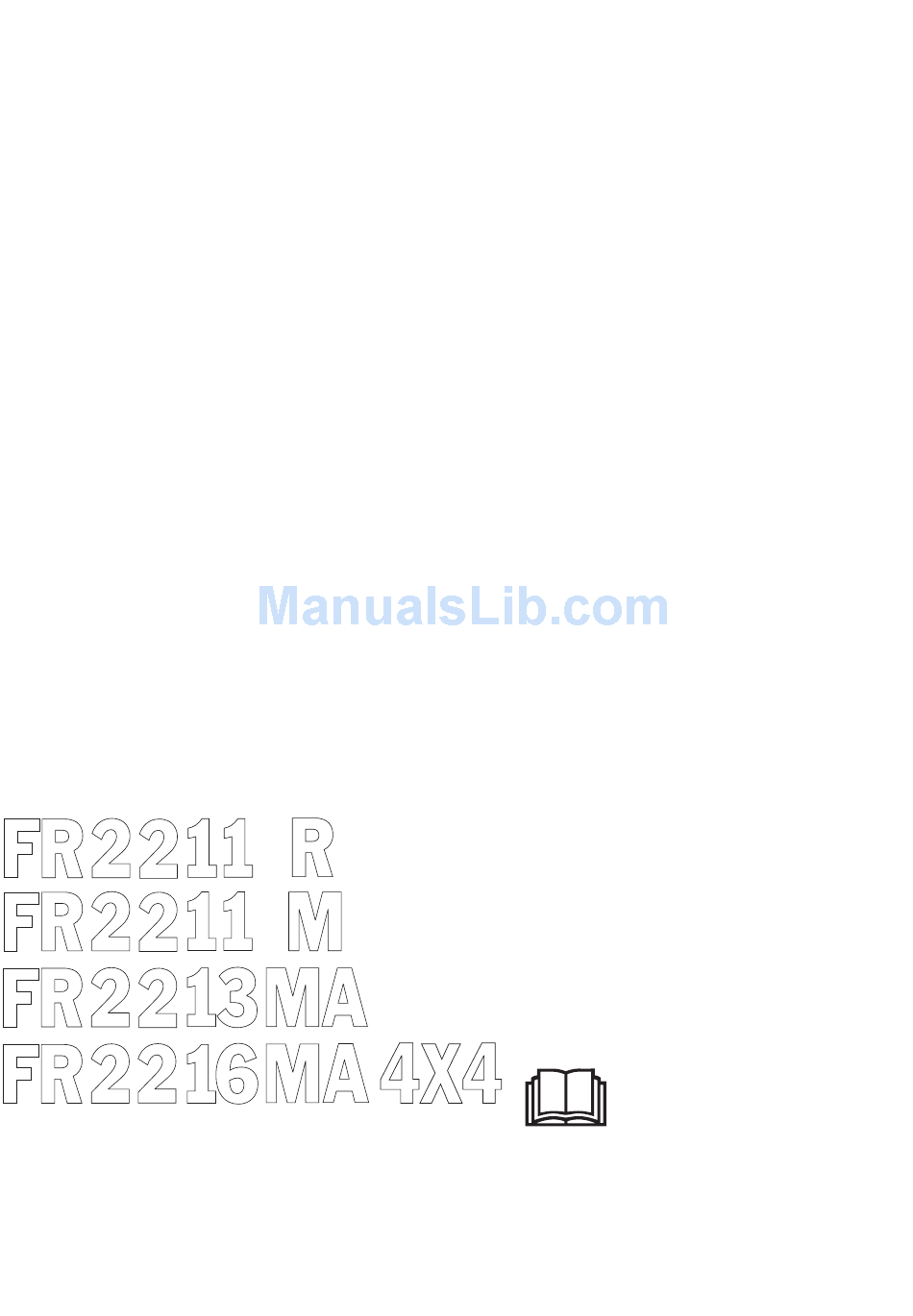

- Page 1 Oper ator ′ s manual Please read the oper ator’s manual carefully and make sure you understand the instructions before using the machine. FR 2211R FR 2211M FR 2213 MA FR2216 MA 4X4...
-
Page 2: Table Of Contents
CONTENTS Contents Check the safety system ..........Checking the engine’s cooling air intake ...... CONTENTS Checking and adjustment of the cutting unit’s ground Contents ..............pressure ............... INTR ODUCTION Checking the cutting unit’s parallelism ......Dear Customer , ............Adjusting the parallelism of the cutting unit ....Driving and transport on public roads ...... -
Page 3: Intr Oduction
Dear Customer , Thank y ou for choosing a Jonsered Frontrider. Jonsered Frontriders are built to a unique design with a front-mounted cutting unit and a patented rear-wheel steering system. FrontRiders are designed for maximum efficiency even in small or confined areas. The closely grouped controls and pedal-operated hydrostatic transmission also contribute to the performance of this machine. -
Page 4: Ser Vice Journal
Ser vice journal Pre-deliver y service 1 Charge the battery for 4 hours at max. 3 amp. 2 Fit steering wheel, seat and any optional equipment. 3 Check and adjust tyre pressure (60 Kpa, 0.6 bar, 9 PSI). 4 Adjust cutting unit: Adjust lift springs (effective weight of cutting unit should be 12-15kg / 26.5-33 lb). -
Page 5: Key To Symbols
KEY T O SYMBOLS Symbols Ignition These symbols are on the machine and in the instr uctions. Hydrostatic freewheel WARNING! Careless or incorrect use can result in serious or fatal injury to the operator or others. Warning: rotating parts. Keep hands and feet clear. - Page 6 KEY T O SYMBOLS The cutting dec k must be fitted at full speed. Starting instructions Check the engine’s oil level Check the hydrostat’s oil level Lift up the cutting unit Apply and lock the parking brake. If the engine is cold, use the choke Release the parking brake before driving Switch off the engine and take off the ignition cable before repairs or maintenance...
-
Page 7: Safety Instr Uctions
SAFETY INSTR UCTIONS Saf ety instructions • Stop the engine and prevent the engine from being started until you have cleaned the outlet channel. These instr uctions are for your safety. Read them carefully. • Look out for the ejector and do not direct it towards anyone. -
Page 8: Driving On Slopes
SAFETY INSTR UCTIONS Driving on slopes • Never allow children or other persons not trained in the use of the machine to use or service it. Local laws may regulate the age of the user. Dr iving on slopes is one of the operations where the risk of the driver losing control of the machine or of it overturning is the greatest;... -
Page 9: Children
SAFETY INSTR UCTIONS • Do not mow wet grass. It is slippery, and tyres can lose • Never fill the fuel tank indoors. their grip so that the machine skids. • Do not try to stabilize the machine by putting your foot on the ground. -
Page 10: Transport
SAFETY INSTR UCTIONS • Take care with battery maintenance. Explosive gases • Reduce the risk of fire by removing grass, leaves and form in the battery. Never perform maintenance on the other debris that may have fastened on the machine. battery while smoking or in the vicinity of open flames or Allow the machine to cool before putting it in storage. -
Page 11: What Is What
WHAT IS WHAT? 13 14 10 11 12 Location of the controls 1 Throttle control/choke control 8 Parking brake, FR2213 MA and FR2216MA 4X4 Clutch pedal, FR2211 R and FR2211 M 2 Ignition lock 9 Lock button for the parking brake, left side on FR 2213M, 3 Gear shift lever, FR2211 R and FR2211 M FR 2216MA 4X4, right-hand side on FR 2211. -
Page 12: Presentation
PRESENTATION Presentation Parking brake Congratulations on your choice of an excellent quality product FR 2213MA, FR 2216MA 4X4 that will give you great pleasure for many years. Four models The parking brake is applied as follows: equipped with engines from Briggs & Stratton are described in this operator’s manual. -
Page 13: Cutting Unit
PRESENTATION Cutting unit Seat FR 2211R has a cutting unit with rear ejection, i.e. clippings The seat has a jointed attachment on the front edge and can are thrown behind the cutting unit. be tipped forward. FR 2211 M, FR 2213 MA and FR 2216 MA 4X4 have a 3- The seat can also be adjusted lengthways. -
Page 14: Release Lever
PRESENTATION Release lever FR 2213 MA The release control must be pulled out in order for the machine to be moved when the engine is shutoff. Pull the controls to the end positions, do not use an intermediate position. • Pull out the control to disengage the drive system. -
Page 15: Driving
Driving Before starting • Release the brake pedal while holding the button pressed. The parking brake lock disengages automatically when the brake pedal is pressed. IMPORTANT INFORMATION The air intake grille in the engine cover behind the driver’s seat must not be blocked FR 2211R and FR 2211M have the brake pedal and release button on the right-hand side. -
Page 16: Starting The Engine With A Weak Battery
Driving 8 When the engine starts release the ignition key • Connect each end of the red cable to the POSITIVE pole immediately back to neutral position. (+) on each battery, exercise care not to short circuit any of the ends against the chassis. •... -
Page 17: Cutting Tips
Driving 3 For FR 2213 MA and FR 2216MA 4X4 grass is not too high and thick, the driving speed can be increased without noticeably depreciating the mowing Carefully press down one of the pedals until the required result. speed is obtained. Pedal (1) is used to drive forwards, and pedal (2) to drive backwards. -
Page 18: Stop The Engine
Driving Stop the engine Preferably allow the engine to idle for a minute to obtain normal working temperature before stopping it if it has been working hard. 1 Lift up the cutting unit by pulling the lever backwards to its locked position. -
Page 19: Maintenance
Maintenance Maintenance schedule The following is a list of the maintenance which should be conducted on the machine. For those points not described in this manual, visit an authorised service workshop. Daily maintenance At least once Maintenance Maintenance before starting a year interval in hours 100 200... -
Page 20: Cleaning
Maintenance Cleaning Right-hand fender Dismantle the foot-plate (1), screws (2 and 3), and lift off the Clean the machine directly after use. It is much easier to wash fender. off grass cuttings before they dry. Oily dirt can be removed using a cold degreasing agent. Spray on a thin layer. -
Page 21: Checking The Brake
Maintenance Check and adjust the steering as follows: The distance should be 0-1 mm (0-0.040') when the brake is not actuated. • Remove the frame plate by loosening the screws (2) and lift the frame plate by the rear edge. Adjusting the brake •... -
Page 22: Adjusting The Parking Brake, Fr 2216Ma 4X4
Maintenance Adjusting the parking brake, FR 2 Pull the choke wire casing to the far right and tighten the clamping screw. 2216MA 4X4 Check that the parking brake is adjusted correctly by placing the machine on a slope with the front and rear axles disengaged. -
Page 23: Replacement Of Fuel Filter
Maintenance 5 Replace the air filter cartridge, if clogged with dirt. Replace the filter as follows: 1 Open the engine cover. IMPORTANT INFORMATION 2 Move the hose clips away from the filter. Use a pair of flat pliers. Do not use compressed air to clean the paper filter. 3 Pull off the filter from the hose ends. -
Page 24: Ignition System
Maintenance Ignition system A blown fuse is indicated by a burnt connector. Pull the fuse from the holder when replacing. The engine is equipped with an electronic ignition system. The fuse is there to protect the electrical system. If it blows Only the spark plug requires maintenance. -
Page 25: Check The Safety System
Maintenance Check the safety system Start motor The machine is equipped with a safety system that prevents starting or driving under the following conditions. Ignition system The engine should only be possible to start when the cutting unit is in its raised position and the gear shift lever or hydrostat pedals are in the neutral position. -
Page 26: Checking The Engine's Cooling Air Intake
Maintenance Checking the engine’s cooling air 2 Place a set of bathroom scales under the cutting unit’s frame (front edge) so that it rests on the scales. If intake necessary a block can be placed between the frame and scales so that the support wheels do not bear any weight. Clean the air intake grille in the engine cover behind the driver’s seat. -
Page 27: Service Position For The Cutting Unit
Maintenance 3 Loosen the parallelism stay’s nuts, the inner nut has a left- 3 Loosen the spring on the drive belt’s belt idler by hand thread. loosening the handle. Place the handle on the frame arch. 4 Screw out (extend) the stay to raise the rear edge of the cover. -
Page 28: Checking The Blades
Maintenance The unit locks automatically in the vertical position. Damaged blades should be replaced when hitting obstacles that result in a breakdown. Let the servicing dealer judge whether the blade can be repaired/ground or must be discarded. WARNING! If the blades are cracked, whether caused by poor repair or other damage, they could break while being used. -
Page 29: Lubrication
Lubrication Checking the engine’s oil level. 2 Remove the dipstick. Remove the drain plug from the engine’s left side. Check the oil level in the engine when the Rider stands horizontal with the engine switched off. Open the engine cover. Loosen the dipstick, pull it up and wipe it off. -
Page 30: Lubricating The Belt Adjuster
Lubrication Lubricating the belt adjuster *Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality. The most important property is that the grease provides good The belt adjuster should be lubricated regularly using good protection against corrosion. quality molybdenum disulphide grease*. -
Page 31: Troubleshooting Schedule
Troubleshooting schedule Problem Procedure Engine does not start There is no fuel in the fuel tank Spark plug defective Faulty spark plug connections or interchanged cables Dirt in the carburettor or fuel line Starter motor does not turn over the engine Starter motor does not turn over the engine Battery flat Bad contact between the cable and battery... -
Page 32: Storage
Storage Winter storage Always use genuine parts. Annual inspection or tuning by an authorised service At the end of the season, or if the machine is going to stand workshop is a good way of getting the best out of your idle for more than 30 days, it should immediately be made machine the next season. -
Page 33: Technical Data
TECHNICAL DATA FR 2211 R FR 2211 M Dimensions Length without cutting unit, mm/ft 2010/6,58 2010/6,58 Length with cutting unit, mm/ft 2200/7,22 2200/7,22 Width without cutting unit, mm/ft 900/2,89 900/2,89 Width with cutting unit, mm/ft 1114/3,65 1114/3,65 Height, mm/ft 1070/3,52 1070/3,52 Operating weight with cutting deck, kg/lb 223/492... - Page 34 TECHNICAL DATA FR 2213 MA FR 2216MA 4X4 Dimensions Length without cutting unit, mm/ft 2010/6,58 2010/6,58 Length with cutting unit, mm/ft 2220/7,29 2220/7,29 Width without cutting unit, mm/ft 880/2,89 880/2,89 Width with cutting unit, mm/ft 1000/3,29 1000/3,29 Height, mm/ft 1070/3,52 1090/3.58 Operating weight with cutting deck, kg/lb 232/511...
-
Page 35: Ec-Declar Ation Of Conformity
EC-declaration of conformity (Applies to Europe only) Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel.: +46-36-146500, hereby declares that Jonsered FR 2211 R, FR 2211 M, FR 2213 MA and FR2216 MA 4X4 from 2010’s serial numbers and onwards (the year is clearly stated in plain text on the rating plate with subsequent serial number), complies with the requirements of the COUNCIL’S DIRECTIVE:... - Page 36 Original instructions 1153119-26 ´®z+U+|¶6W¨ ´®z+U+|¶6W¨ 2010-03-08...
