Hardware Installation

SY-6VBA 133

2-3.2 SDRAM Memory Module Installation

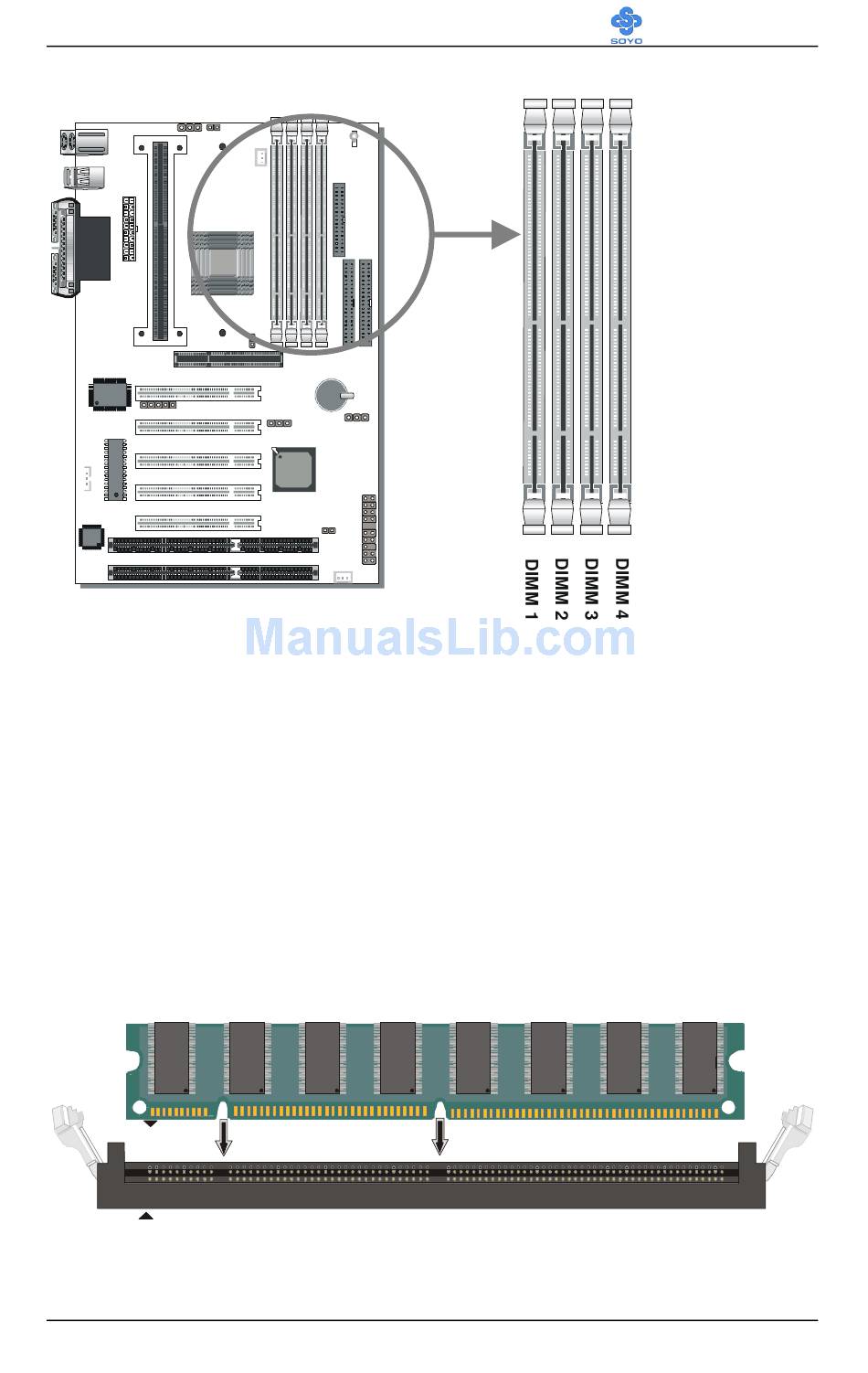

Your board comes with four DIMM sockets, providing support for up to

1.5GB of main memory using unbuffered and registered DIMM modules

from 8MB to 256/512MB. On this motherboard, DRAM speed can be set

independent from the CPU front side bus speed. Depending on the DRAM

clock speed setting in the BIOS setup (Chapter 3), appropriate memory

modules must be used. For 66MHz DRAM speed, use PC66 memory; for

100MHz DRAM speed, use PC100 memory; for 133MHz DRAM speed,

use PC133 memory.
